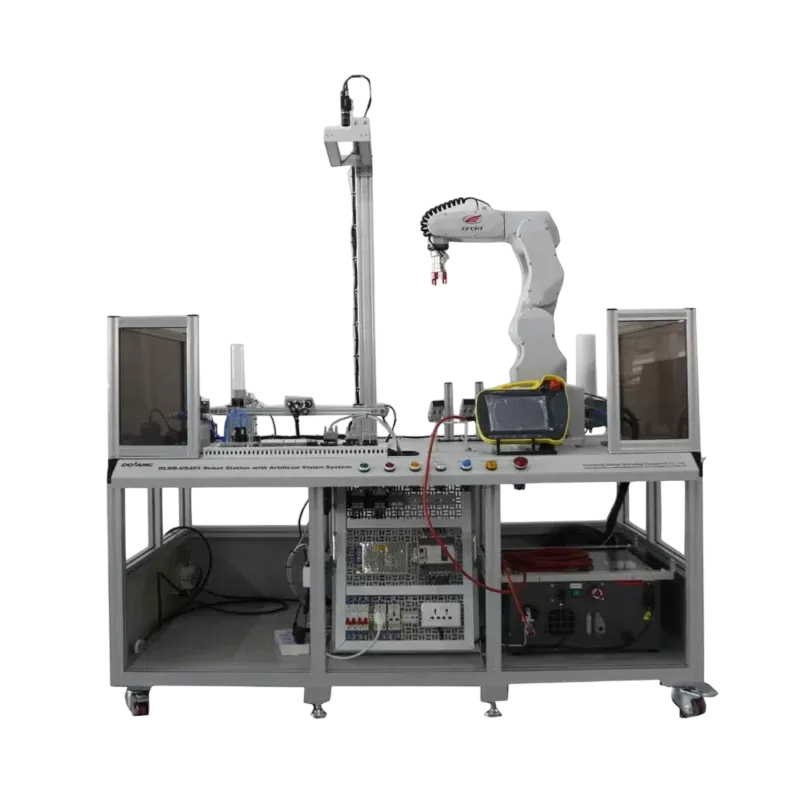

DLRB-VS401 Robot Vision Training System

Model: DLRB-VS401 Robot Vision Training System

1. AC power supply: single-phase AC220V±10% 50Hz; with automatic voltage regulator

2. Conveying motor parameters: DC24V 30W 140r/m

3. Belt parameters: flat belt width 38mm thickness 1mm circumference 1162mm white

4. Feeding cylinder stroke: 75mm

5. Pneumatic finger stroke: 6mm

6. Solenoid valve parameters: DC24V 2-position 5-way

7. Dimensions: Length × Width × Height 1700mm × 900mm × 1550mm

8. Application: The robot training system is suitable for vocational schools, technical schools, and university automation-related majors such as "Industrial Robots and Control Technology", "Automation Technology", "Machine Vision", and "Industrial Network Integration"

Inquire Now

The DLRB-VS401 robot vision system has the following functional modules: training platform, industrial six-axis robot unit, vision system unit, PLC controller unit, electrical control unit, and pneumatic control unit. The robot vision system can be flexibly combined and installed. It can meet the teaching requirements of electrical, mechatronics, industrial robotics, and intelligent manufacturing majors in vocational colleges. It can also be used in skill competitions and as a skill appraisal device for robot operators.

DLRB-VS401 robot vision system is a comprehensive robot vision system suitable for vocational schools, technical schools, and technical universities. The robot vision system has the following functional modules: training platform, industrial six-axis robot unit, vision system unit, PLC controller unit, electrical control unit, and pneumatic control unit. The modules can be flexibly combined, installed, and debugged according to the needs of training. It can be used for robot operator assessment and as a skill appraisal device for robot operators.
