DLRB-934 Robot Training System

Model: DLRB-934 Robot Training System

-Input power: single-phase three-wire AC220V ± 10% 50HZ,

-Working environment: Temperature -10 ℃ - + 40 ℃, relative humidity <85% (25 ℃), no condensation Altitude <4000m

-Power control: automatic air switch on/off power supply, overvoltage protection, under-voltage protection, over-current protection, leakage protection system.

-Output Power:

(1) Single-phase AC 220V ± 10% 50HZ; control output by start switch, and fuse protection.

(2) DC stabilized power supply: 24V / 1A,

- Dimensions: 1300mm × 750mm × 1700mm

Inquire Now

Details introduction

Equipment Overview

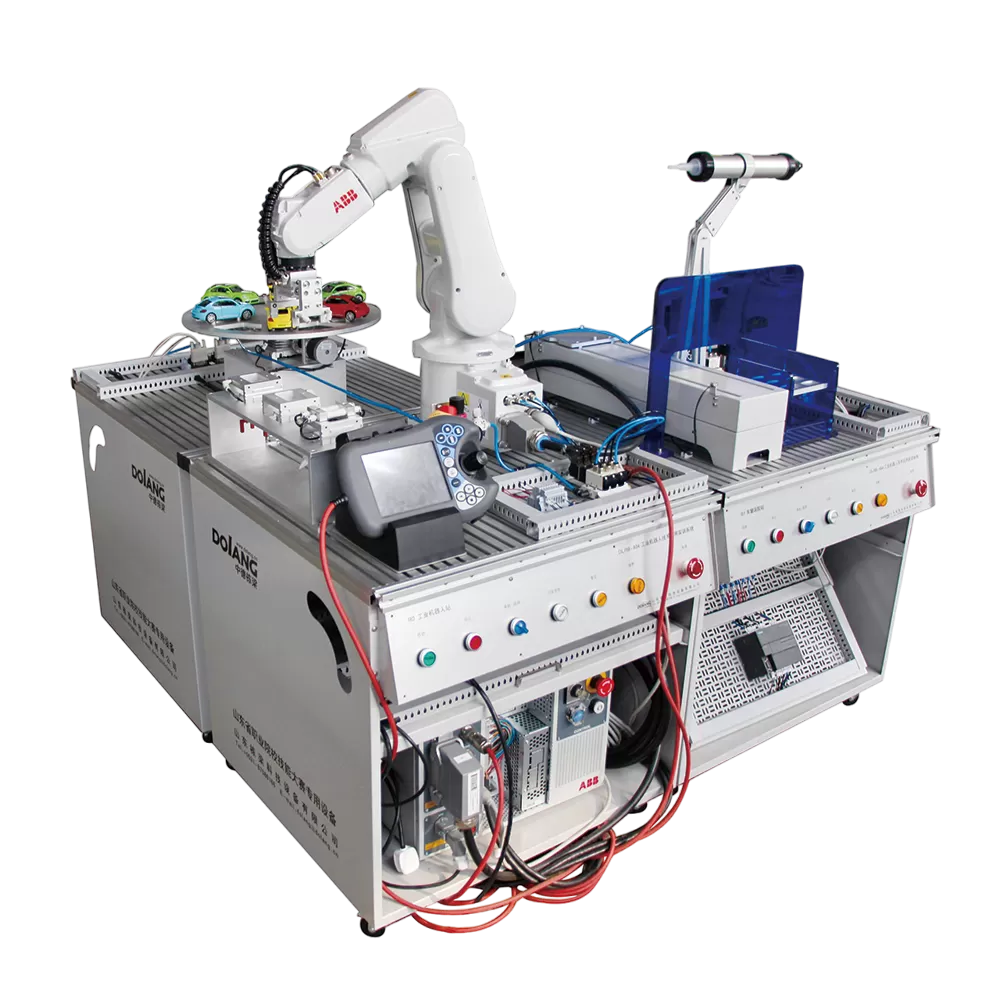

DLRB-934 Robot Training System include a six-axis industrial robot, training platform, assembly tasks model, glue task model, tire palletizing model, testing arrangement model, material storage tank, double sucker fixture, glue guns clamps, parallel fixture, jaw fixtures, console, assembly tables and consumable kits. Industrial robots and assembly can be combined with task model, glue task model, tire palletizing model and test arrangement model to accomplish the task respectively. Industrial robotics training system is one of the industry 4.0 training system used in TVET schools as mechatronics training equipment, if clients has special request for robot brand, we can integrated other brand like ABB robot, KUKA robot, Fanuc Robot, ect.

Components and functions

Robot module，Control cabinet，PLC module，HMI module, simulation software package,ect

Training Projects

- Industrial robot body and controller installation wiring;

-Industrial robots and initialization parameters recovery;

- Industrial robots and PLC IO communication;

-Industrial robots IO wiring;

- Industrial robots palletizing application installation and wiring;

-Application of industrial robots palletizing fixture selection and design;

-Industrial robots palletizing application programming and debugging;

-Industrial robots glue application installation and wiring;

-Application of industrial robots gluing fixture selection and design;
