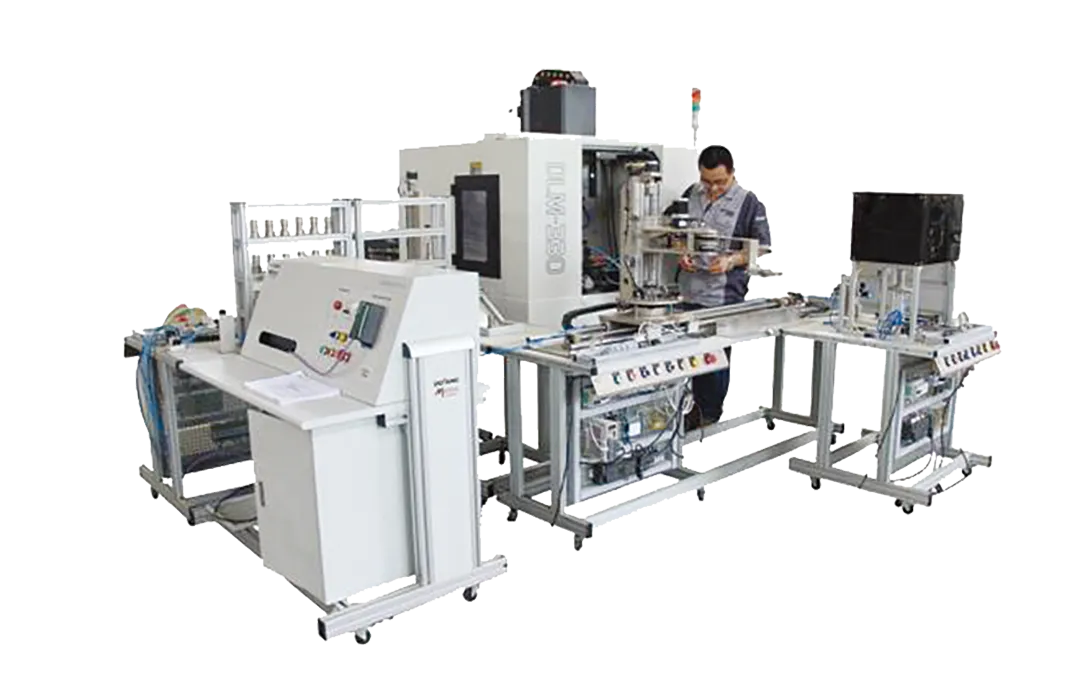

DLRB-600 Flexible Manufacturing System

Model: DLRB-600 Flexible Manufacturing System

-Input power: single-phase～220V±10% 50HZ

-Leakage protection: I△n≤30mA, t≤0.1S

-AC220V AC power supply

-24V DC power output

-Emergency stop button for accident

-Working environment: temperature -10℃～+40℃ relative humidity 35%～65% (25℃) altitude<4000M

-Total capacity of the device: ≤5kVA

-Operating compressed air: 5～6bar

-Single table size: 750mm×750mm×1620mm; table height is 810mm;

Optional type:

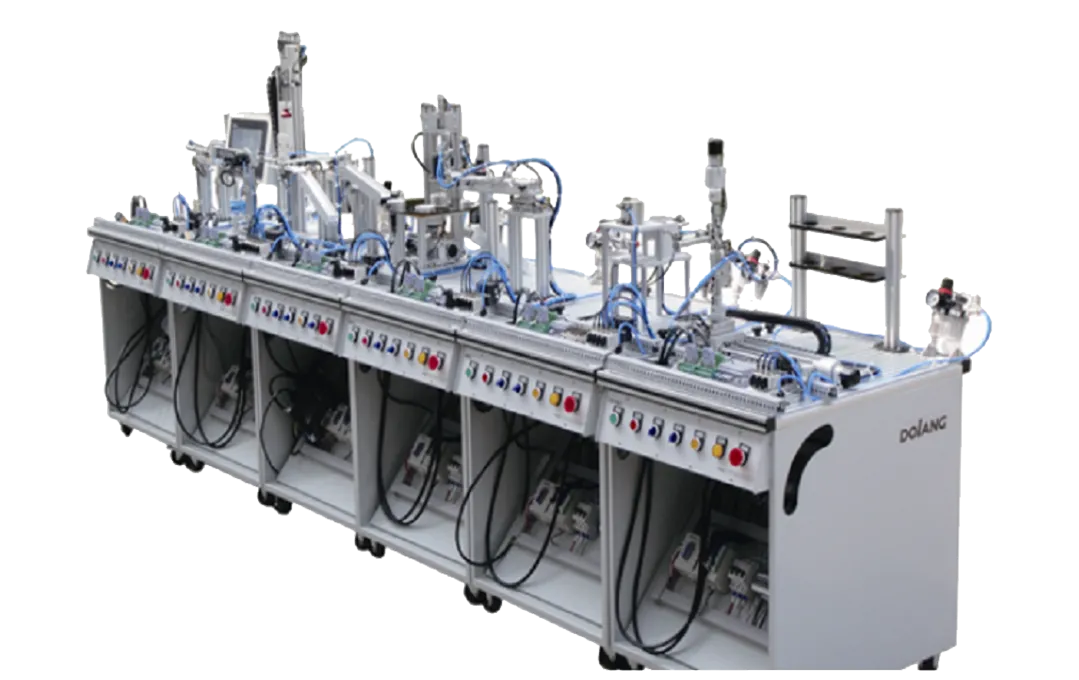

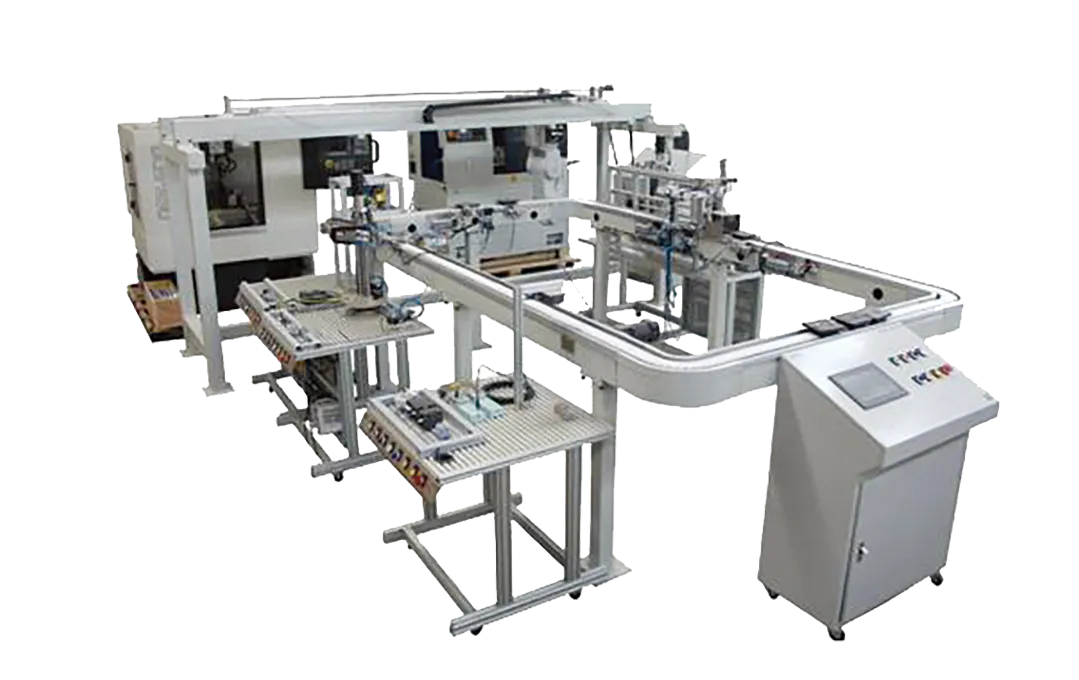

DLRB-1601 Flexible manufacture training system

DLRB-501 Flexible manufacture training system

DLRB-801 Flexible manufacture training system

Inquire Now

Details Introduction

Overview

Flexible manufacturing system is divided into seven work units: feeding unit, inspection unit, processing unit, assembly unit, robot unit, automated storage unit, and endless conveyor line. Each station of the training system is installed on a grooved aluminum plate, and each station can be easily connected together to form an automatic processing production line. The station is composed of various modular forms. The modules are easy to build, disassemble and maintain, and the workstations can be combined at will.

It is one of the industry 4.0 training system used in vocational schools to teach mechatronics as technical teaching equipment supplied by Educational Equipment Manufacturer.

Components and Functions

Robot module, Control cabinet, PLC module, HMI module, simulation software package, etc

Training Projects

-Practice the installation of CX-Programmer Omron software installation training;

-Complete CX-Programmer Omron software and hardware configuration training

-Complete CX-Programmer Omron software programming training

-Practice the MCGS software installation training;

-Practice the practical training of MCGS software;

-MCGS configuration training;

-Practice the application training of network information processing technology in the industry;

-Complete the network address setting training;

-Complete the magnetic sensor adjustment training
