DLRB-120 Industrial Robot Basic Training System

Model: DLRB-120 Industrial Robot Basic Training System

1. AC Power supply: Single phase AC220V ± 10%,60Hz;

2. Temperature: -5 ℃ ~ 44 ℃; Humidity: ≤ 91% (25 ℃)

3. Whole capacity: ≤ 1.5KVA

4. Air working pressure: 0.4 MPa to 0.6 MPa

5. Drive type: ABB industrial robot IRB 120, the maximum crawl weight 3KG, action radius:0.58m.

6. Dimension: 1250 * 778 * 1800mm (L * W * H)

7. Security measures: comply with national safety standards.

Inquire Now

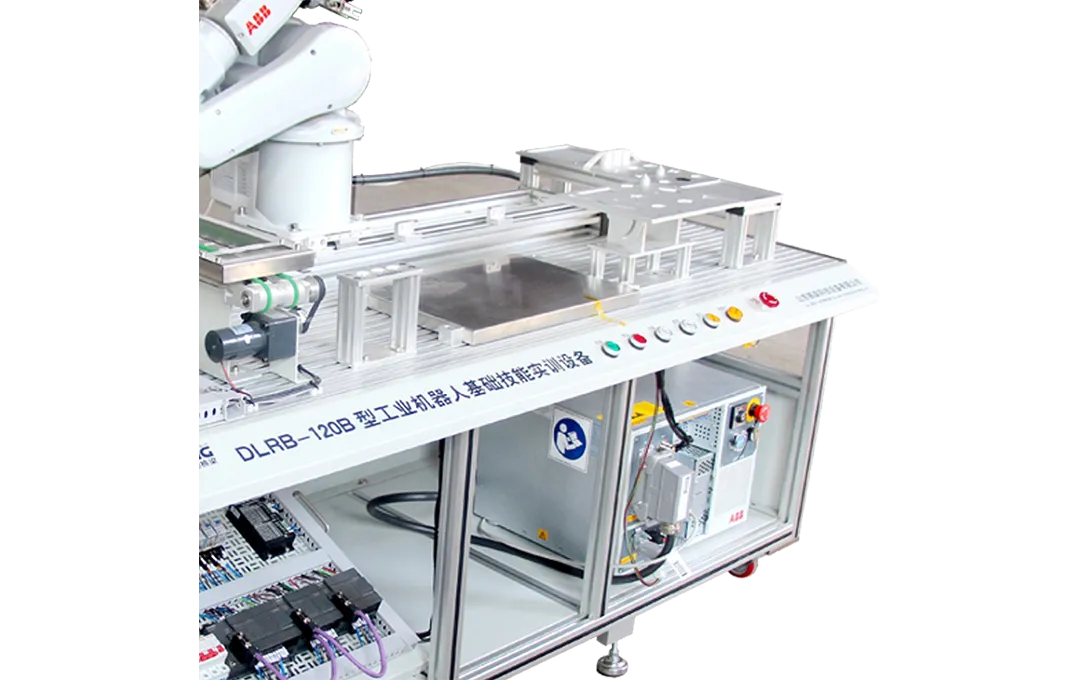

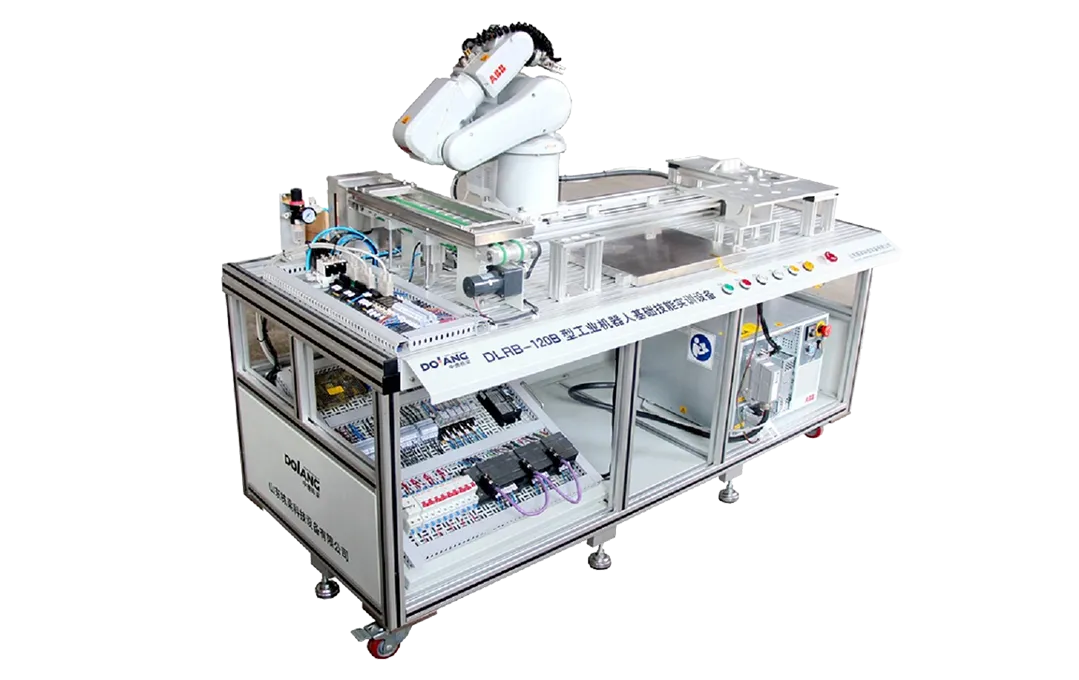

DLRB-120 Industrial Robot Basic Training System

Details Introduction

Overview

For the Industrial robot basic training system , Industry robot control system is designed by Dolang team, it can choose different popular robot brand, such as ABB robot, KUKA robot, yaskawa robot, efort robot, Fanuc robot, etc.

Dolang has 70 engineers team to support technical service and after sales service, they can add different application module based on demands from end users.

From the robot training equipment, students can know knowledge on industry robot programming and application in smart manufacturing filed.

It is widely used in industry 4.0, intelligent manufacturing and mechatronic filed.

Components and Functions

Robot module, PLC module, sensors , manual cylinder, and all related modules based on teaching demands, ect., 6-axes robot arm drive by step motor, main transmission parts using visual design, easy to control

Note: optional simulation software

Training Projects

-Sensor application

-Pneumatic control

-Debugging of robot

-Learn how to control robot

-Manual control experiment

-Learn PLC programming
