Robot Training Equipment

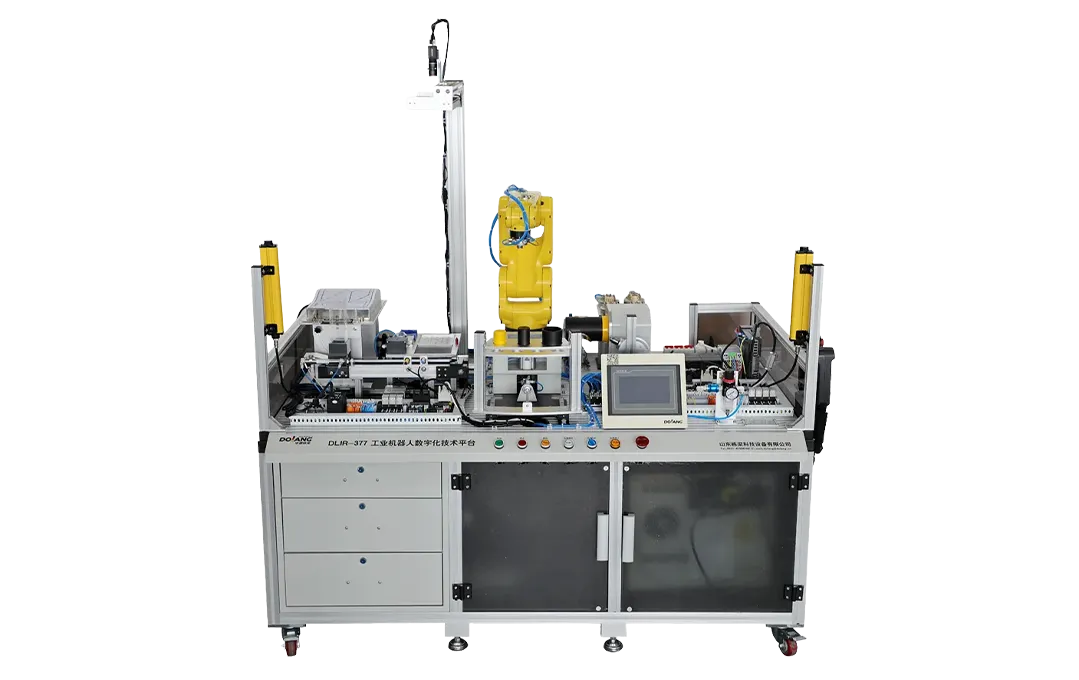

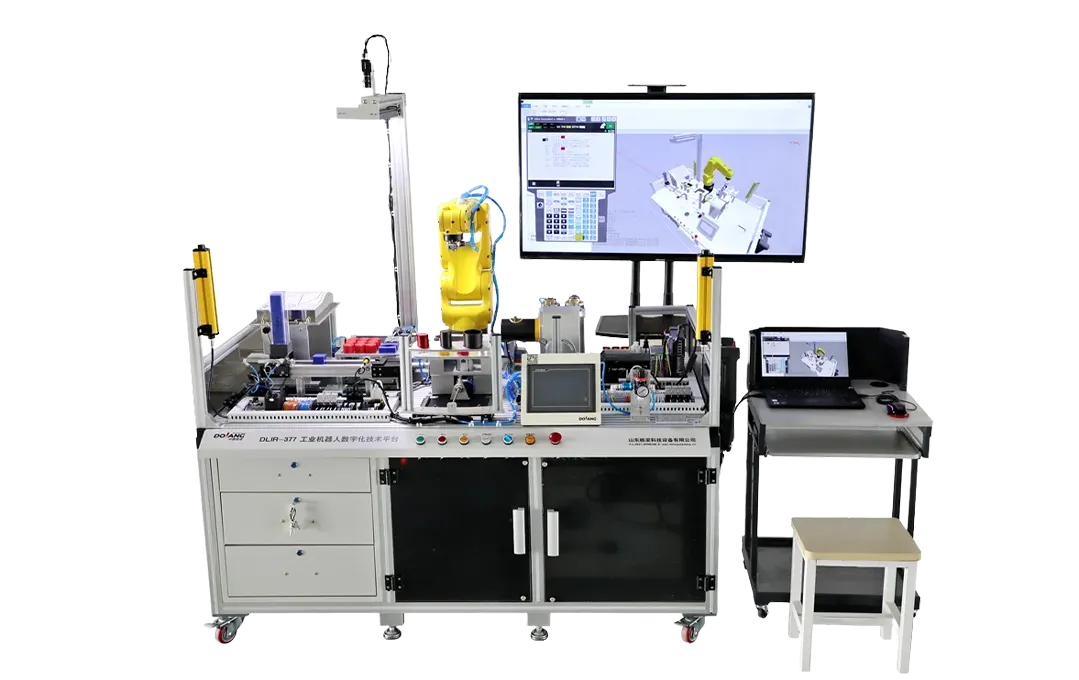

Model: DLIR-377 Industrial Robot Digital Technology Platform
1. Input power: single-phase three-wire AC220V±10% 50HZ,
2. PLC: Xinjie or Siemens; Touch screen: 7 inches
4. Mobile conveyor system (AGV): mobile accuracy ±5mm.
5. Six-joint industrial robot
Parameter: Axes: 6
Maximum range of motion: 628mm
Maximum load: 3kg
Repeat positioning accuracy: ±0.02mm
6. SCARA robotics: Axes: 4
Arm length: 400mm
Z axis travel: 150mm
Repeat positioning accuracy: X/Y axis ±0.01mm
Z-axis ±0.01mm
R-axis ±0.005°
Details Introduction
Overview
DLIR-377 robotics training equipment is a teaching equipment for 1+X "Industrial Robot Operation and Maintenance" and 1+X "Industrial Robot Application Programming" training.
The vocational education equipment consists of the following systems:
FANUC ER-4iA industrial robot, SIEMENS S7-1200PLC, Hikvision industrial vision system (2D), touch screen, RFID reading and writing module, basic operation assessment module, machining automation task unit, intelligent transfer-sorting-palletizing task unit, gift packaging task unit, welding task unit, grinding and polishing task unit, digital twin and industrial gateway, etc.
Available Professionals
- Technical School Major
0116 Mechanical equipment assembly and automatic control
0203 Installation and maintenance of electrical automation equipment
0127 Mechatronics technology
0208 Application and maintenance of industrial robots
- Secondary Vocational Education Major
660303 Industrial Robot Technology Application
710101 Electronic Information Technology
660302 Electrical Equipment Operation and Control
- Higher Vocational Education Specialty
460301 Mechatronics Technology
460306 Electrical Automation Technology
460305 Industrial Robotics
- Higher Vocational Education Undergraduate Major
260304 Robotics
260301 Mechanical and Electronic Engineering Technology
260305 Automation Technology and Application
260101 Mechanical Design Manufacturing and Automation
- Undergraduate majors of ordinary colleges and universities
080202 Mechanical Design, Manufacturing and Automation
080601 Electrical Engineering and Automation
080604T Electrical Engineering and Intelligent Control
080701 Electronic Information Engineering
080803T Robotics Engineering
Training Projects
- Installation of skills competition equipment, teach pendants, and end tools
- Setting of robot arm training equipment Parameters
- Operation mode and manual speed of robot training equipments, programming instructions, programs, fault diagnosis and maintenance
- Practical Training on Reading and Recognition of Electrical Drawings
- Pneumatic circuit takeover and electrical wiring
- Learning of detection switches, various sensors, pneumatic components, etc.municate with PLC
- Installation and application of PLC, RFID and touch screen
- Robot, touch screen, servo system and other systems com
- Practical training of various work tasks such as plane drawing and curved surface of robot arm training equipments
- China robot training equipment and visual communication training
- Industrial robot handling and palletizing, commemorative coin assembly, machine tool loading and unloading, grinding, welding tasks
- RFID reader communication application programming debugging
