DLIR-106 Industrial Robot Training Platform

Model: DLIR-106 Industrial Robot Training Platform

1. The operating environment of the robot should be below 1000m above sea level.

2. The working environment temperature is 0℃～45℃.

3. Humidity is 20%～80%RH, no condensation.

4. Workstation operating environment: places with less dust, dust, oily fume, and water, no flammable, corrosive liquids and gases.

5. The vibration or shock of the electric control cabinet is ≤0.5G, and the installation distance is ≥500 mm from the wall.

6. Places far away from large electrical noise sources (TIG welding devices, etc.).

7. The installation flatness of the robot base is less than 0.5mm.

8. Input power: AC220V 50Hz, AC380V 50Hz.

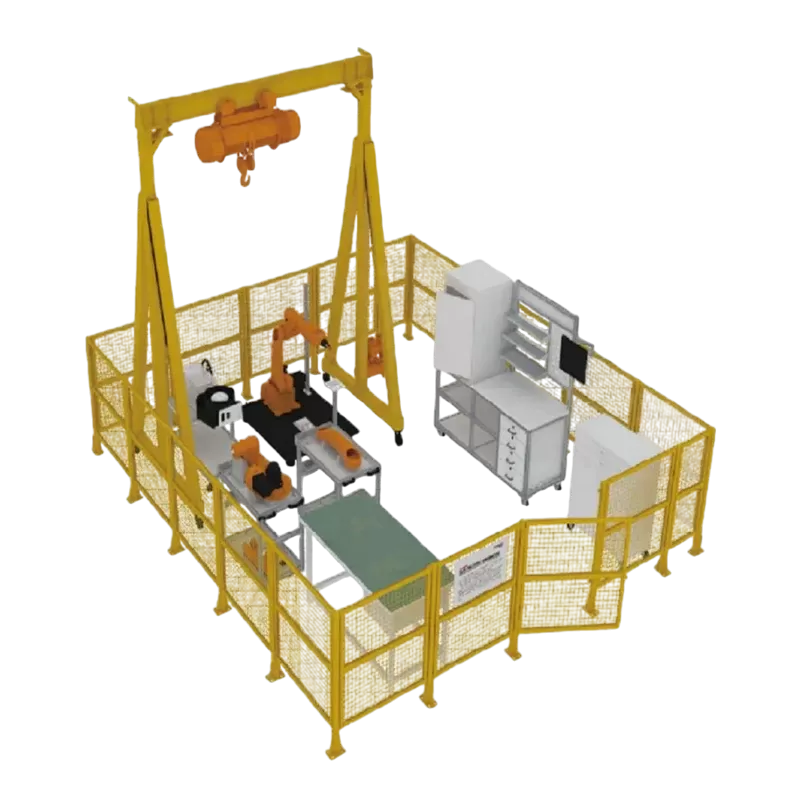

9. The installation area of the workstation: about 5.2m×5.4m×3.5m.

Inquire Now

DLIR-106 Industrial Robot Training Platform

Details introduction

Equipment Overview

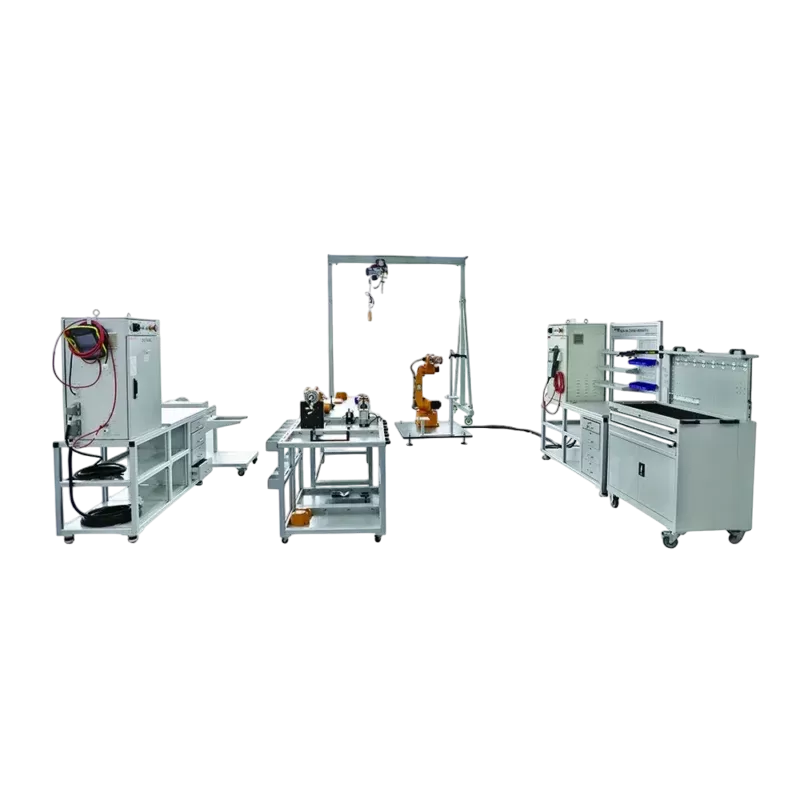

The industrial robot disassembly and operation and maintenance workstation consists of the industrial robot body and base, electronic control disassembly and assembly platform, disassembly and assembly parts cart, disassembly and assembly turnover device, robot component placement tooling, mobile gantry crane, work table, tool cart, palletizing module, Pneumatic system, tool kit, teaching machine and bracket, safety protection, industrial robot virtual disassembly training simulation software, etc.

The technical teaching equipment is popular in technical vocational schools, it is used as mechatronics trainer and tvet trainer for Robotics Technician Training, it comply with "1+X" operation and operation and maintenance assessment requirements.

Equipment Features

The Training and assessment platform for operators of industrial robot system has 9 professional functions, including mechanical device assembly, electrical device assembly, repeated disassembly and assembly of the six-degree-of-freedom industrial robot body, whole machine debugging, calibration, calibration, maintenance and repair, training and management. It can complete the assembly, debugging and maintenance of the six-degree-of-freedom joint robot, and can assess students' hands-on ability and robot precision assembly ability. Each unit module can be disassembled and assembled to the screw level, so that trainees can have a deep understanding of the mechanical structure, motor, reducer, transmission belt, electrical connection, etc. of the industrial robot. It can meet the requirements of the professional training and assessment standards for "industrial robot system operation and maintenance"

Training Projects

- Robot mechanical disassembly

- Check the robot wiring

- Check the mechanical stop

- Origin correction

- Check the damper

- Check the timing belt

- Check the plastic cover

- Add lubricant

- Replace the battery pack

- Clean the robot

- Robot assembly and debugging
