DLFA-R601DM Modular Tandem Robot Training System

Model: DLFA-R601DM Modular Tandem robot Training System

1. Power input： AC 220V±10% ,50Hz.

2. Robot desktop size：800mm×780mm×850mm.

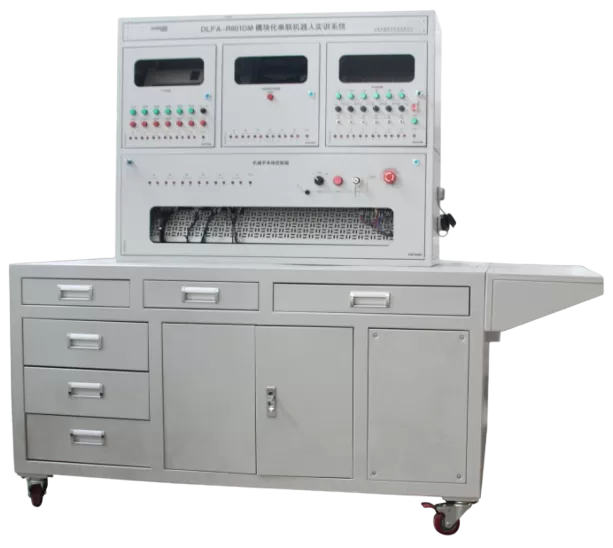

3. Control system overall size：1400mm×780mm×1400mm.

Inquire Now

DLFA-R601DM Modular Tandem Robot Training System

Details introduction

Equipment Overview

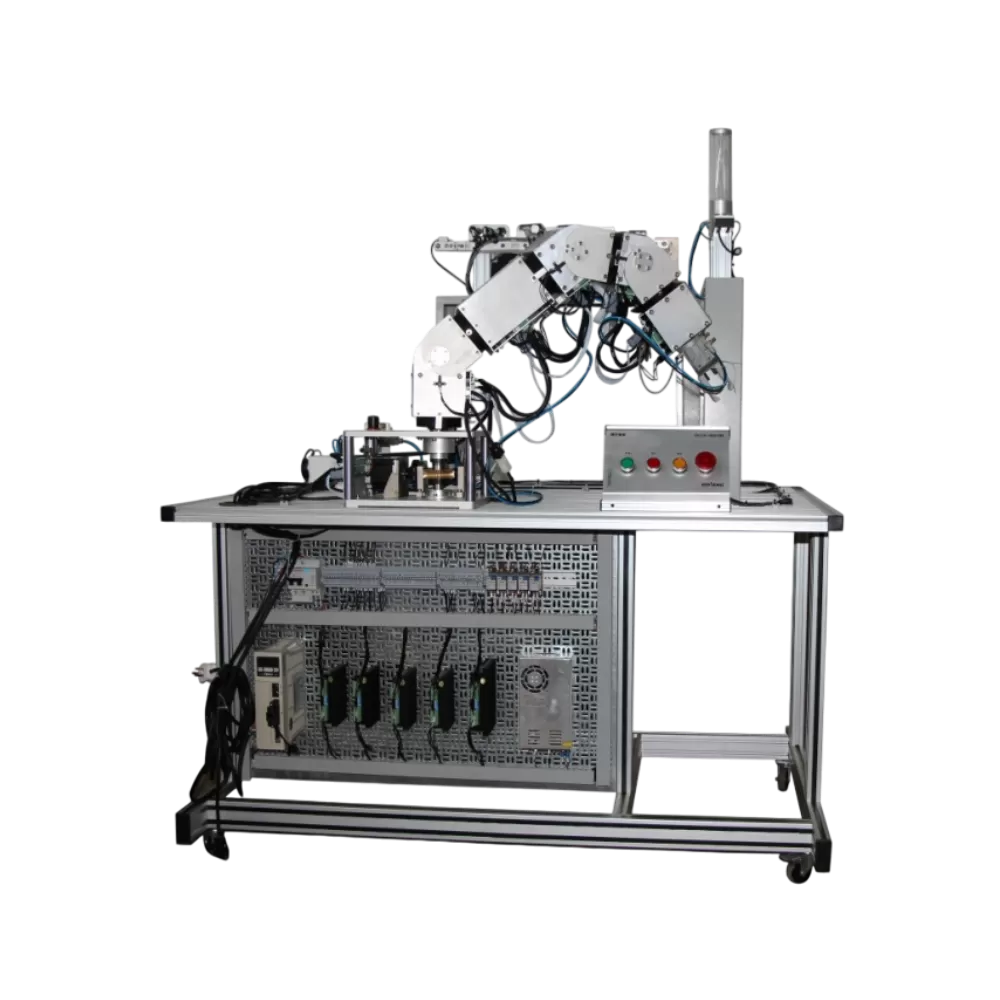

DLFA-R601DM modular serial-link robot is typical mechatronic system,the design and manufacture apply modular design idea and industrial grade standard,with characteristic modular、industrialization, openness, multi-control etc, serial-link robot is combined by each joint module flexibility,can be combined into two、three、four、five、six-axes serial-link robot,can completely complex movement planing and control within space, this mechatronics lab equipments is a practice platform for specialty like mechatronics/Automation carry our verity of experimental training、Application Development and scientific research.

Equipment composition

This technical training equipment is composed of feeding part、serial-link robot、material sorting and control part. Industrial Robot contains of verity industrial transmission device, step motor、servo motor、position encoder、limiting and protection device,which can realistic simulate the object transmission process of robot arm. The control part support three kinds of control method(PLC control、motion control card 、manual control).

Training Projects

- Cognition and application of sensor

- Cognition and application of pneumatic knowledge

- Mechanical integration and debugging technology

- Serial-link robot teaching experiment

- Manual control experiment

- PLC programming control experiment

- Motion control card control experiment

- Single module can independent running experiment

- Mechanical ontology modules can make the disassemble and assemble experiment

- Cognition and wiring experiment of electrical components

- Multi-control programming transformation and operation experiment
