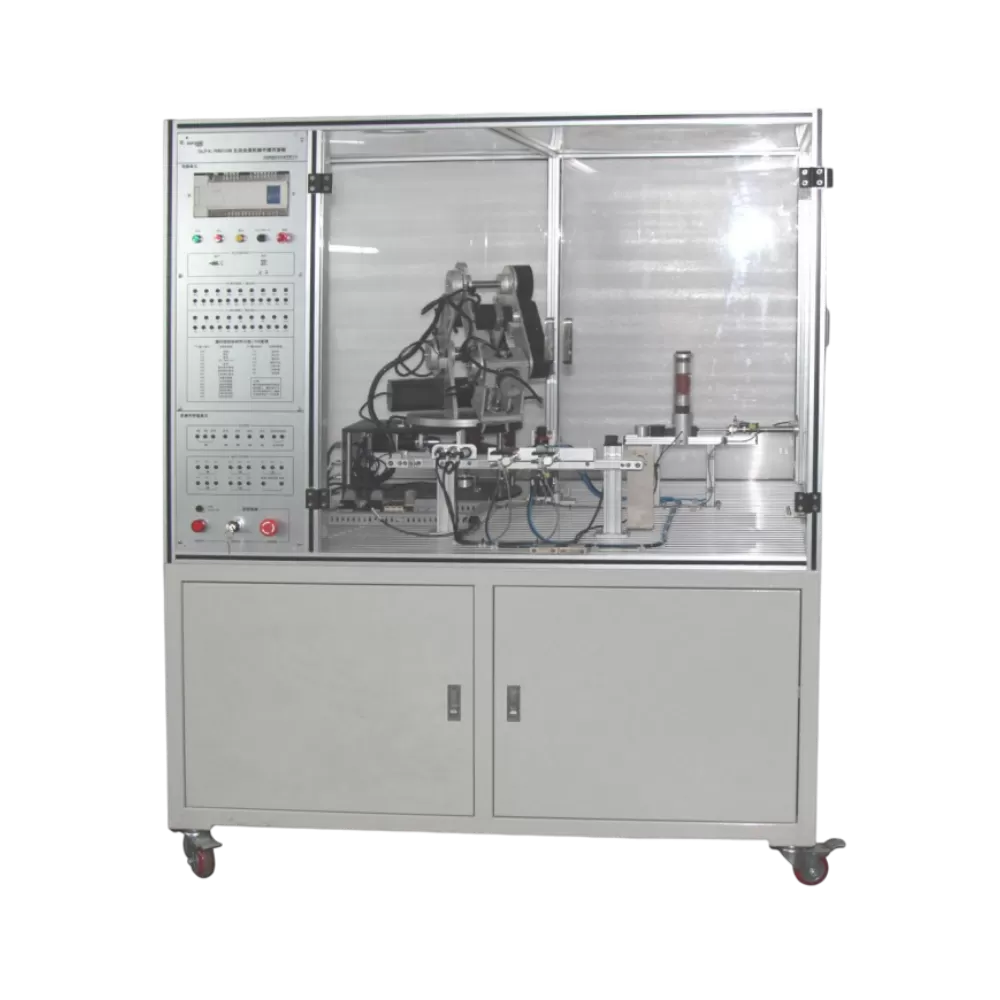

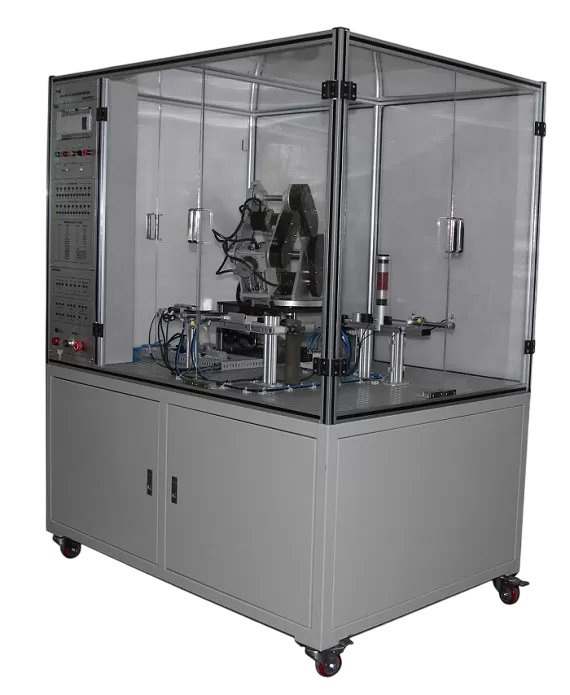

DLFA-R501DM Five-axes Robot Arm Training System

Model: DLFA-R501DM Five-axes Robot Arm Training System

1.Maximum expansion radius：≥700mm High： ≥1150mm Body weight：≤100Kg

2.Operation method：PLC programming control, MCU programming control,Computer software programming control

3.Battery capacity：Single phase 220V 50Hz 4A

4.Temperature： -10℃～40℃

5.Environment humidity： ≤90%（25℃）

6. Machine capacity：≤1KVA

Inquire Now

DLFA-R501DM Five-axes Robot Arm Training System

Details introduction

Equipment Overview

DLFA-R501DM 5-Axes Robot Arm Training System is a popular mechatronics application platform on basic skills. Its modular design and industrial grade quality . It is used for industry 4.0 training system as Robotics Technician Training.

The robot training system is composed of feeding part, five-axes manipulator,material and control part.

Five-axes robot arm ,the axes are parallel or vertical to each other,can be positioned within the space,drive by step motor, main transmission parts using visual design,easy to control,convenient to program,this is the newest robot arm teaching equipment.

Students can learn more knowledge about installation and commission and programming on robot equipment.

Components and functions

Robot module, PLC module, sensors , manual cylinder, and all related modules based on teaching demands, ect. standard,with characteristic modular, industrialization, openness, multi-control etc,this is a complex mechatronics facility,Five-axes robot arm ,the axes are parallel or vertical to each other,can be positioned within the space,drive by step motor, main transmission parts using visual design,easy to control

Optional type:

Note: optional simulation software

Training Projects

- learn knowledge on sensor application

-learn knowledge on pneumatic

- learn how to do Mechanical integration and debugging of robot

-learn control robot by Serial-link

-Learn how to do manual control experiment

-Learn PLC programming

-MCU programming control experiment

- learn the electrical wiring and modules of this equipment
