DLFA-JXS Four Joints Robot Training System

Share:

Model: DLFA-JXS Four Joints Robot Training System

1. Power input: AC 220V±10%, 50Hz

2. Maximum operating radius of robot: 350mm

3.Maximum operating angle of axis: J1: ± 127° J2: ± 137° J3: 170mm J4: ± 360 °

4.Maximum speed of axis: J1: 375 degrees / sec, J2: 612 degrees / sec, J3: 1177 degree/ sec, J4: 2411degree/ sec

5.Maximum capacity: 6KG

6.Robot Weight: 20KG

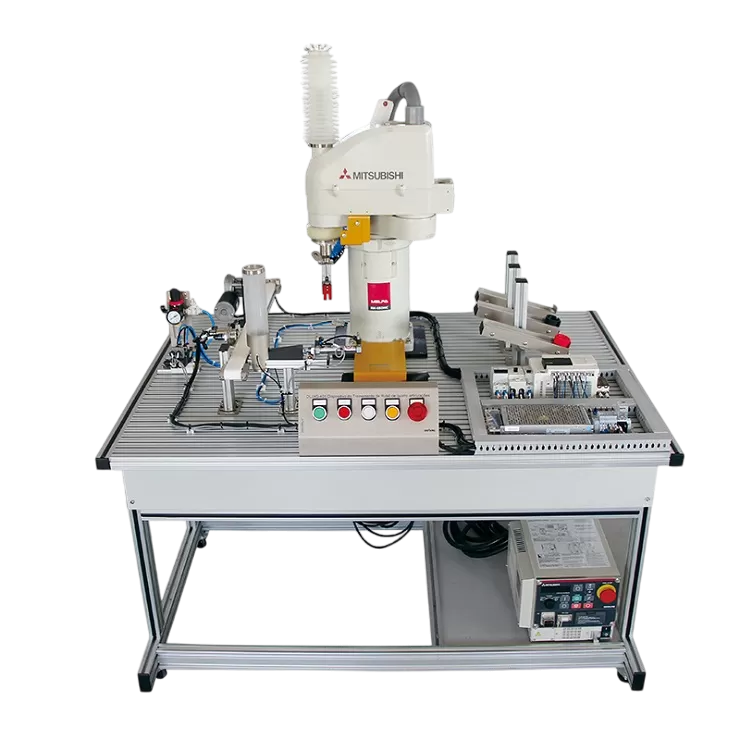

DLFA-JXS Four Joints Robot Training System

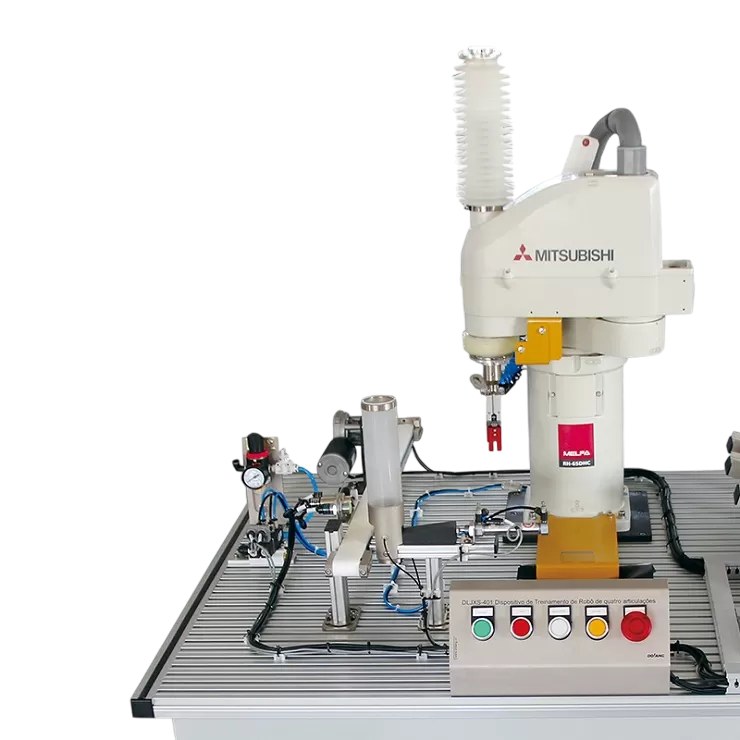

DLFA-JXS Four Joints Robot Training System

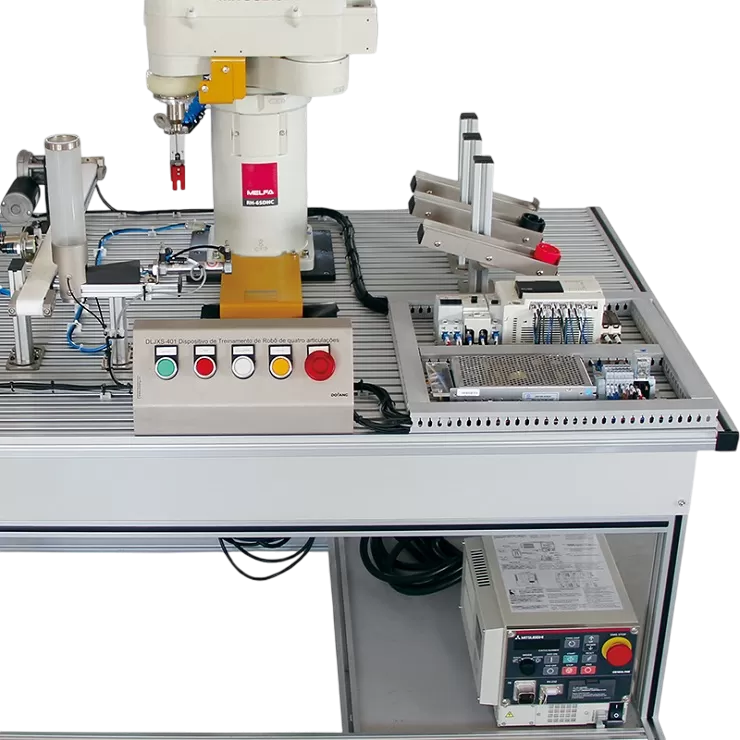

DLFA-JXS Four Joints Robot Training System

Details introduction

Equipment Overview

DLFA-JXS four-joint robot training system is typical mechatronic trainer, this system is produced with industrial grade standard robot, It has characteristic modular,industrialization, openness, multi-control etc.

Teachers can also adapt Dolang robot trainer to teach class on industry 4.0, industry automation, industry control and other manufacturing field.

Dolang as professional TVET training equipment manufacturer in China, focus on vocational education equipment production for 30 years, we have a strong technical team to help provide rich teaching materials, such as teachers book, student book, equipment training videos, software resources, courses materials, and we also has our teaching method with equipment to bring you a perfect experience with Dolang technical teaching equipment.


Components and functions

This robot training kits include feeding module , Serial robot module , sorting module and control module. steeper motor module , servo motor module , position encoder and limit detection & protection device, it can actually simulate the transmission operation of robot arm.

It has 3 control mode: PLC control, motion card control, manual control.


Training Projects

- sensor application

-  pneumatic application

-  Mechanical integration and debugging

-  learn control robot

-  Learn PLC programming
