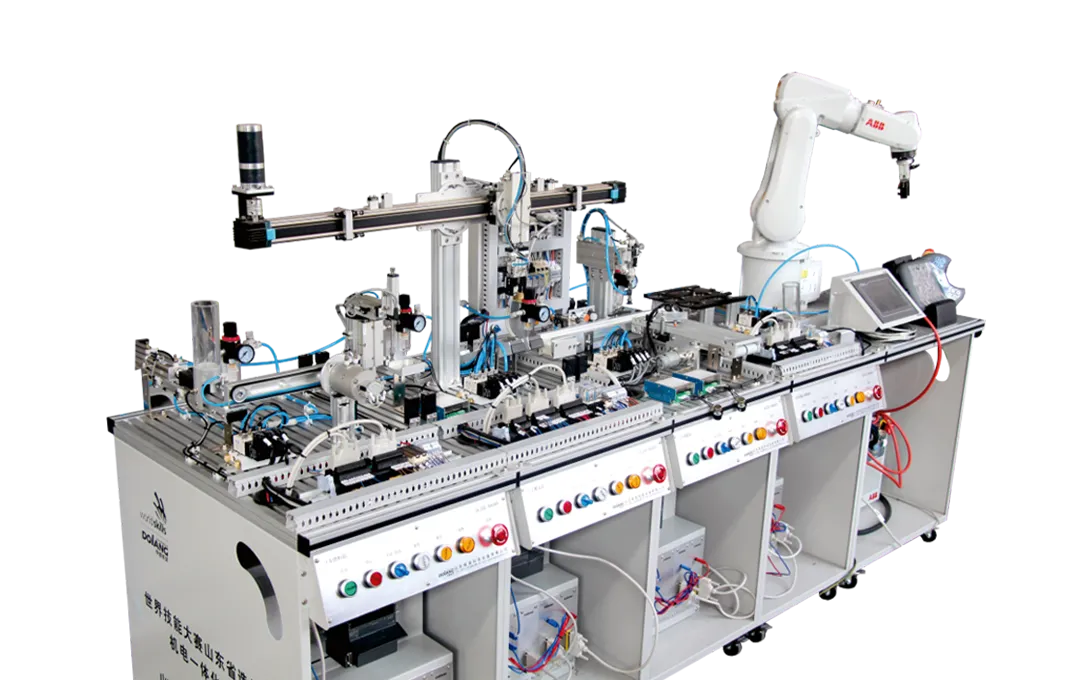

DLDS-500AR Modular Flexible Production Line Training System

Share:

Model: DLDS-500AR Modular Flexible Production Line Training System

1. Electric control cabinet main circuit power supply: single-phase AC220V±10%, 50Hz.

2. Electric control cabinet control loop power supply: DC24V.

3. Temperature: -10℃~40℃; Ambient humidity: ≤90% (25℃).

4. Overall dimensions are not less than: 2400*790*1390mm (L*W*H);

5. Air source pressure: 0.4-0.6Mpa.

6. Machine capacity: ≤5KVA.

7. Robot brand: can be optional

DLDS-500AR Modular Flexible Production Line Training System

Details Introduction

Equipment Overview

A modular flexible production line training system belongs to factory automation. it is a learning solution for TVET Technical education and training. It contains many kinds of  engineer training systems on the objects of industry automation production.

The intelligent controller, simulation software, and industry robot palletizing and handling unit give you exciting insights into the tree and focus topics in the field of factory automation and industry 4.0.such as intelligent control, digital technology, and energy power management, industry robotics and so on.

In addition, the industry 4.0 and robotics training system workstations adopted high-quality materials and technologies, such as steel, painting, and models. aluminum base panel. for each workstation can be put and fixed in the base panel, so  this skills competition equipment is easy to move and position in a fast way.

Training modules: Intelligent controller, feeding unit, handling unit, assembly unit, industrial robot palletizing and handling unit, operation panel, touch screen, control cabinet, I/O adapter board.

Application Technology

- Electrician

- Electric drive

- Sensing Technology

- pneumatic technology

- Robotics assembly

- PLC

- Touch screen

- Industrial automation network

- Assembly and commissioning of automated production lines

Training Objects

-Training arm: Understanding of the structure of the feeding station

1. The overall structure of the skilled feeding station

2. Familiar with the sensors on the feeding station

3. Familiar with pneumatic components

-Training arm: Understanding of the structure of the handling station

1. Familiar with the overall structure of the handling station

2. Familiar with the sensors on the handling station

-Training arm: Knowledge of assembly station structure

1. The overall structure of the skilled assembly station

2. Familiar with the sensors on the assembly station

-Training arm: Understanding of warehouse structure

1. The overall structure of the skilled storage station

2. Familiar with the sensors on the storage station

-Training arm: Programming and Debugging of Flexible Manufacturing System PLC

1. Familiar with the overall structure of the flexible manufacturing system

2. Complete the connection between the stations of the flexible manufacturing system
