Robot Training Equipment

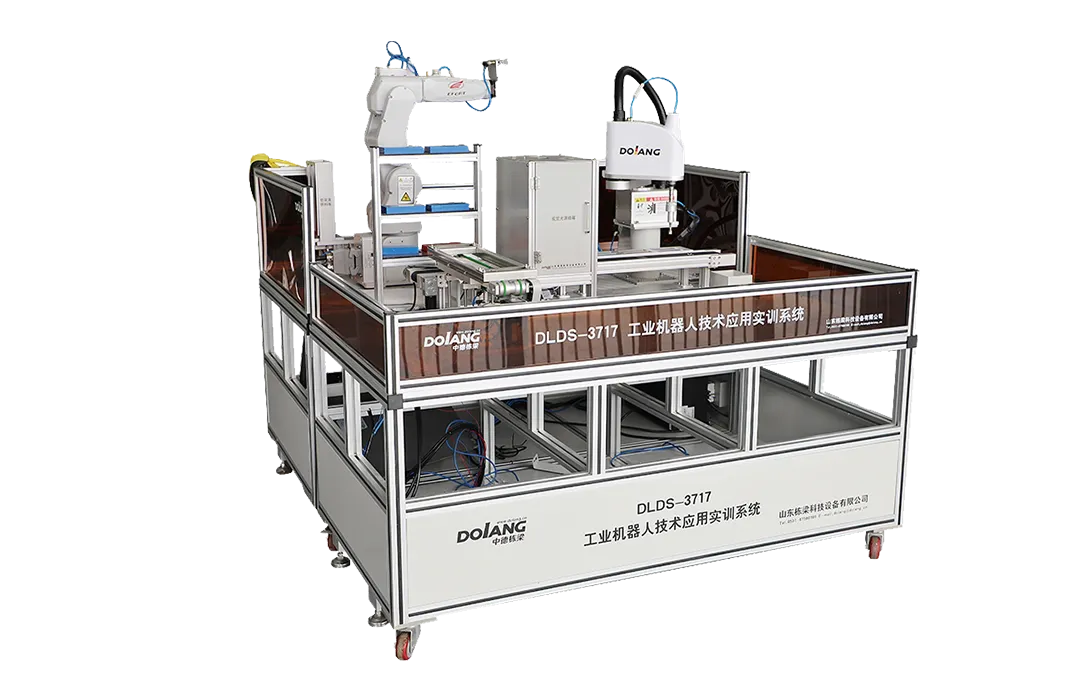

Model: DLDS-3717 Robotics Workstation
1. Input power: single-phase three-wire AC220V±10% 50HZ,
2. PLC: Xinjie; Touch screen: 7 inches
4. Mobile conveyor system (AGV): mobile accuracy ±5mm.
5. Six-joint industrial robot
Parameter: Axes: 6
Maximum range of motion: 628mm
Maximum load: 3kg
Repeat positioning accuracy: ±0.02mm
6. SCARA robotics: Axes: 4
Arm length: 400mm
Z axis travel: 150mm
Repeat positioning accuracy: X/Y axis ±0.01mm
Z-axis ±0.01mm
R-axis ±0.005°
Details Introduction
Overview
The Robotics workstation is composed of an industrial robot basic workbench and an integrated training unit; among them, the china robot training equipment basic operation platform is composed of 1# operation platform and 2# operation platform;
The 1# operating platform can be used alone or in combination with the 2# operating platform.
Composition
The basic workbench of industrial engineering lab equipment composed of bellowing unit:
Six-axis industry robots
Four-axis industry robots
Industrial vision cameras
PLC control system
Touch screens (HMI)
Mobile conveyor (robotics) systems (AGV)
Buffer area brackets
Raw material area brackets
Guardrails
Training Objects
- Mechatronics Learning System software installation and application
Section 1 Installation and application of PLC programming software
Section 2 Installation and application of touch screen programming software
Section 3 Installation and application of servo drive software
Section 4 Vision system
Section 5 Mobile conveyor system
Section 6 Four-axis industrial robot
Section 7 Six-axis industrial robot
- Communication between devices
Section 1 Communication between PLC and SCARA robot
Section 2 Communication between PLC and six-axis robot
Section 3 Communication between four-axis robot and visual inspection system
Section 4 Communication between PLC and touch screen
Section 5 Communication between PLC and mobile conveying system
Section 6 Communication between PLC and Servo System
- Training items for the robot training equipment
Section 1 Production tasks of fidget spinner press assembly based on robot arm training equipment automatic loading and unloading
Section 2 Tasks of Numeric Keyboard Automatic Assembly Production Line
Section 3 Wireless mouse assembly task based on dual-robot collaboration
Section 4 Automatic Grinding of workpieces
Section 5 Robot automatic gift packaging tasks
Section 6 Multi-variety material transfer and palletizing tasks
Section 7 Automatic Bookmark Sorting Tasks
- Learning of virtual disassembly and assembly simulation system
