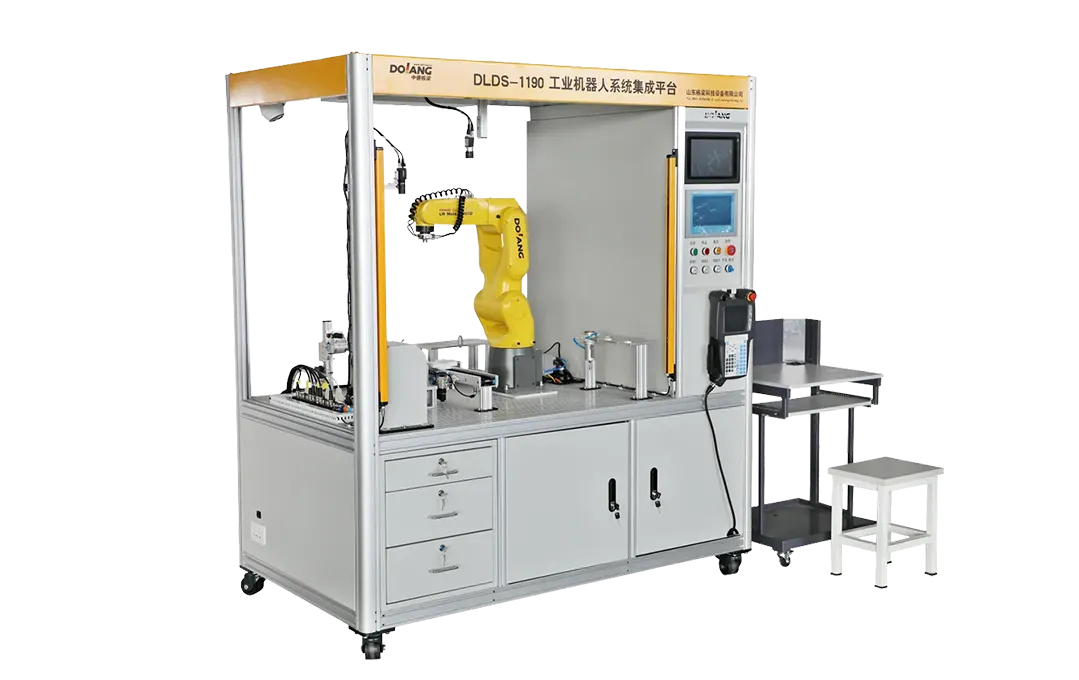

DLDS-1190 Industrial Robot Training System

Model: DLDS-1190 Industrial Robot Training System

1. The system covers an area: length × width × height ≈ 4000mm × 3000mm × 2500mm (can be adjusted according to the site conditions)

2. Workbench size: length × width × height = 1740mm*1020mm*1950mm.

3. Machine power: about 3.5KVA. Input power supply: AC220V±10%. Output power: DC24V.

4. Reliable grounding of the system: grounding impedance <4 ohms.

5. Compressed air pressure: 0.3-0.7MPa.

6. Cooling method: natural cooling.

Inquire Now

DLDS-1190 Industrial Robot Training System

Details Introduction

Equipment Overview

DLDS-1190 Industrial Robot Training System can choose FANUC robot LR-Mate200iD six-axis industrial robot, SIEMENS S7-1200 PLC,

And combined with FANUC industrial intelligent camera vision system (2D), basic operation assessment system, machining automation task unit, module intelligent transfer-sorting-palletizing task unit, gift wrapping task unit, process application welding task unit, digital keypad assembly task unit. The teaching system allows students to better learn the operation, debugging, visual training of industrial robots, PLC principles, PLC programming, sensor technology, network communication technology, also RFID module etc.

Features

You can also learn the professional theory and practical skills of mechatronics training kit, such as industrial robot tool coordinate calibration, plane and curved surface trajectory programming and operation, assembly, handling, palletizing, simulated welding, gift packaging, industrial vision inspection, etc.

Engineering teaching equipment can also be used for offline programming and simulation skills assessment of industrial robots.

This vocational education equipment not only included hardware, such as industry robot, workbench, also have software, such as PLC programming software, DLsoft-robot arm industrial robot virtual disassembly training simulation system.

Training Projects

- TIA Portal software exercises

- Practice using the teach pendant and manual manipulation of robot motion

- Creation and editing of industrial robot programs

- Vocational training equipment pick and place tool practice

- FANUC industrial robot coordinate system

- Robot coordinate system and zero point calibration

- Industrial robot handling practice

- Programmable controller communicates with FANUC industrial robot IO

- Industrial robot handling and palletizing tasks

- Mechatronics trainer digital keyboard assembly work task

- Industrial robot welding work task
