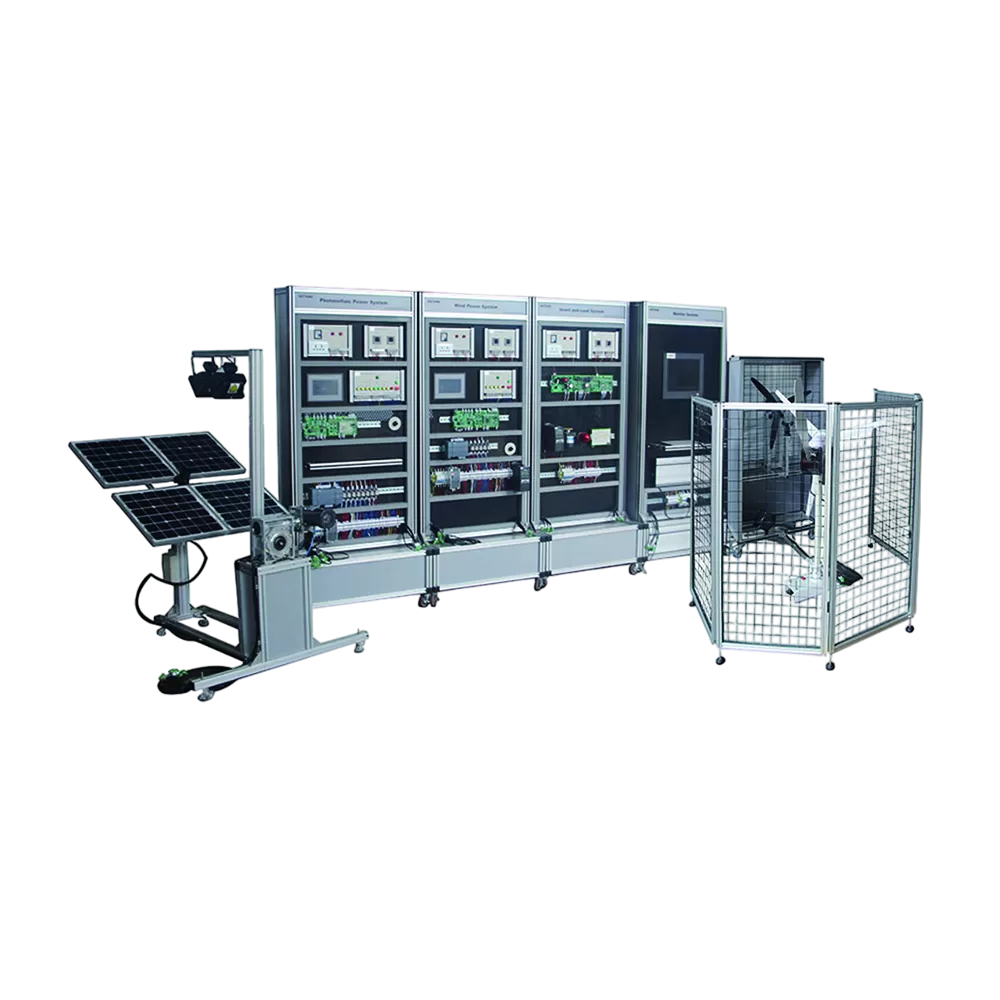

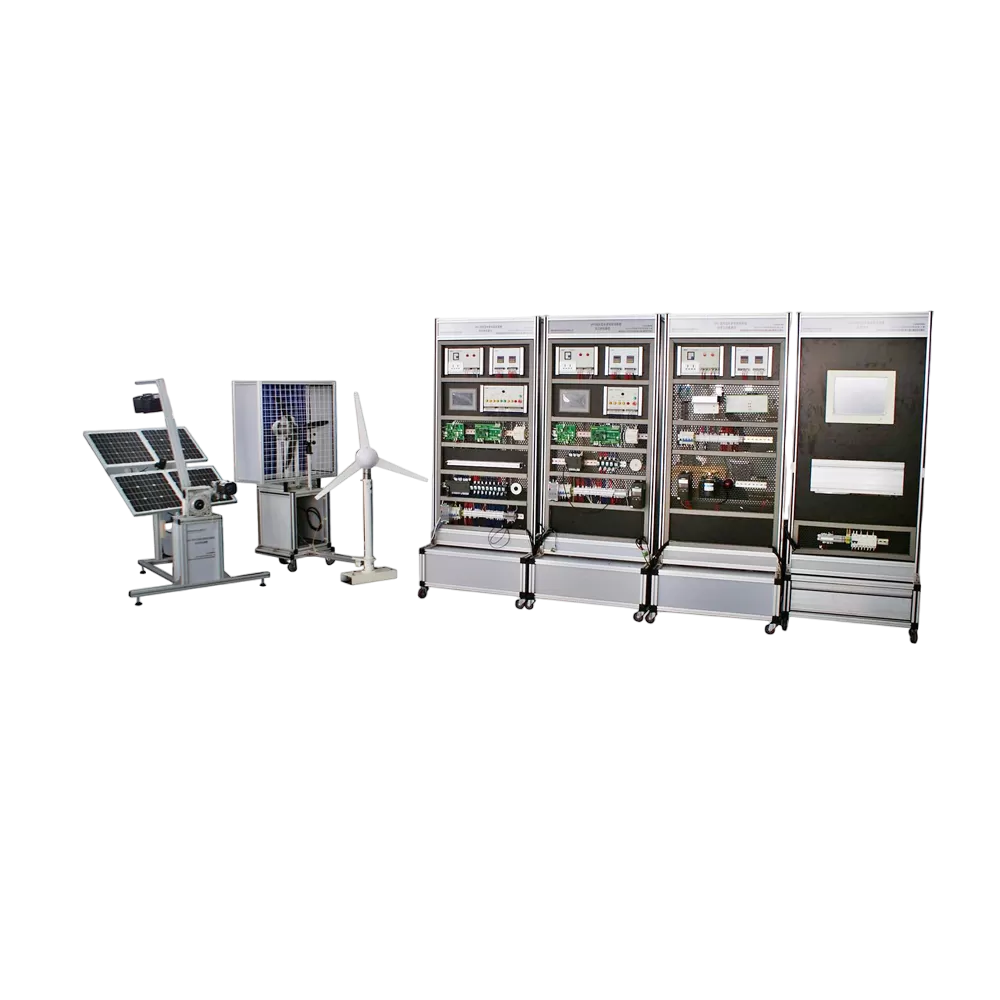

DLXNY-WP01 Wind Solar Hybrid Power Generation System

DLXNY-WP01 wind-solar photovoltaic complementary training system is a complete system for Solar and wind Hybrid training. It Includes renewable power training kit demonstrates the working principle of winder turbines and solar cells.

The solar and wind Hybrid training equipment use sunlight and wind to be the energy sources. The training bench is one kind of hybrid power training system.They cover the basic, operation, installation, maintenance and service of wind/solar energy power system.

All solor/wind renewable energy training system are use real Industry components. Some components are around students, such as homes, schools and work places.All technical teaching equipment are long-lasting use and high quality standards in the world.

- Planning of off-grid wind-solar hybrid power generation system;

- According to the power requirements, the selection, installation and connection of photovoltaic cell modules;

- According to power requirements, the selection, installation and connection of wind turbines;

- MCU-based maximum power tracking program design of photovoltaic cell modules;

- Program design of the maximum power tracking of the wind turbine based on the MCU;

- Battery capacity matching calculation and selection;

- Battery charging and discharging parameter setting, protection parameter setting;

Inverter parameter setting;

- Monitoring system configuration and operation;

- Debugging of photovoltaic power supply system;

- Debugging of wind power supply system;

- Debugging of wind-solar hybrid power generation system;

- Monitoring, debugging and analysis of power quality.
