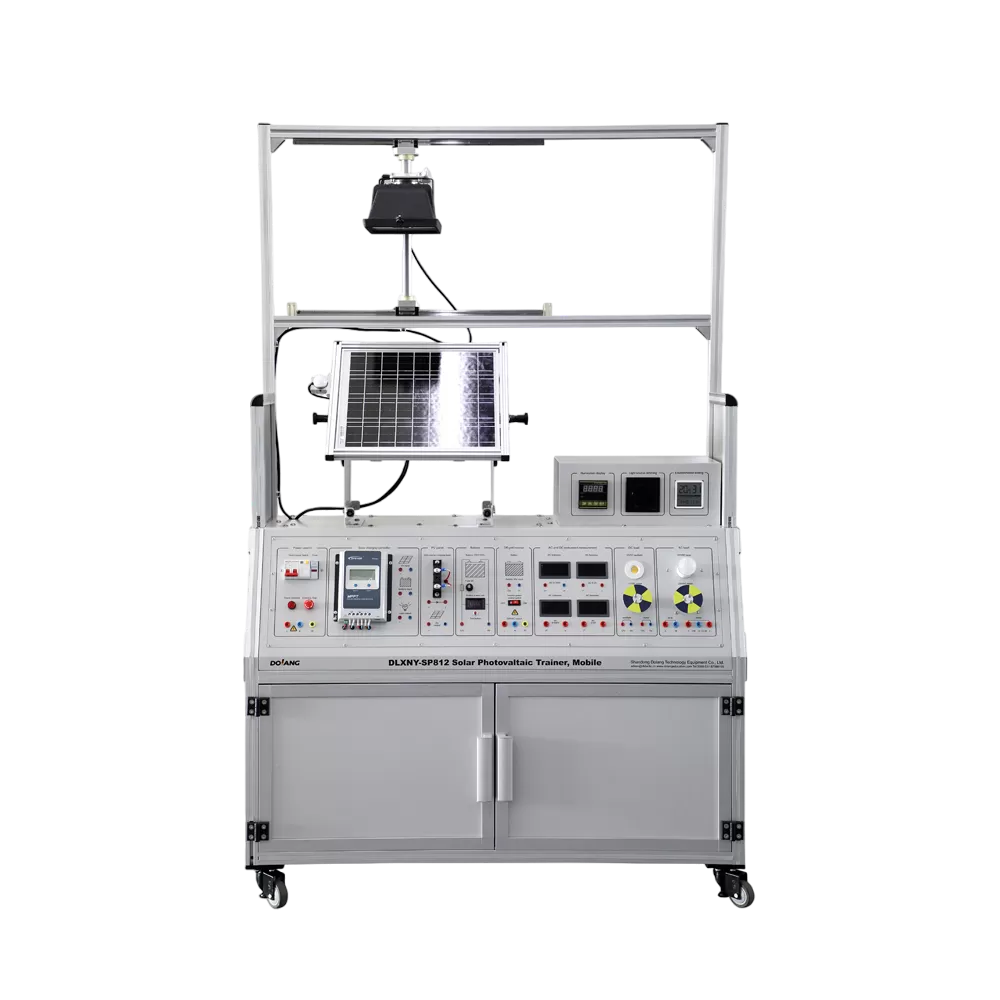

DLXNY-SP812 Solar Photovaltaic Trainer

Model: DLXNY-SP812 Solar Photovaltaic Trainer

1. Input power: AC220V±10% 50HZ

2. Equipment size: ≤1200*415*1900mm

3. Working environment: temperature -10℃～40℃

4. Relative humidity﹤85﹪（25℃）

Inquire Now

Details introduction

Overview

DLXNY-SP812 Solar Photovaltaic Trainer is one kind of renewable power training equipment, which can provide a practical teaching, experimental and solar power teaching experiment platform for the working principles of solar cells, controllers and sine wave inverters. Its working process is that the solar cell module first converts solar energy into low-voltage DC power, and then charges the 12V battery through the controller, and also powers the inverter behind. The inverter converts 12V DC power into 220V AC power for various loads. It suit for the new energy related training in engineer university, college, vocation schools, polytechnis etc.

Equipment Features

The Solar PV teaching workbench is composed of solar panel, off grid inverter, Solar Controller, storage battery, AC load, DC load, Digital AC/DC Voltmeter, Digital AC/DC Ammeter, light source, Temperature and humidity sensor etc.

Application: solar power teaching experiment platform ,new energy training kits,solar training equipment ,solar training system ,green energy teaching model ,photovoltaic training workbench ,Wind energy teaching workbench

Training projects

- Light source position adjustment experiment

- Solar panel angle adjustment experiment

- Light source dimming experiment

- Illuminance measurement experiment

- Solar power generation experiment

- DC load experiment

- AC load experiment

- Solar charge controller monitoring software installation tutorial

- Solar charge controller monitoring software usage tutorial

- Battery charging experiment
