Renewable Energy Training Equipment
Model: DLXNY-GF07 Solar Power Generation Training System
1.Working power: AC220V 50Hz
2.Working environment: the ambient temperature range of -10 ~ 40 ℃ relative humidity ≤ 85% (25 ℃) altitude <4000m
3.Total power control, with leakage protection function, when the leakage current up to 30mA, the protection system action.
4.Maximum power consumption ≤ 2.0KW
Details introduction
Overview

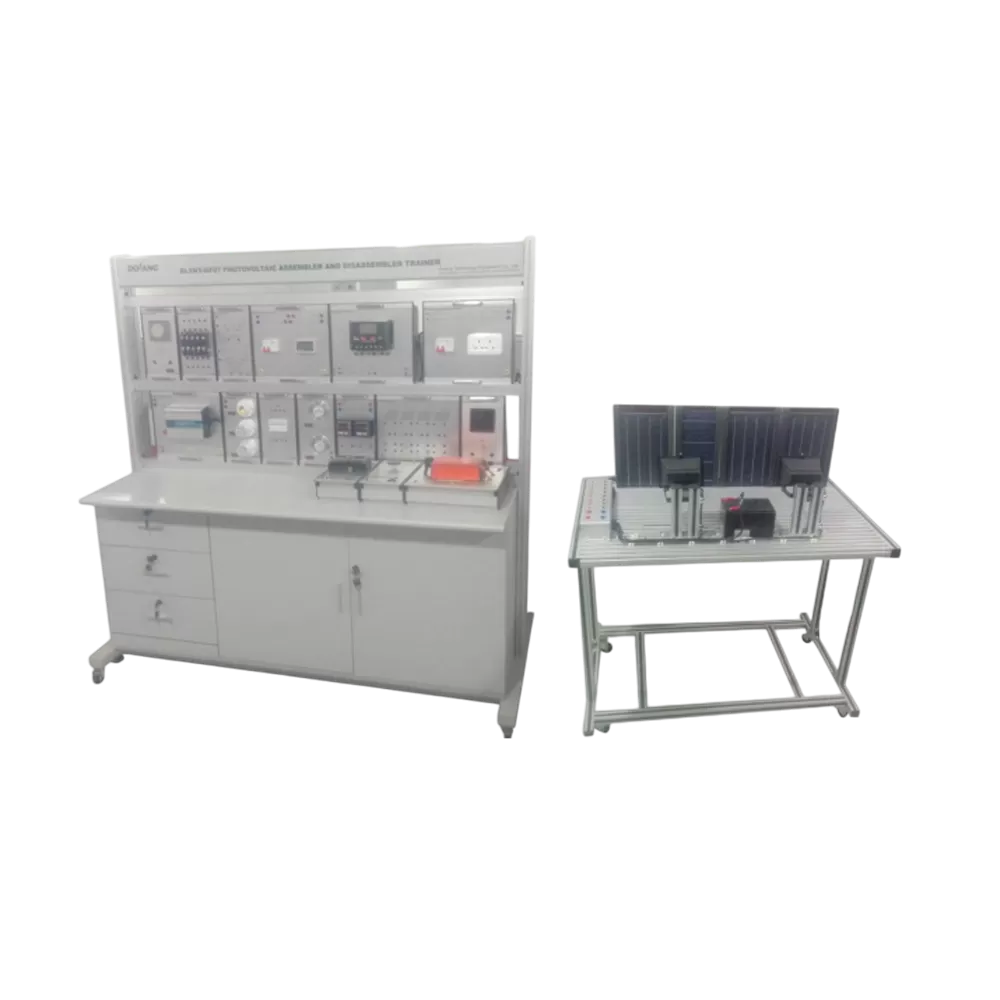

DLXNY-GF07 solar photovoltaic integrated training system is a solar photovoltaic trainer designed by modular concept, made by a simple security cable can be achieved the principle of photovoltaic power generation to understand the function of each components of renewable energy training system. Through the technical training equipment to complete the wiring training, to improve the ability of wiring,components using and selection of the environment.
Equipment Features
The PV Training workbench modules are easy to plug and take out, it is mainly composed of Electricity Meter Module, AC input terminal module, Solar panels, light source, Diode module, Charge controller, battery, AC lights, AC motor, buzzer, Grid - connected inverter module, Off-grid inverter module, fuse module, Variable resistance module, DC voltmeter module, DC ammeter module, AC voltmeter module etc
Training projects
- Training 1.Principle of solar cell power generation experiment
- Training 2.Energy conversion experiment of solar photovoltaic panels
- Training 3.Influence of Environment on Photovoltaic Conversion
- Training 4.Experimental Study on Direct Load Characteristics of Solar Cell - Photovoltaic System
- Training 5 Training of solar controller working principle
- Training 6.Reactive protection of photovoltaic power generation system experiment
- Training 7.Experiment on Overcharge Protection of Battery by Solar Controller
- Training 8.Experiment on over - discharge protection of battery by solar controller
- Training 9.Night anti-charge experiment
- Training 10.The working principle of off - grid inverter
- Training 11.Grid - connected inverter working principle
