Renewable Energy Training Equipment

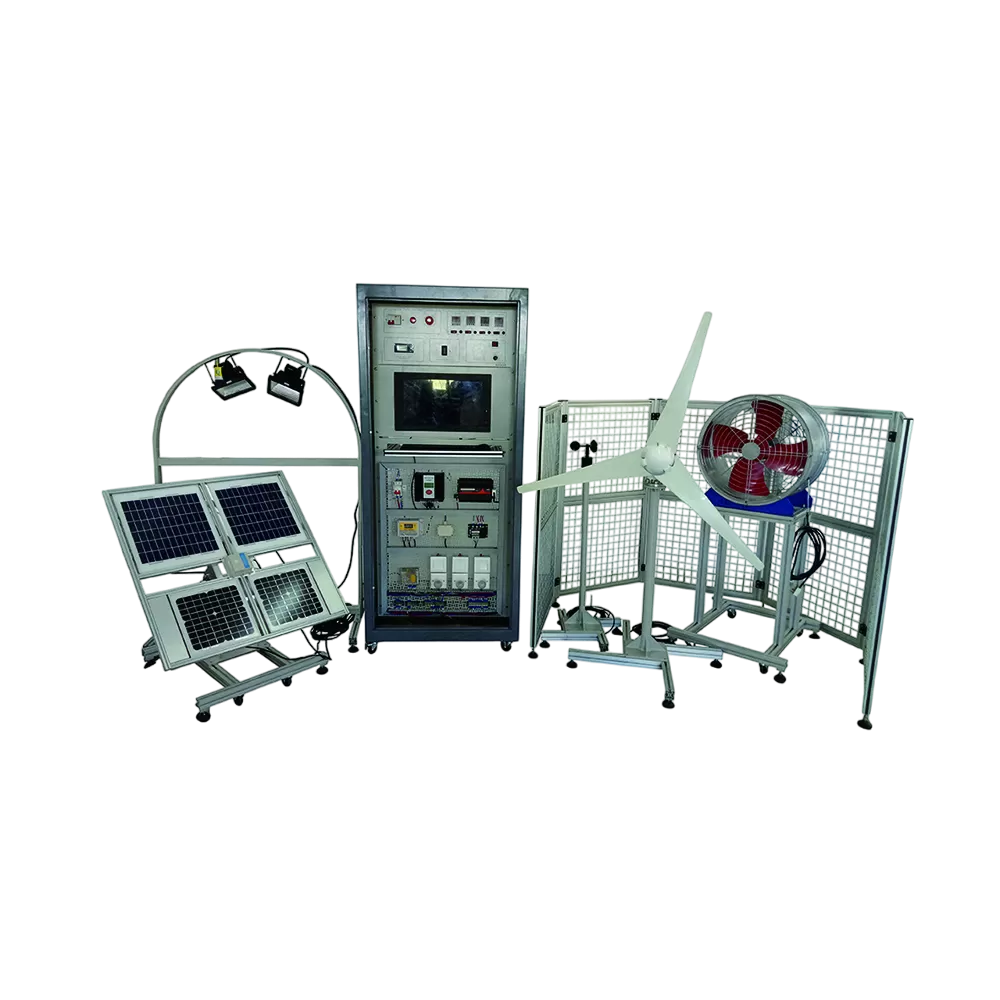

Model: DLXNY-FN02 solar and wind energy training equipment
1. Input voltage: AC220V ± 10% / 50Hz
2. Power consumption: wind simulation: 0.75KW simulated solar light: 200W
3. The system output power: 220VAC 1500W 12VDC 500W
The wind turbine: 12V / 300W
5. Wind start speed: 2.0 m
6. Wind wheel diameter: 1.3 m
7. The axial fan: 220V / 0.75KW 0-1440r / min
8. Solar Panel: monocrystalline 17.5VDC, 10WP
Polycrystalline 17.5VDC, 20WP
Details introduction
Overview
The DLXNY-FN02 solar and wind energy training equipment is renewable power training kit designed in vertical modular.each device and system has independent functions. It can be combined into photovoltaic power generation training system and wind power generation training system.
Equipment Features
DLXNY-FN02 wind & solar hybrid training system consists of a photovoltaic power system, solar power systems, wind power equipment, wind power system, inverter and load system, monitoring system components. DLXNY-FN02 wind and solar power generation system using training modules type structure, the devices and systems with separate functions, can be combined into photovoltaic training systems, wind power training systems.
Training panel with standard patch board,integrated with wind measurement alarm system,with full-closed control mode.The Solar and wind Hybrid training equipment use PWM mode for stepless unloading, Keep the battery in the best state of charge.Off-grid inverter module with Overload protection, internal overtemperature protection, output short circuit protection, input undervoltage protection, input overvoltage protection
All the components are lead to the panel by wires.The data of Wind power generation, photovoltaic power generation, battery storage can be tested by meters, the users can monitor the parameter, data and curve.
Training projects
- Wind and solar Experiment
- The wind power experiment
- The photovoltaic power generation experiment
- Experimental wind and solar controller
- The battery charging and discharging experiments
- The off-grid inverter load test run
- Experimental solar panel series
(1) Experimental solar panel energy conversion
(2) Environmental impact of photovoltaic conversion experiments
(3) solar photovoltaic system directly load characteristics test
(4) solar controller works experiment
(5) reverse polarity protection test
(6) solar controller battery overcharge, over-discharge protection experiments
- Solar Battery Controller test series
(1) solar battery charging control experiment
(2) The controller charge and discharge protection experiments
(3) the battery voltage, current testing experiment
(4) Estimation of battery power experiment
- Solar photovoltaic inverter test series
(1) The inverter works analysis experiments
(2) Output voltage, current testing laboratories
(3) The maximum output power estimation experiments
(4) Overload or short circuit protection demonstration experiment
(5) Anti-reverse input voltage demonstration experiment
- Demonstration Experiment of Synchronous Wind Turbine Operation Process and Wind Energy Conversion
(1) Basic theory of wind power experiments
(2) Wind power system design experiment
(3) Wind power control technology experiments
