Renewable Energy Training Equipment
Model: DLWD-GF21 Wind Solar Complementary Application Training System
1. Size of system console: 900mm*600mm*1900mm (± 5%)
Size of photovoltaic power generation module: 1780mm*640mm*1285mm (± 5%)
Size of light source assembly: 840mm*840mm*1780mm (± 5%)
Size of wind turbine: 1000mm*280mm*220mm (± 5%)
2. Equipment input power supply: AC220V ± 10%50hz
3. Equipment power: ≤ 3.5kw
4. Working environment: -10 ℃ --45 ℃, relative humidity: ≤ 85% RH
Details introduction
Overview

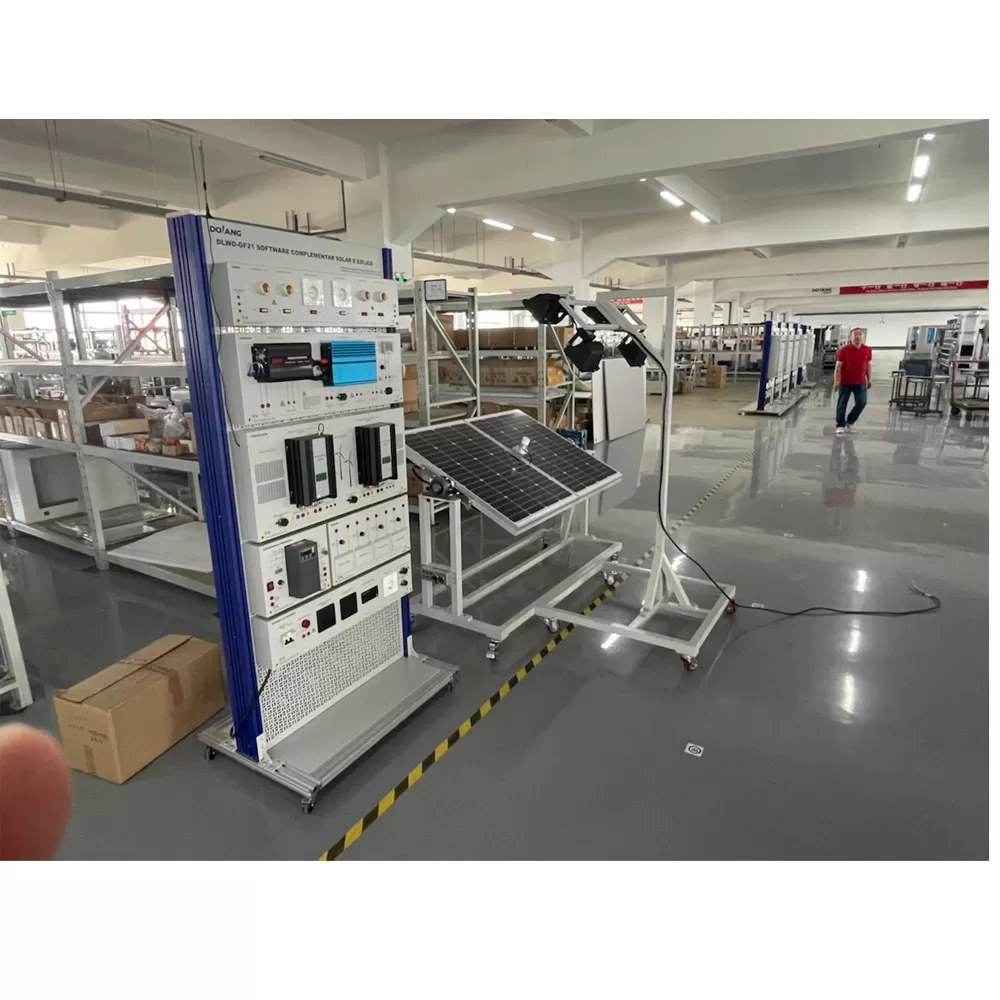

DLWD-GF21 Wind solar complementary application system is a renewable power training kit mainly composed of three parts: system console, solar photovoltaic power supply system and wind power supply system, which is mainly used for Solar and wind Hybrid training equipment. It can complete the experiment and teaching demonstration of wind power generation charge and discharge and inverter power supply. It can help students further understand the principle of the whole system of wind power station, learning solar installation.
Equipment Features

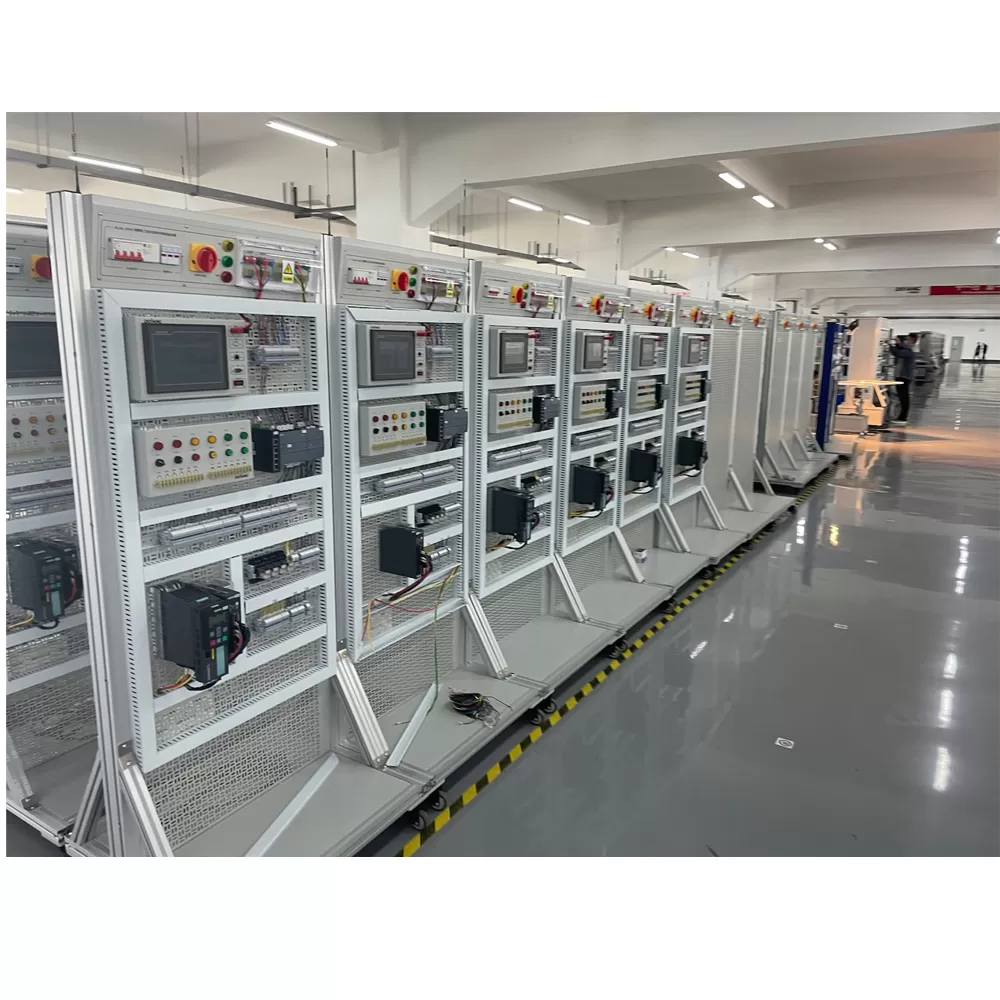

1. The Wind solar training equipment is composed of sheet metal bottom plate, aluminum alloy column and mesh plate. The bottom plate is equipped with casters to facilitate the movement of the equipment. All devices are of modular design and freely combined and fixed on the mesh. The wiring of all devices is led out to 3mm / 4mm safety wiring terminals and connected through special test wires to facilitate operation and protect the devices from damage.
2. The solar panel is fixed on a special support, and the support angle can be adjusted manually, and the adjustment range is not less than 90 °.
3. The three-phase AC permanent magnet motor is driven by the three-phase asynchronous motor to simulate the power generation of the fan. The prime mover can simulate the changes of the power generation generated by different wind forces through the speed regulation of the frequency converter.
Training projects
- Light source assembly dimming experiment
- Measurement experiment of solar radiation sensor
- Photovoltaic power generation experiment
- Wind power generation experiment
- Wind solar complementary comprehensive power generation experiment
- Data monitoring experiment of wind solar complementary controller computer software power generation
-Data monitoring experiment of wind solar complementary controller mobile software power generation
- Load output experiment of wind solar complementary controller
- Operation experiment of inverter software control
- Off grid inverter operation load test
