DLGK-JD3 Process control training system

Model: DLGK-JD3 Process control training system

1. Input voltage: single-phase three-wire system 220V±10% 50HZ

2. Working environment: the ambient temperature range is -5~40℃.

3. Equipment capacity: AC<3000VA

4. Safety protection: leakage protection. (Action current ≤30mA), overcurrent protection, fuse protection

5. DC power supply: DC24V＜5A power supply

6. Ambient temperature: -10℃～40℃

7. Relative humidity: ≤90% (25℃)

8. External dimensions of the control panel: length×width×height=1810×700×1650;

Process control unit size: length×width×height 2000×800×1900

Inquire Now

DLGK-JD3 Process control training system

Details introduction

Equipment Overview

DLGK-JD3 is one kind of process control teaching equipment.Process control didactic equipment applies automatic control principles to physical control, widely used in the food industry, pharmaceutical industry, etc. The equipment involves temperature control, pressure control, liquid level control, flow control and SCADA, covering P, PI, PID control. This is important knowledge for technical vocational education.

Equipment Features

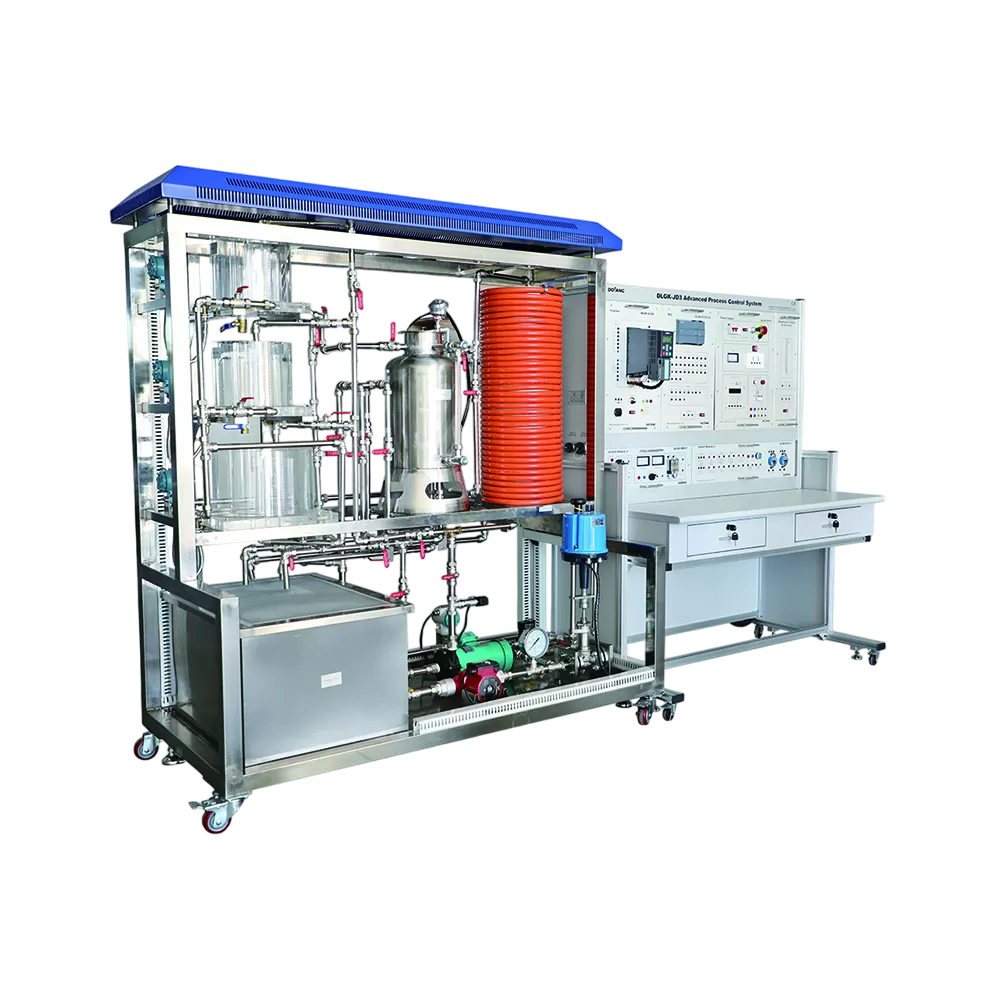

DLGK-JD3 Vocational Equipment Process Control Trainer Including control training panel and process control unit. The training system is based on the physical simulation object of industrial process. Through the integration of automation tool technology, computer technology, communication technology and automatic control technology, it becomes a multifunctional experimental device. The equipment is based on the nature of automation and other related professional teaching. the system has absorbed the characteristics and advantages of similar experimental equipment at home and abroad. Including thermal parameters such as temperature, pressure, flow and liquid level. And you can specify system parameters, single-loop control, cascade control, and other control schemes.

The process control teaching device can also be designed to create various control systems, such as DDC, DCS, PLC, and FCS and single-chip microcomputers can be customized according to user requirements. The experimental device can be used as an experimental device for undergraduate courses. College and higher vocational process control courses. It also provides physical simulation objects and experimental methods for graduate students and science students to study complex control systems and advanced control systems.

Application range: water tank training, PID setting test, boiler training, PID control teaching, Process control training equipment, temperature process training, process control training, level process control training, flow control training, PLC control teaching, lift training, Factory automation engineer training, PLC training, Electrical control training, engineer training model, TVET Technical Vocational Education Training equipment, sensor technology, mechanical technology training etc

Training Projects

-Training how to use the process control training equipment.

-Training using the control screen

-Use power module training

-Training on the use of the control module

- PLC module use training.

- Use the simulation module

- Use inverter module training

- Use analog wiring module training.

- Process control unit awareness training

- configuration software training

- sessions of PLC programming software training
