Process Control Training Equipment
Model: DLGK-53B Process Control Training System
1. Input voltage: three-phase five-wire 380V ± 5% 50HZ
2. Work environment: temperature range of -5 ~ 40 ℃
3. Installed capacity: AC <10KVA
4. Security: leakage protection (operating current ≤30mA), over current protection, fuse protection
5. Ambient temperature: -10 ℃ ~ 40 ℃
6. Relative humidity: ≤90% (25 ℃)
7. Dimensions: length * width * height = 1950 × 700 × 1500mm
Details introduction
Equipment Overview
The process control training system is a technical teaching equipment with theoretical knowledge of the control system is applied in the actual projectThis equipment is produced by a professional vocational equipment factory.Normally used in adjustment systems, adjustment methods, control system design for different control process engineering objects, and adjustment control algorithm design. The four thermal detection and sensing devices widely used in industry for temperature, flow, liquid level, and pressure can be diversified. And relevant experimental trainings can be designed by using this vocational equipment.
Equipment Features

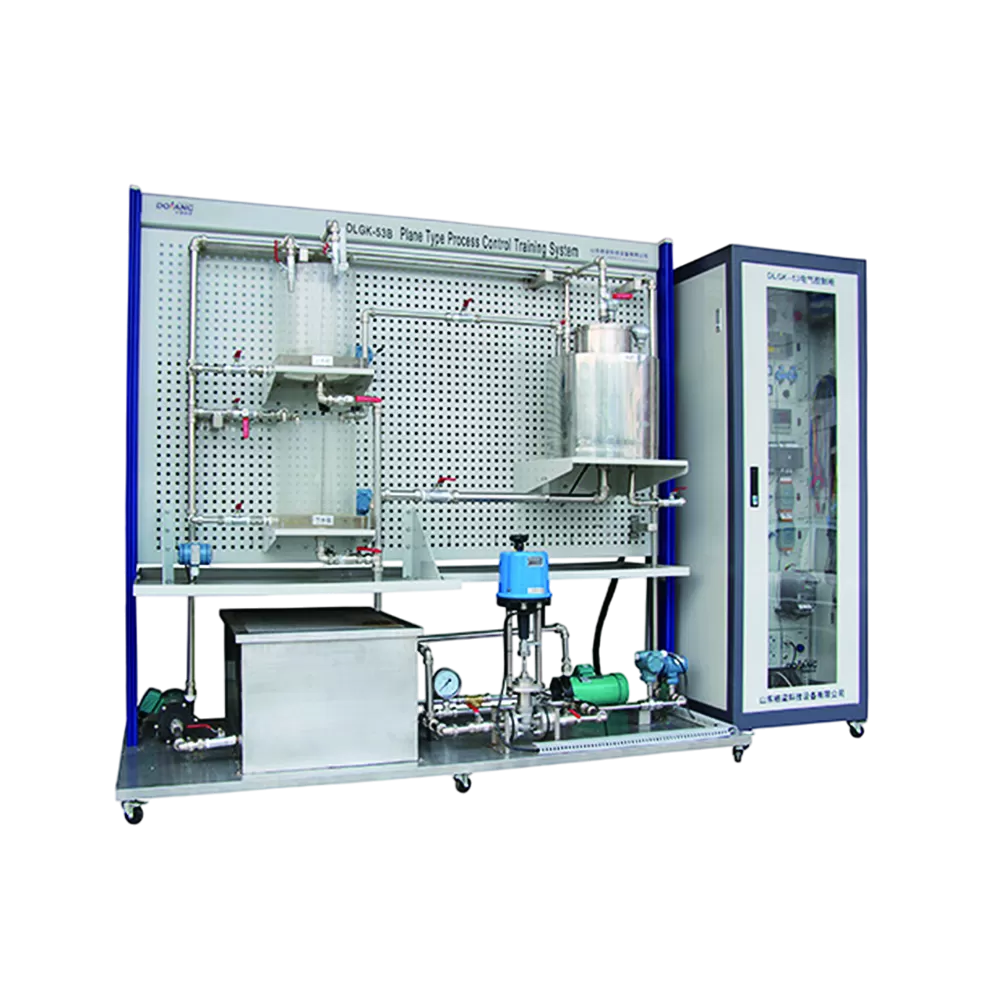

DLGK-53B process control training system, including control cabinet, process control unit and training platform. It is a physical simulation object based on industrial process. It is a multifunctional experimental device integrating automatic instrument technology, computer technology, communication technology and automatic control technology. The system includes thermal parameters such as temperature, pressure, flow and liquid level. It can realize system parameter identification, single loop control, cascade control, ratio and other control forms.
The TVET technical training equipment fully meets the training and technical teaching needs of TVET relevant courses such as automatic control principle, process control, automatic instrument, automatic detection technology and sensor, computer control and DCS distributed control.
Training Projects
- Understanding the process control system components experiments
- Understanding of the process control and detection device consisting of Boardwalk structure, composition and control system connected to the experimental program.
- Intelligent adjustment operation and parameter setting instruments, Smart meter transmitter and other smart meter.
- Calibration of the sensor (zero and span adjustments migration)
- Object properties testing laboratories
- Single-tolerance test experimental tank level mathematical model
- Dual tank water testing laboratories mathematical model
- Boiler tank temperature characteristic testing laboratories
- Single-loop control system experiment
- Single-tank water level set point control experiment
- Dual tank water level set point control experiment
- Boiler water temperature set point control experiments liner
- Single closed loop flow set point control experiment
- Boiler tank pressure set point control experiment
- Cascade Control System Experiment
- Tank level cascade control experiments
- Boiler circulating water tank water temperature and flow cascade control experiments
- Tank level and intake flow cascade control experiments
- The ratio control system experiment
- Flow Ratio Control System Experiment
- Constant pressure water supply experiments
- Workers control configuration software configuration control experiments
- All experiments were performed, including SCADA,database configuration, graphics, animation, statements, curve, alarm configuration, device communication configuration algorithm configuration and other experiments
