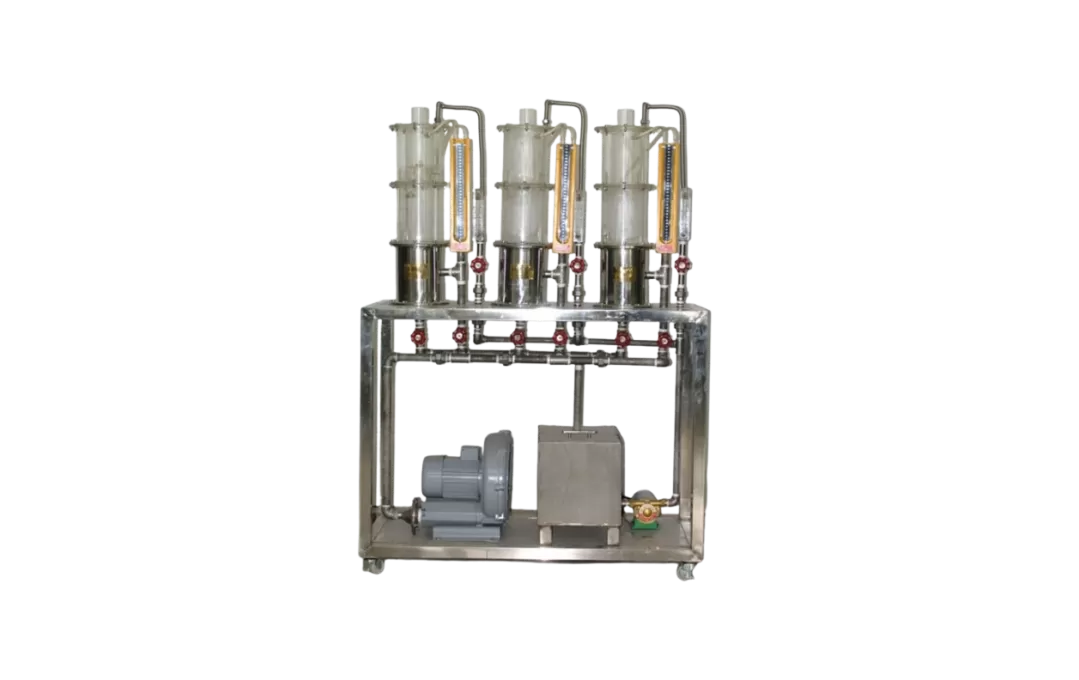

Model: DLGK-STLX Water Mechanics Training Equipment

1. Input voltage: single-phase three-wire 220V±10% 50H z

2. Working environment: Ambient temperature range is 0 ~ 40℃

3. Device capacity: AC < 2000 VA

4. Safety protection: leakage protection (operating current ≤ 2 0mA), overcurrent protection

5. Relative humidity: ≤90% (25 ℃)

6. Equipment area: ≤1200mm*670mm*1640mm (length*width*height)


DLGK-STLX Water Mechanics Training Equipment

Details Introduction

Equipment Overview

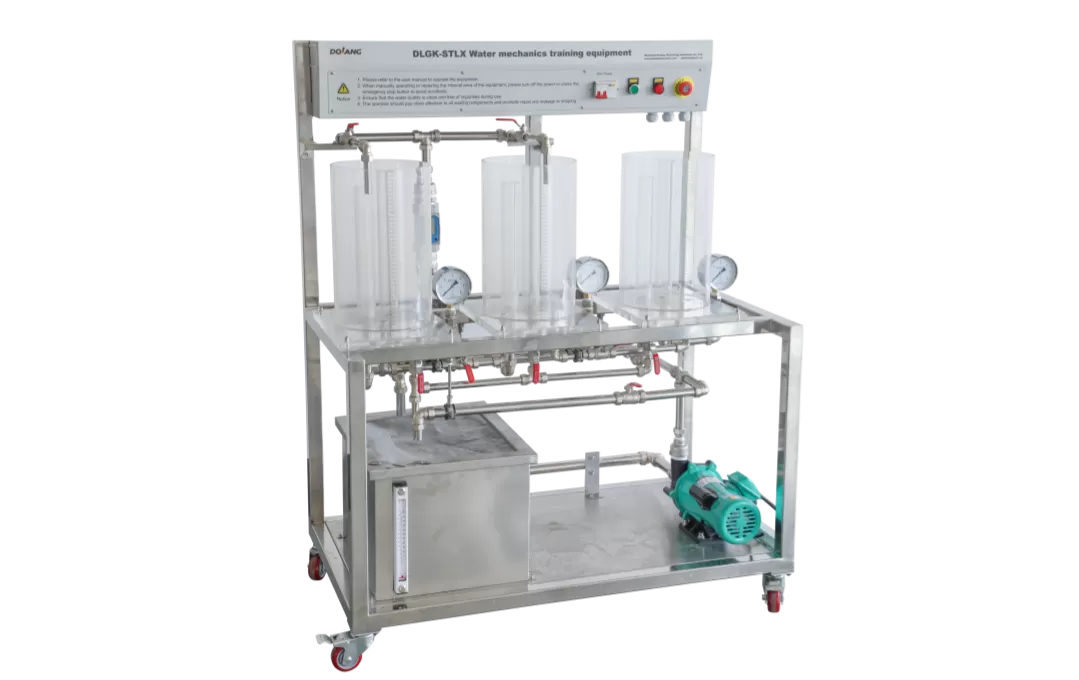

The water mechanics training equipment is mainly composed of an electrical control system, a centrifugal pump, a test bench, a raw water tank, a valve, a transparent water tank, a mechanical pressure gauge, an air release valve and pipelines .

In water mechanics education, this teaching device, which is specially used to verify the Bernoulli equation, plays an important role in helping students to deeply understand the Bernoulli equation. It mainly collects key parameters such as pressure value and water level to intuitively present the conversion relationship between kinetic energy, potential energy and pressure energy when the ideal fluid flows steadily.

Equipment Features

In the system pipeline is water , and the combination of a centrifugal pump and multiple valves is used to implement the fluid mechanics experiment of the centrifugal pump . It mainly collects key parameters such as pressure value and water level height to intuitively present the conversion relationship between kinetic energy, potential energy and pressure energy when the ideal fluid flows steadily.

Training Projects

Training 1: Valve opening experimental cognition

Training 2: Experimental understanding of the impact of parallel pipes on water flow

Training 3: Understanding of the Connecting Vessel Experiment

Training 4: Understanding the relationship between fluid height and potential energy

Training 5: Understanding the working principle of centrifugal pumps

Practice 6: Verification of Bernoulli equation
