DLGK-YLKZ Pressure Training Control System

Share:

Model: DLGK-YLKZ Pressure Training Control System

1. Input voltage: single-phase three-wire 220V±10% 50 Hz

2. Working environment: Ambient temperature range is 0 ~ 40℃

3. Safety protection: leakage protection (operating current ≤ 20mA ), overcurrent protection

4. Relative humidity: ≤90% (25 ℃)

5. DC: DC24V power supply<5A

6. Equipment dimensions ≤ 800 (length) × 500 (width) × 500 (height) mm

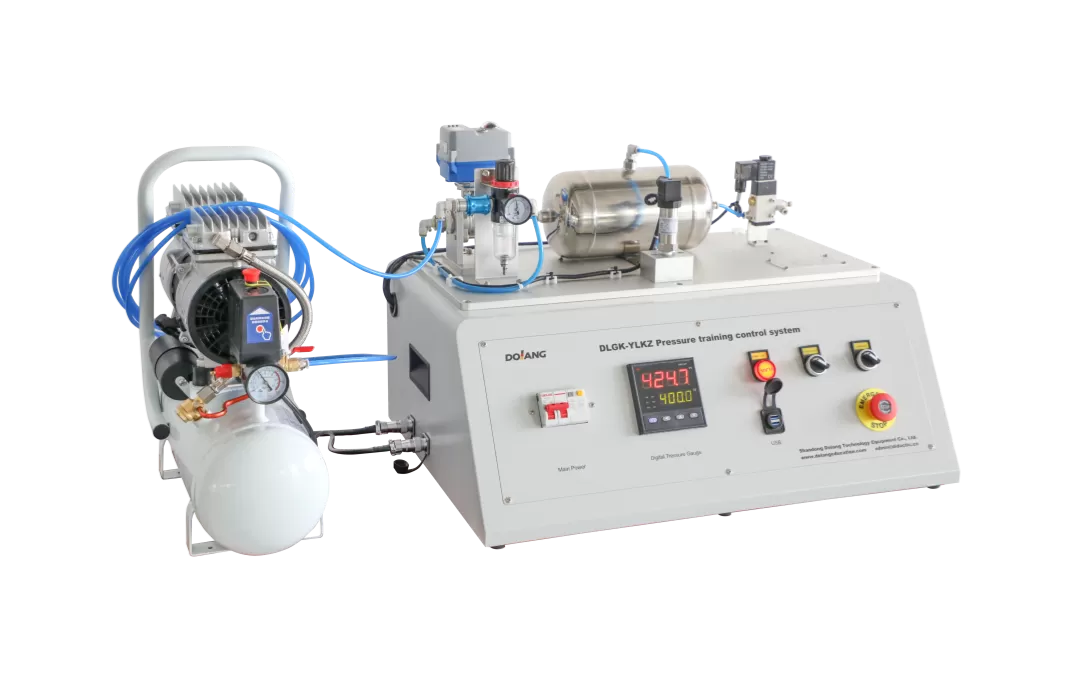

DLGK-YLKZ Pressure Training Control System

Details Introduction

Equipment Overview

Pressure training control system , the control engineering experiment pressure control training system experimental device, is designed to provide a simulation environment and practical platform for control engineering related experiments. It is suitable for colleges and universities, scientific research institutions, etc. to conduct control engineering related course teaching and experimental research, helping students and researchers to deeply understand the knowledge and skills of pressure control principles, control algorithm design and debugging, etc.


Equipment Features

The pressure training control system is a control training experimental device used to control pressure. It takes the pressure control in the tank as the core, adjusts the pressure through the electric regulating valve , and the electronic pressure sensor monitors the pressure value in real time. The solenoid valve can generate disturbances to simulate complex working conditions.

The system uses software-based control system simulation, and uses networkable software (supports Windows Vista or Windows 10 and above, connected via USB /network interface) to achieve data processing and control. There is a process diagram for easy operation and observation. The device can be used for teaching and scientific research, helping to learn and master the knowledge and skills related to pressure control.


Training Projects

Training 1. Equipment operation and maintenance

Training 2. Parameter setting and adjustment

Training 3. Simulation fault setting and diagnosis

Training 4. Troubleshooting

Training 5. Pressure control system design

Training 6. System Optimization
