Pneumatic and Hydraulic Training Equipment

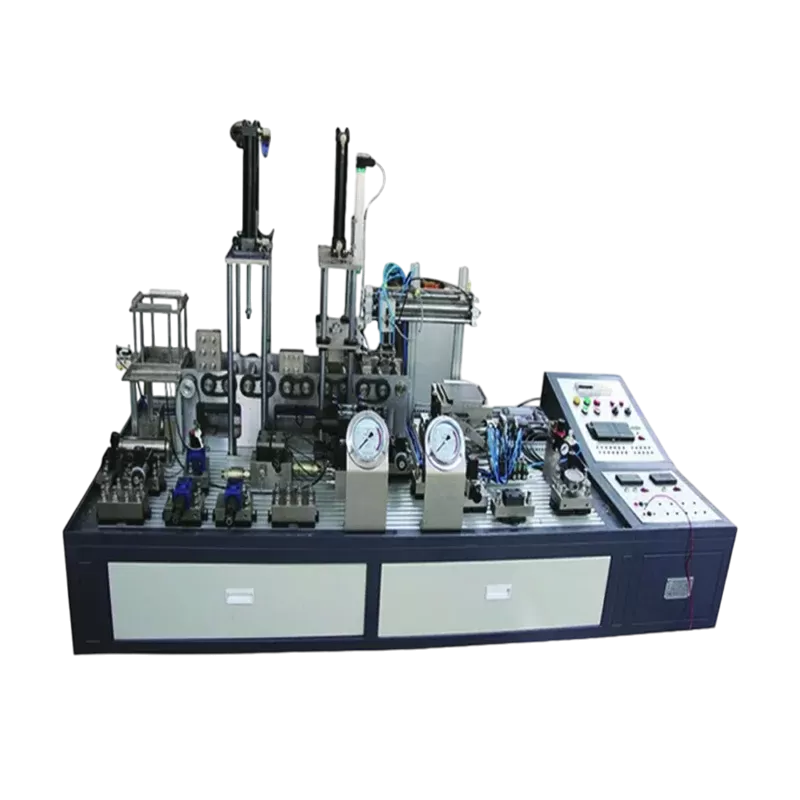

DLYY-ZHSX02 Hydraulic and Pneumatic Transmission Training System
1. Input power ：three phase four wire 380V±10% 50Hz；
2. Working environment：temperature -10℃～40℃ relevant humidity ≤85%（25℃）
3. Capacity：≤5.0kVA
4. Experiment table dimension：2200mm×900mm×1700mm

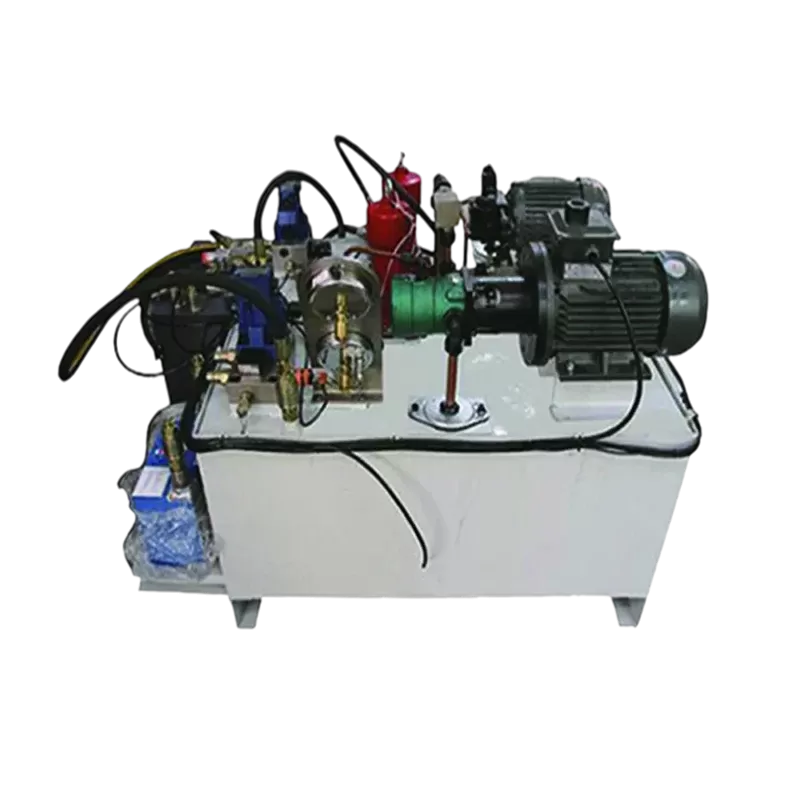

Hydraulic station dimension：1220mm×850mm×900mm
5. Safety protection：with voltage leakage protection、current leakage protection、in line with national standard
Details introduction
Equipment Overview
Hydraulic and Pneumatic Trainer consists of hydraulic training module and pneumatic training module, this Hydraulic and pneumatic transmission equipment to teach students all the application of hydraulic and pneumatic technology in industry field.
As an comprehensive training platform for application of hydraulic and pneumatic topics, most of colleges and universities buy it for practice the operation skills of students.
In hydraulic and pneumatic vocation education class, students will not only know how is the application of these technology in manufacturing workshop. Also they will know how to use and design pneumatic and hydraulic circuits to finish motions in many field. In many countries, clients building engineer technical lab, this didactic equipment is widely used.
Main Components and functions
Hydraulic power unit、all related valves, PLC module, other manual valves, manual cylinder, and all related modules based on teaching demands, ect.
Optional type:
Note: optional simulation software
Training Projects
-Learn principles of hydraulic and pneumatic control
-Learn designing of hydraulic and pneumatic circuits
-Know how to use different valves and cylinders
-Programming by PLC control technology
