Pneumatic and Hydraulic Training Equipment

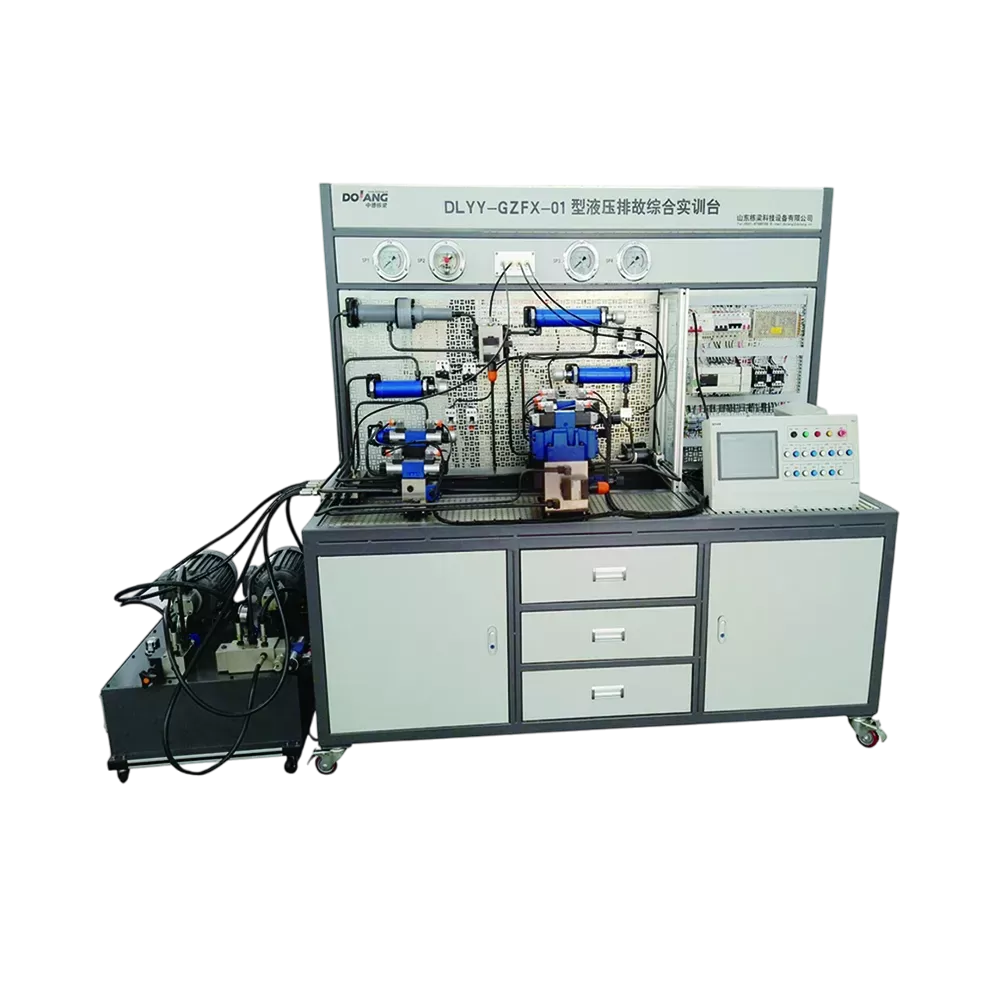

DLYY-GZFX01 Hydraulic Troubleshooting Training System
1. Power supply: three-phase four-wire to 380+10%50Hz
2.System rated pressure 7 Mpa, rated flow 16 L/min
3. Dual motors: rated power 1.5kW, speed 1420r/min, insulation B
4. Fuel tank: size 650mm (long) *600mm (wide) *200mm (high);
5. Size of the test-bed: 1900mm (long)*720mm (wide)*1800mm (high)
Details introduction
Equipment Overview
This hydraulic troubleshooting training equipment is a typical fault asset training system for hydraulic training field, students can learn not only basic hydraulic trainer but also electro hydraulic training system. And teachers can use troubleshooting function to train student how to fix problem in hydraulic circuits.
Such as university, vocational college, and technical institute, all of them can buy this equipment in their hydraulic training lab.
Main Components and functions
Double Pump Hydraulic Station,Training Operator,Hydraulic troubleshooting system,Sensor module is equipped with commonly used sensor module and hydraulic module to complete system operation state detection,Electrical control system,Hydraulic software
Training Projects
-Learn theoretical part related to manu
-Learn how to set hydraulic circuits
-Learn how to application kinds of valves
-Learn PLC control technology
-Learn software programming
