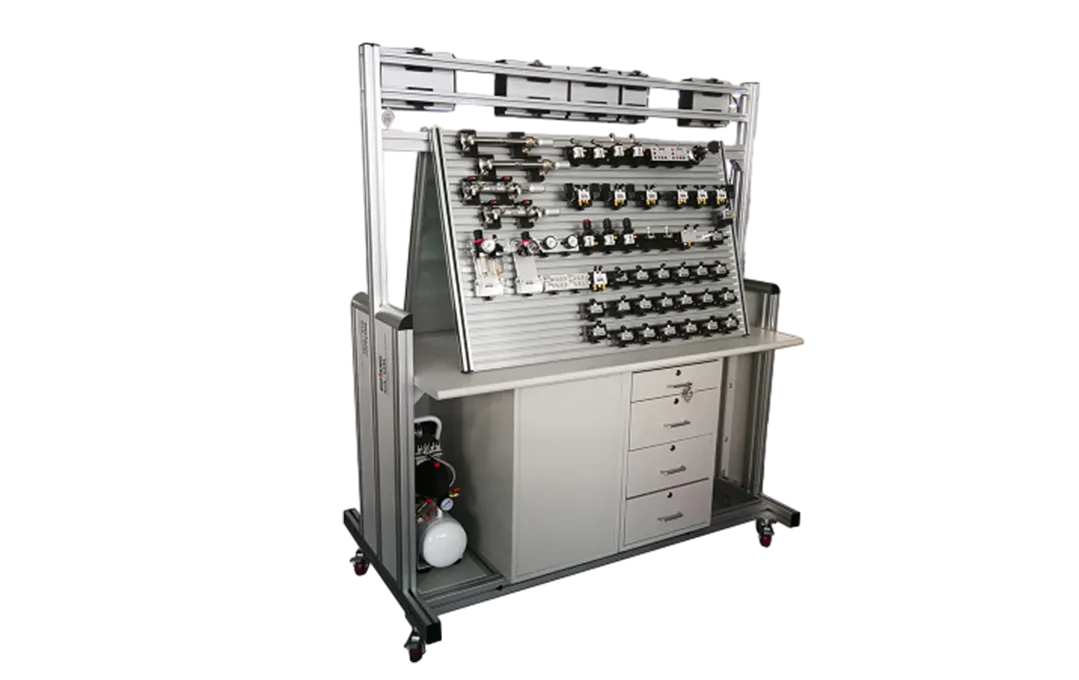

Pneumatic and Hydraulic Training Equipment
1. DC power: input, AC 220V, Output: DC 24V/5A
2. Air compressor (basic equipment minimal machine): power: AC 220V±10% 50Hz motor power: 600W
3. Nominal volume: 9L nominal output pressure 0.7MPa, noise degree: 66dB
4. Groove interval: 25mm
5. Table top structure: 1
6. With crack slot truckle: 4
Details Introduction
Overview
Pneumatics learning system is designed for fulfilling the practical training and teaching demands from vocational colleges, it can meet vocational education demands for learning the principle of pneumatic transmission and the use of all pneumatic industrial components. How to set pneumatic wires with different cylinders. pneumatic trainer kit, pneumatic trainer with different configuration and components can be choose from our different types list to meet different budget and teaching demands.
Main Components and Functions
Silence Air compressor, Manifold block, Double-acting cylinder, etc.
Training Projects
-Basic control pneumatic circuit training projects.
-kinds of cylinder operation and application,
-PLC control technical application(optional type)
-How to apply for Relay control
-Other comprehensiveness, expansibility experiment type pneumatic circuit.
Optional type with different configuration

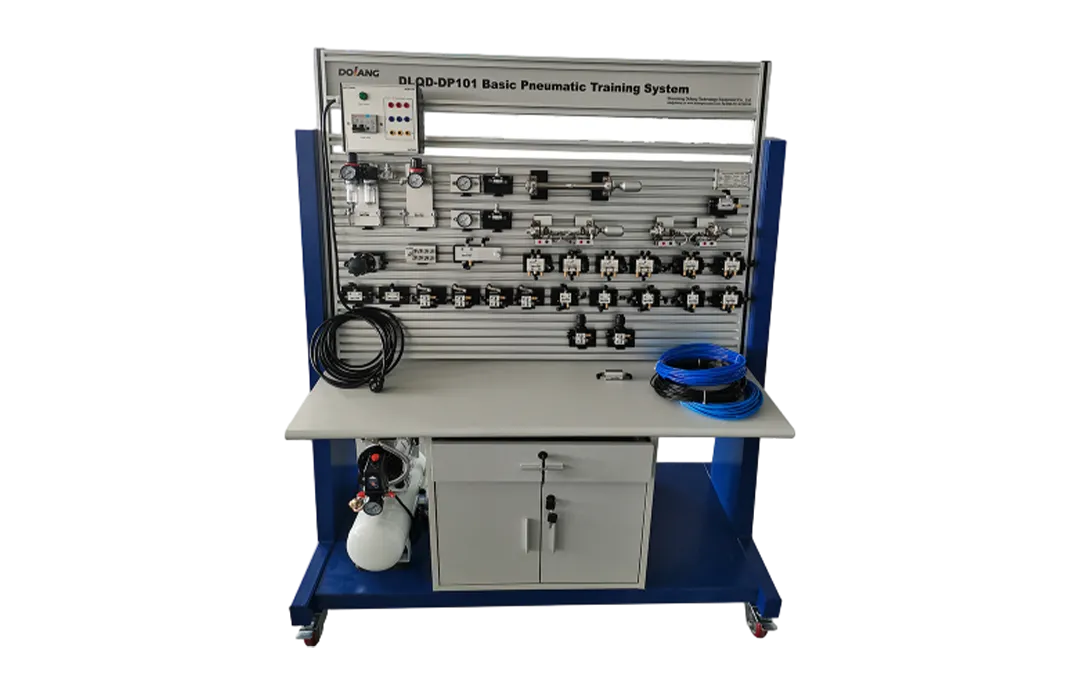

DLQD-DP101 Basic pneumatic training system with manual cylinders.

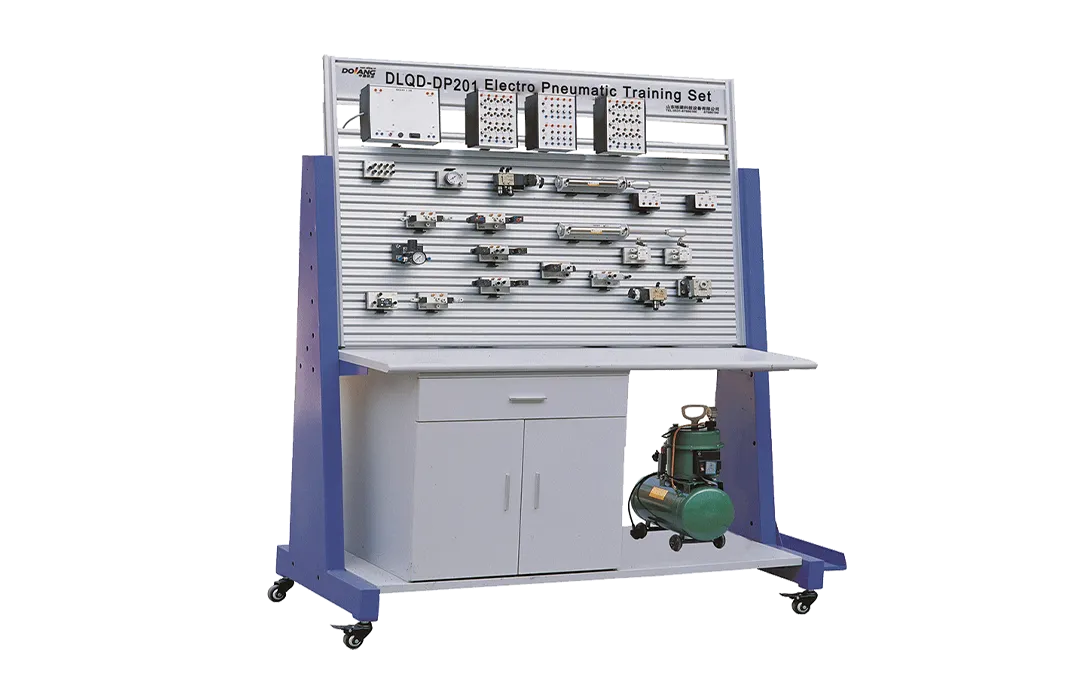

DLQD-DP201 Electro-Pneumatic Training System with electro solenoid valves, with electrical modules
DLQD-DP202 Advanced Electro-Pneumatic Training System with PLC moduels
DLQD-DP301 Proportion Pneumatic Training System
DLQD-DP401 PLC integrated transmission training system
| DLQD-DP101 | Basic Pneumatic Training System | Without Electro parts and PLC module |
| DLQD-DP201 | Basic Electro Pneumatic Training System | Without PLC module |
| DLQD-DP202 | Electro Pneumatic Training System | With Electro parts and PLC module |
| DLQD-DP301 | Proportional Pneumatic Training System | With Proportional Pneumatic module |
| DLYY-DP401 | Double-Side PLC integrated Pneumatic Training System | Double-side bench, With PLC module |
DLQD-DP101 | DLQD-DP201 | DLQD-DP202 | DLQD-DP301 |
