Model: DLPLC-YTHH Liquid Mixing Training System
1. Power input
1.1 24V DC power supply
2. Working environment: - 10 ~ 40 ℃
3. Training platform
Overall dimension: 600 * 400 * 1000mm (L * w * h)
PLC Training Equipment
Model: DLPLC-YTHH Liquid Mixing Training System
1. Power input
1.1 24V DC power supply
2. Working environment: - 10 ~ 40 ℃
3. Training platform
Overall dimension: 600 * 400 * 1000mm (L * w * h)
Details introduction
Equipment Overview

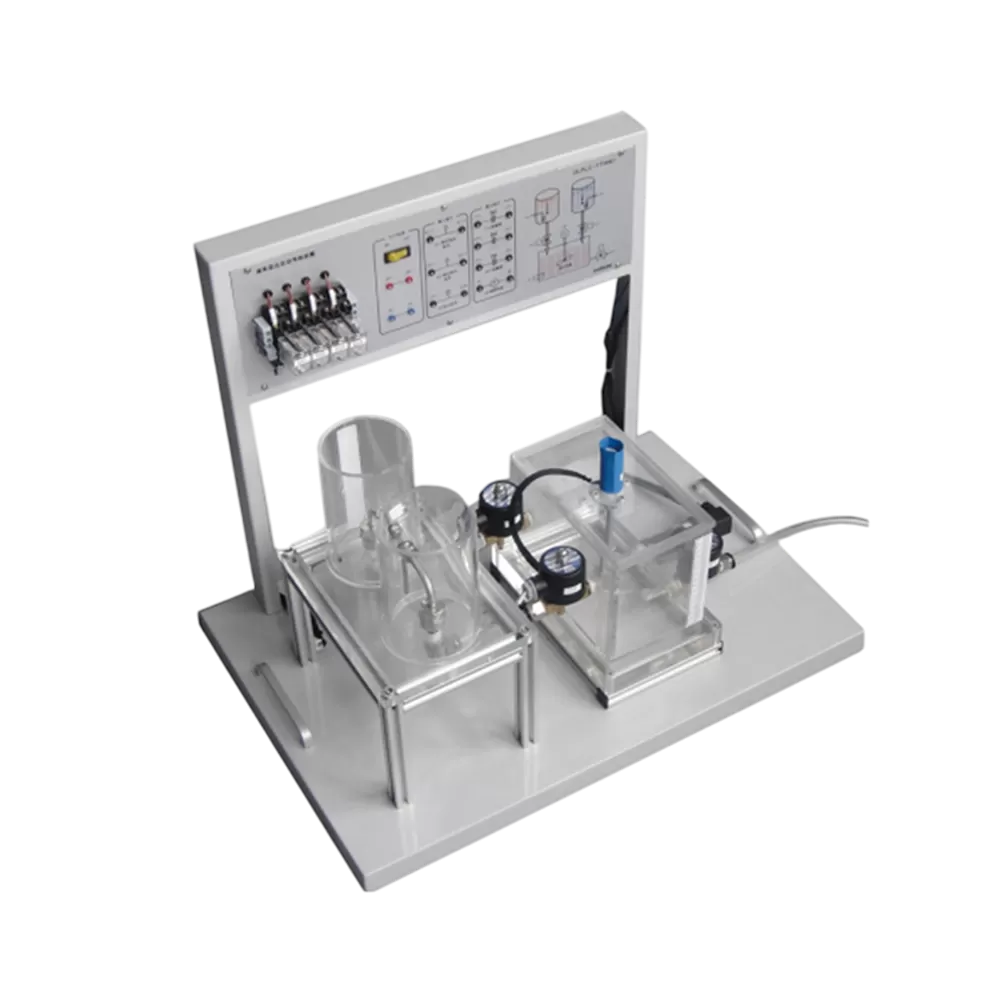

DLPLC-YTHH liquid mixing training system is a tvet education equipment practical training system integrating PLC, liquid level sensor and solenoid valve. Through sensor signal acquisition and PLC programming, the system carries out complex switching value control and sequential logic control for solenoid valve, water pump and DC reduction motor, so as to realize the automatic control function of liquid mixing.
Equipment Features
1. The PLC training model is composed of a mixing system and a storage system. The two liquids are respectively transported to the mixing part according to the procedure; The mixing motor can drive the mixing impeller to rotate and stir the mixed liquid; The PLC teaching set has a solenoid valve is installed at the lower end of the mixing system to control the flow of mixed liquid to the storage system.
2. The electrical aspect consists of DC reduction motor, sensor, limit switch, solenoid valve, etc.
3. The training system adopts modern information technology means of computer simulation, and solves the problem of disconnection between previous professional training theory, experiment, practice and practical application through three training levels of operation, simulation and simulation.
Training Projects
- single step control experiment
- automatic step test
- timed operation test
- continuous mixing experiment and other training projects.
