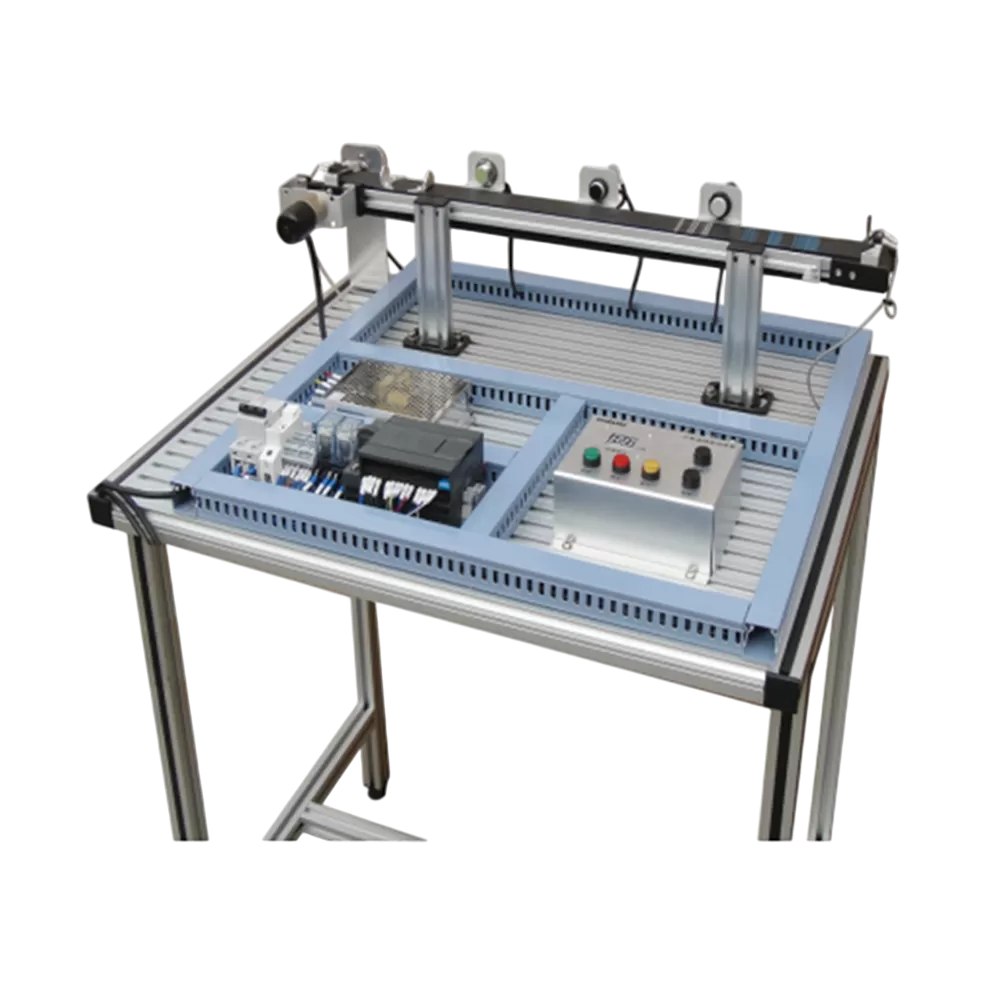

Model:DLPLC-XCYD1 Trolley Motion Training Equipment
1. Power input: 24V DC power supply
2. Overall dimension: 1200 * 750 * 1500mm
3. Working environment: - 10 ~ 40 ℃
PLC Training Equipment
Model:DLPLC-XCYD1 Trolley Motion Training Equipment
1. Power input: 24V DC power supply
2. Overall dimension: 1200 * 750 * 1500mm
3. Working environment: - 10 ~ 40 ℃
Details introduction
Equipment Overview
Trolley Motion Training Equipment is a practical training system integrating proximity sensor, DC reduction motor, limit switch, solenoid valve, etc. through sensor signal acquisition, the switching value control and timing logic control of DC reduction motor are carried out to realize the automatic feeding control function.This equipment is produced by a professional plc training equipment company.This equipment is an educational plc training kit.
The PLC Learning System is applicable to the learning and application training of programmable controller for vocational education, pre job training of students and retraining of employees. It can not only meet the requirements of colleges and universities and vocational schools for PLC experimental teaching and relevant course design and assessment, but also serve as the training equipment for engineering and technical personnel.
Equipment Features
The automatic feeding training device is composed of transmission device, detection device and handling device. The DC reduction motor drives the trolley through the synchronous belt. The sensor collects the signal, and the PLC controls the trolley for accurate positioning control to complete the loading, unloading and handling of materials.
The training platform adopts special mold profiles, which are treated by anodizing and spraying, with scientific structure and beautiful appearance. There is a regulator at the bottom, and the height is adjustable to ensure stability; The device adopts the safety test wire and connector customized by the company, which exceeds the mil standard of the U.S. military and the international IEC standard. No electric shock when touched by hands.
Application range: Elevator training, PLC control teaching, lift training, Factory automation engineer training, PLC training, Electrical control training, engineer training model, TVET Technical Vocational Education Training equipment, sensor technology, mechanical technology training etc
Training Projects
- proximity sensor detection test
-limit switch protection test
-single step operation test
- movement distance measurement
-drive control
- positioning control
- alarm operation control
- inching control
- position display control
