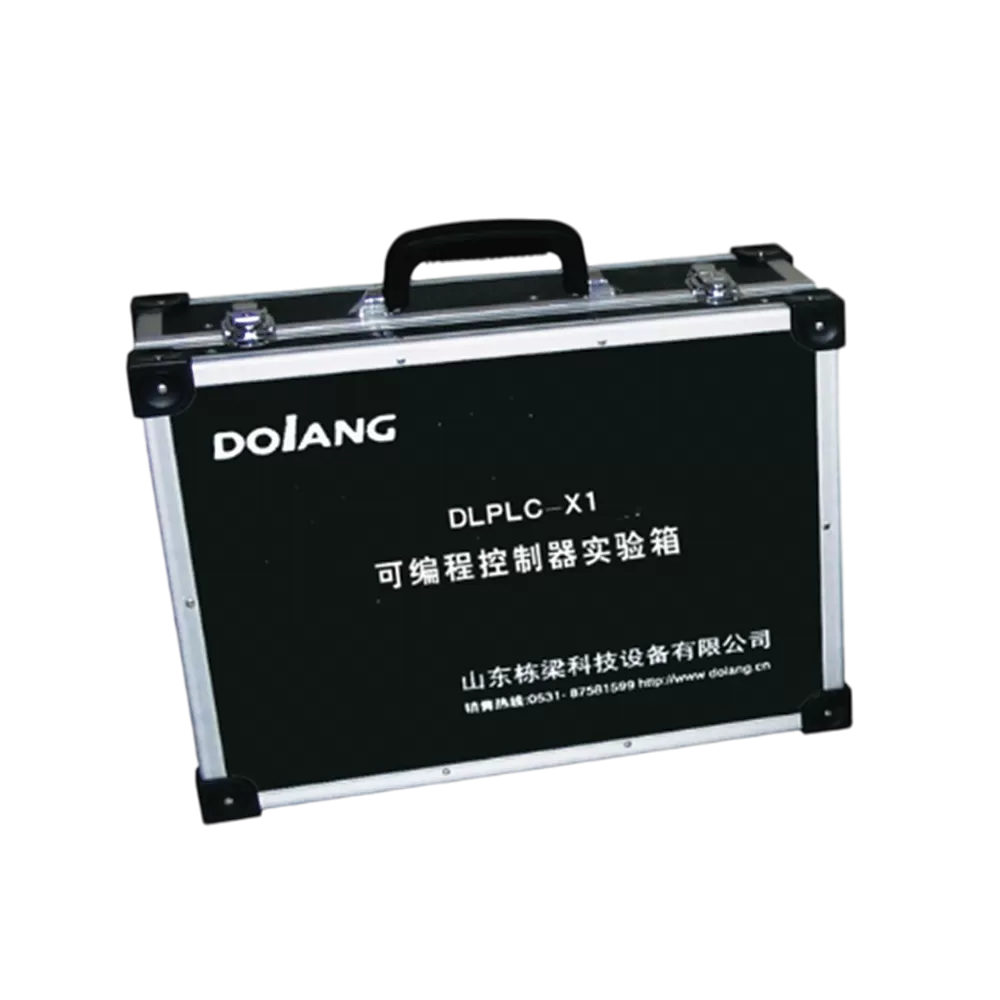

DLPLC-X1 Portable PLC training set box

Model: DLPLC-X1 PLC training set

1. Input power supply: single phase three wire AC220V ± 10% 50Hz

2. Working environment: temperature -10℃ - +40℃, relative humidity < 85% (25℃), altitude < 4000m

3. Unit capacity: < 250VA

4. Weight: 8kg

5. Overall dimension: 470mm × 375mm × 190mm

Inquire Now

Details introduction

Equipment Overview

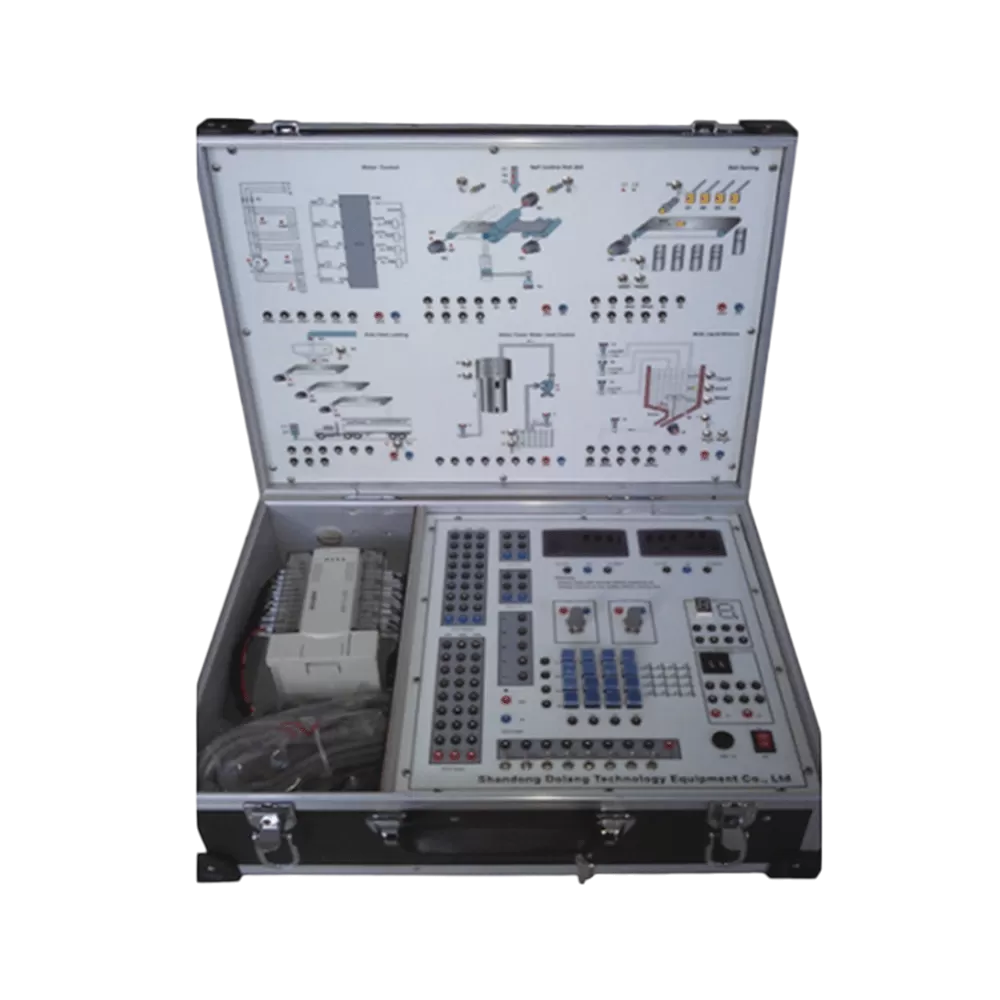

DLPLC-X1 PLC training set is a Portable PLC training kits developed for vocational and technical education, which is mainly composed by the PLC and dozens of experimental units. The experimental units are designed according to different knowledge points of PLC, such as: responder, traffic intersections. The experimental plc training system box can be configured with modules of different brands and different types.

Equipment Features

The model compose PLC and different kinds of training object module. And the box can be configured with modules of different brands and different types.

Application range: Portable PLC training, PLC technology teaching, automation engineer training, PLC training, Electrical control training, engineer training model, TVET Technical Vocational Education Training equipment, sensor technology, mechanical technology training etc

Training Projects

Experimental items that can be completed:

- Motor forward start

- Motor reverse start

- Y - △ start of motor

- Water level control of water tower

- Multiple liquid mixing control

- Sorting control of multiple mails

- Automatic traffic light control
