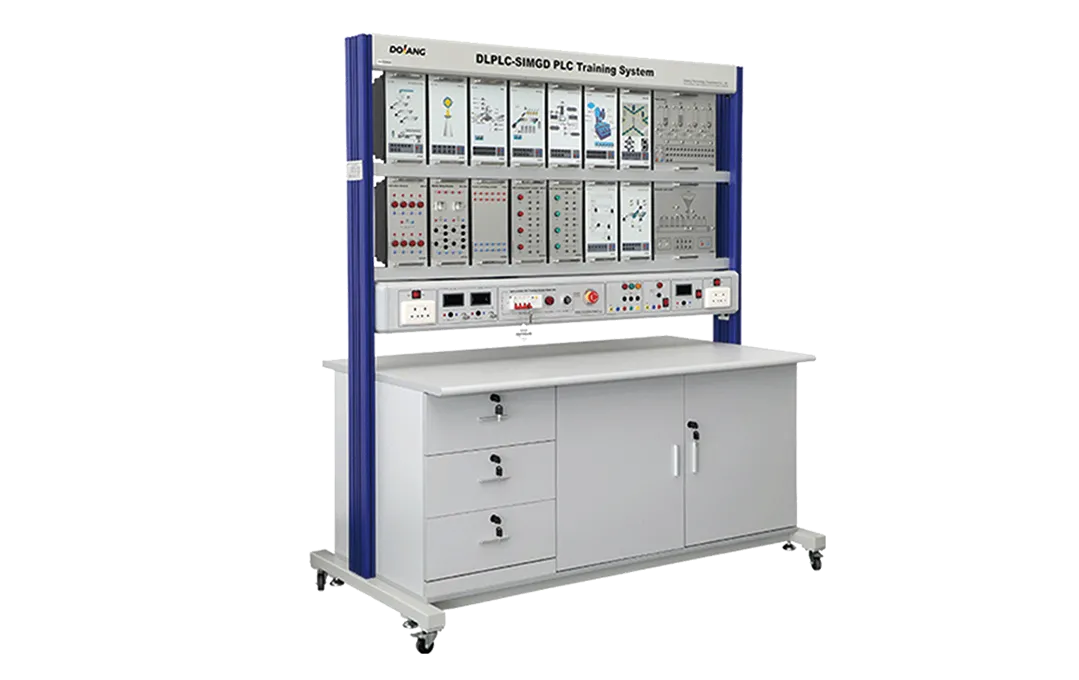

DLPLC-SIM Series PLC Comprehensive Training System

Model: DLPLC-SIM Series PLC Comprehensive Training System

1. Input power supply: three-phase five wire AC380V ± 10% 50Hz

2. Working environment: temperature - 10 ℃ - + 40 ℃, relative humidity < 85% (25 ℃), altitude < 4000m

3. Power control: the automatic air switch turns on and off the power supply, with overvoltage protection, undervoltage protection, overcurrent protection and leakage protection systems.

4. Output power supply:

(1) Three phase AC 380V ± 10% 50Hz; single phase AC 220V ± 10% 50Hz.

(2) DC regulated power supply: 24V / 2A

(3) One set of 0 ~ 10V adjustable DC regulated power supply and one set of 4 ~ 20mA adjustable current.

5. Overall dimension: 1800mm × 700mm × 1800mm

6. PLC brand can be optional (Siemens, Mitsubishi, Omron, etc)

Optional model:

Siemens PLC: DLPLC-SIMGD, DLPLC-SIMGW, DLPLC-SIMGA,

Mitsubishi PLC: DLPLC-FXGD, DLPLC-FXGW, DLPLC-FXGA etc

Inquire Now

DLPLC-SIM Series PLC Comprehensive Training System

Details Introduction

Equipment Overview

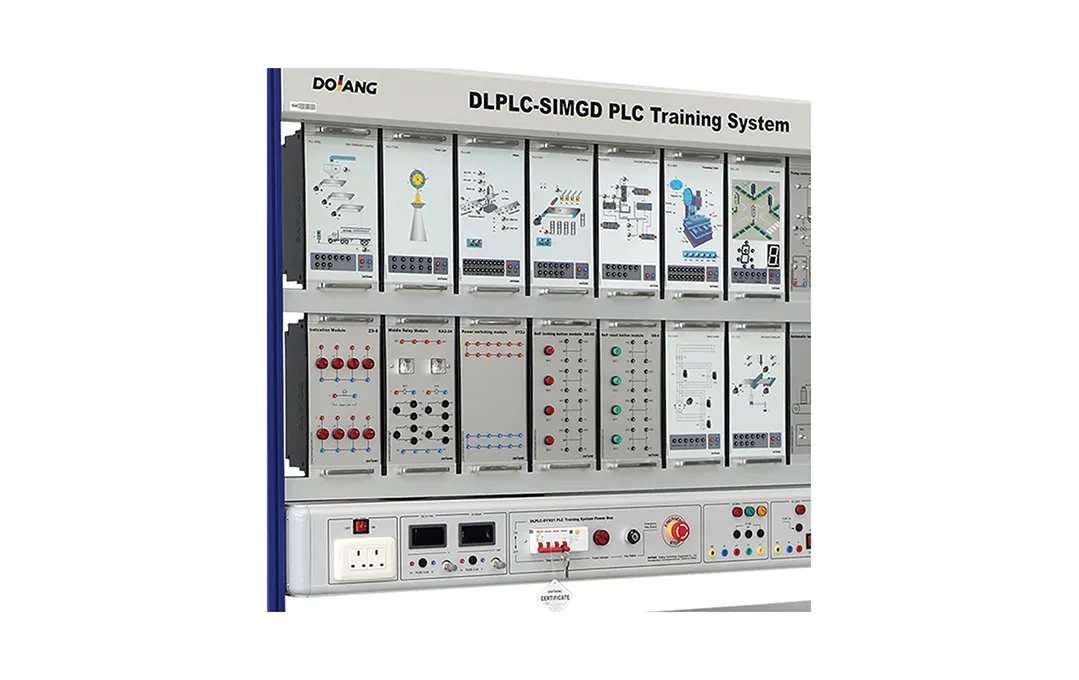

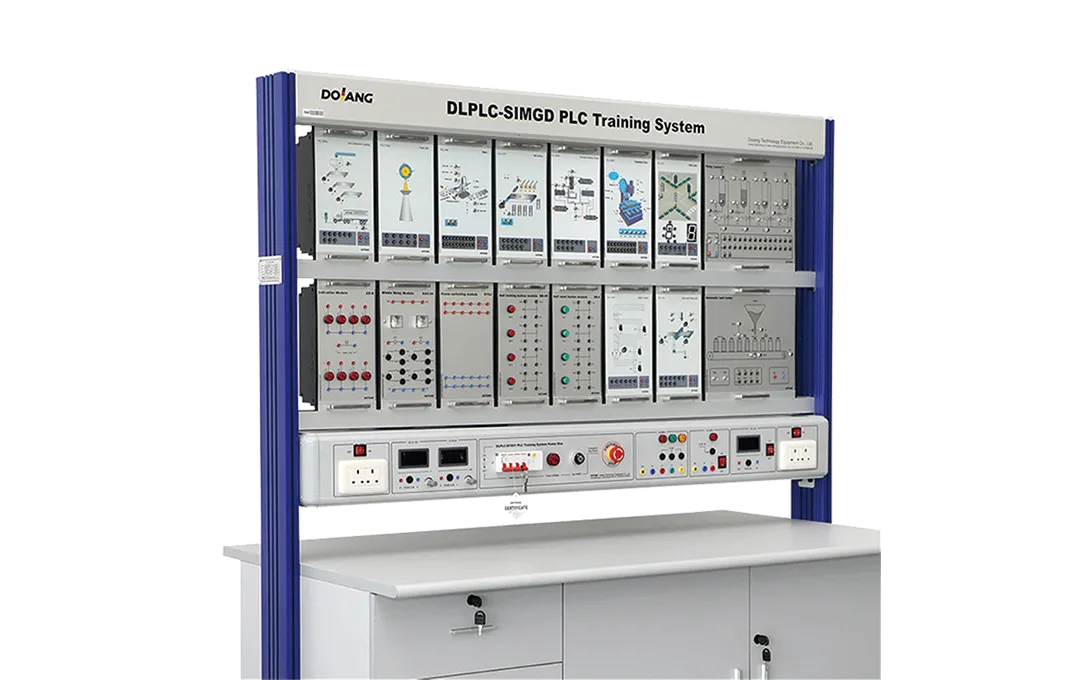

DLPLC-SIM series PLC comprehensive training system is a professional PLC training bench developed for Vocational and technical education. it integrates programmable controller (Siemens SR40), simulation teaching software, and simulation control experiment board. In order to combine teaching requirements, a variety of domestic textbooks were referred to in the design process, and 6 groups of the most typical experimental projects were selected. The supporting communication programming cable provides the required 24V/5A power supply. The plc trainer has functions such as leakage protection, power short-circuit protection, and transistor output protection.

Function Features

PLC trainer can be used as a supporting teaching experimental equipment for relevant teaching materials such as programmable logic controller technology, programmable logic controller principle and its application, maintenance electrician, PLC application technology, PLC principle and application, It can also be used for qualification assessment, graduation design, curriculum design, interest development, etc.

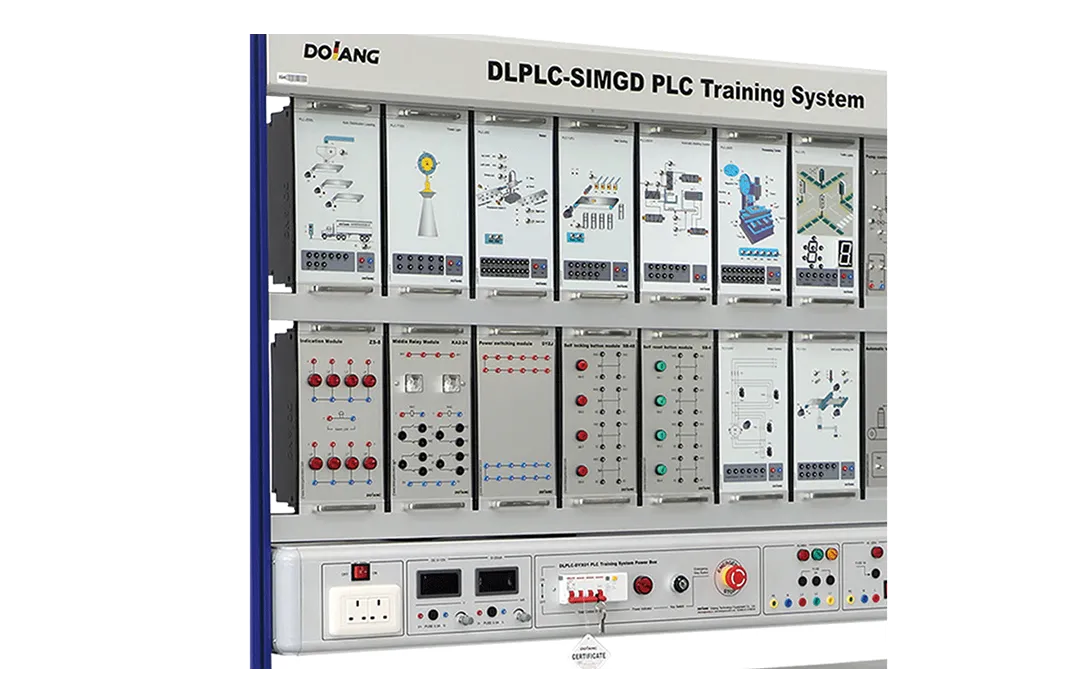

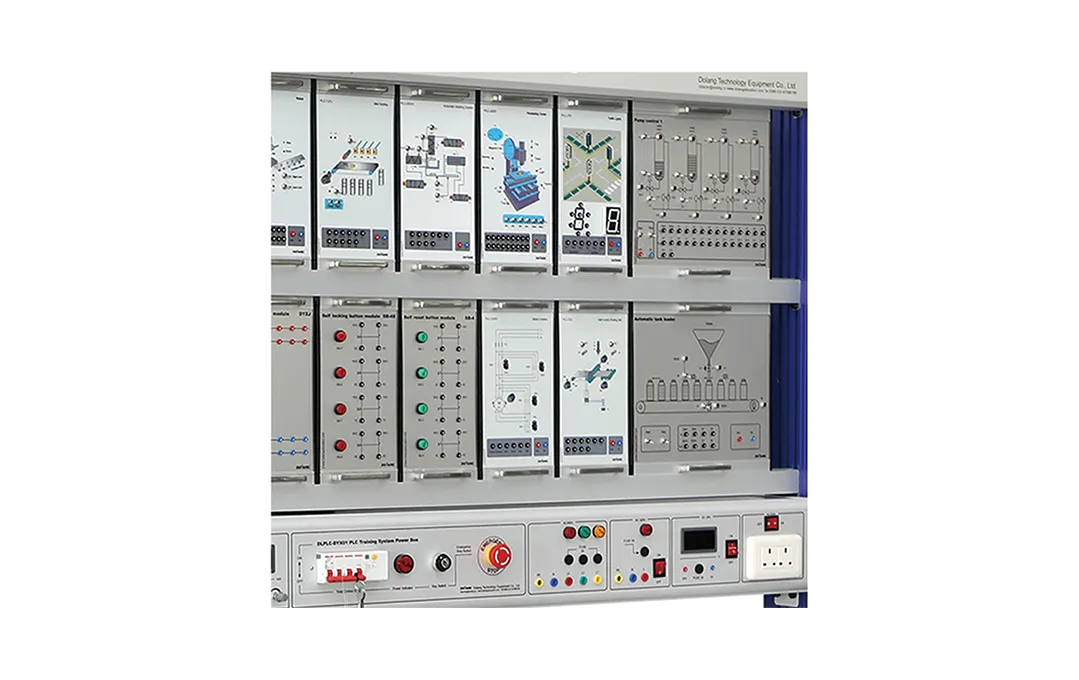

The PLC technician training experiment hanging boxes integrate various typical PLC training modules including responder, the automatic control of tower level, automatic feed loading, tower sky, which can be very convenient to complete the basic training of PLC etc.

Application scope: PLC technology training, PLC teaching, engineer training, vocational college training, Electrical control training, engineer training model, TVET Technical Vocational Education Training equipment, sensor technology, mechanical technology training

Training Projects

-PLC control motor forward and reverse control experiment

-PLC controlled motor star delta start control experiment

-Display experiment of seven segment nixie tube

-Responder control experiment

-Light control experiment of Tianta

-Intersection traffic light control experiment

-Water level control experiment of water tower

- Control experiment of automatic feeding and loading system

-Mail sorting control experiment

-Siemens touch screen training

-The touch screen controls the temperature and pressure detection experiment through PLC
