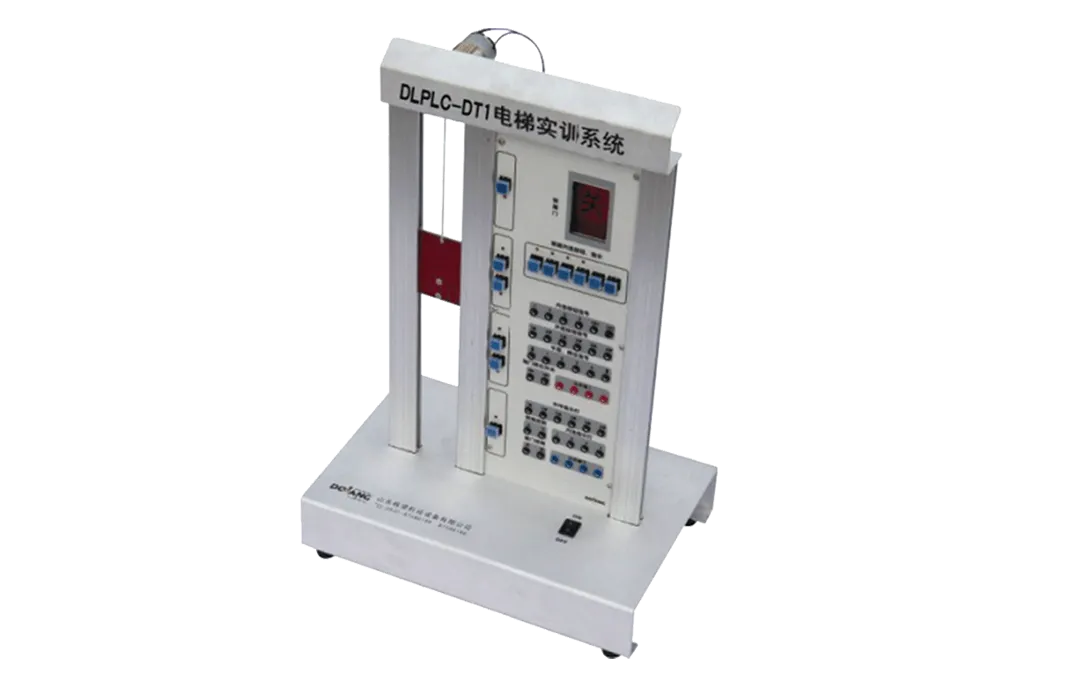

DLPLC-DT1 Elevator Training System

Model: DLPLC-DT1

Dimension: 600*400*1000mm or so

Power voltage: single phase AC220V ±10% 50Hz or other (customized)

Warranty: 1 year

Certificate: ISO, CE,SGS

Inquire Now

Details Introduction

Equipment Overview

DLPLC-DT1 elevator training device is one kind of PLC execute training object, the training equipment is composed of floor, car, stroke limit institutions, call light, car door, control panel, control motor, sensor, actuator, etc. the PLC training kit can collect all kinds of signals, such as inner-choose button signal, outer-choose button signal, floor limit signal, elevator threshold signal, can realize the logic control; it is able to do two groups of car elevator and the elevator door switch control, and can combine experiment; Have up and down and open-close door hardware power-off protection function, effectively avoid motor offside operation fault;

Features

1.The training platform have Protection function: it has the power-off protection function of lifting and opening and closing hardware to effectively avoid motor offside operation fault.

2. Application range: Elevator training, PLC control teaching, lift training, Factory automation engineer training, PLC training, Electrical control training, engineer training model, TVET Technical Vocational Education Training equipment, sensor technology, mechanical technology training etc

Training Project

- Elevator door opening and closing control test

- control experiment of selective lifting and door opening and closing on the second floor`

- three floor internal selection lifting control experiment

- four floor internal selection lifting control experiment

- third floor outbound call lifting control experiment

- third floor outbound call lifting and door opening and closing control experiment

- fourth floor outbound call lifting control experiment

- comprehensive control experiment of three storey elevator

- training items such as comprehensive control experiment of four storey elevator
