DLPLC-DCD1 Belt Drive Training Equipment

Model: DLPLC-DCD1 Belt Drive Training Equipment

1. Power input: single phase three wire AC220V ± 10% 50Hz

2. Working environment: - 10 ~ 40 ℃

3. Overall dimension: 1200 × seven hundred and fifty × 1350mm

4. Overall capacity: < 200va

5. Training platform

The training platform is made of aluminum profile and anodized, with beautiful appearance, regulator at the bottom and overall stability.

6. Air source:

Voltage : 220V / 50Hz

Air tank volume: 9L

Inquire Now

DLPLC-DCD1 Belt Drive Training Equipment

Details introduction

Equipment Overview

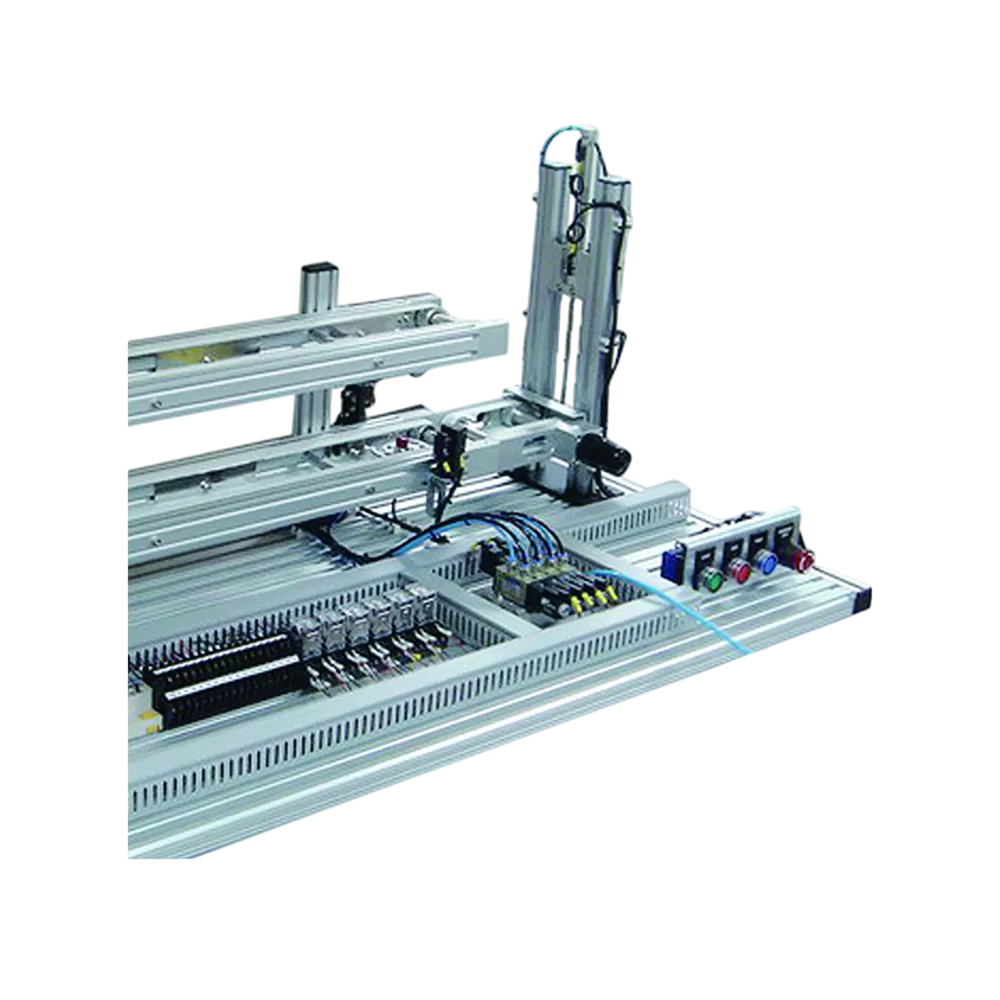

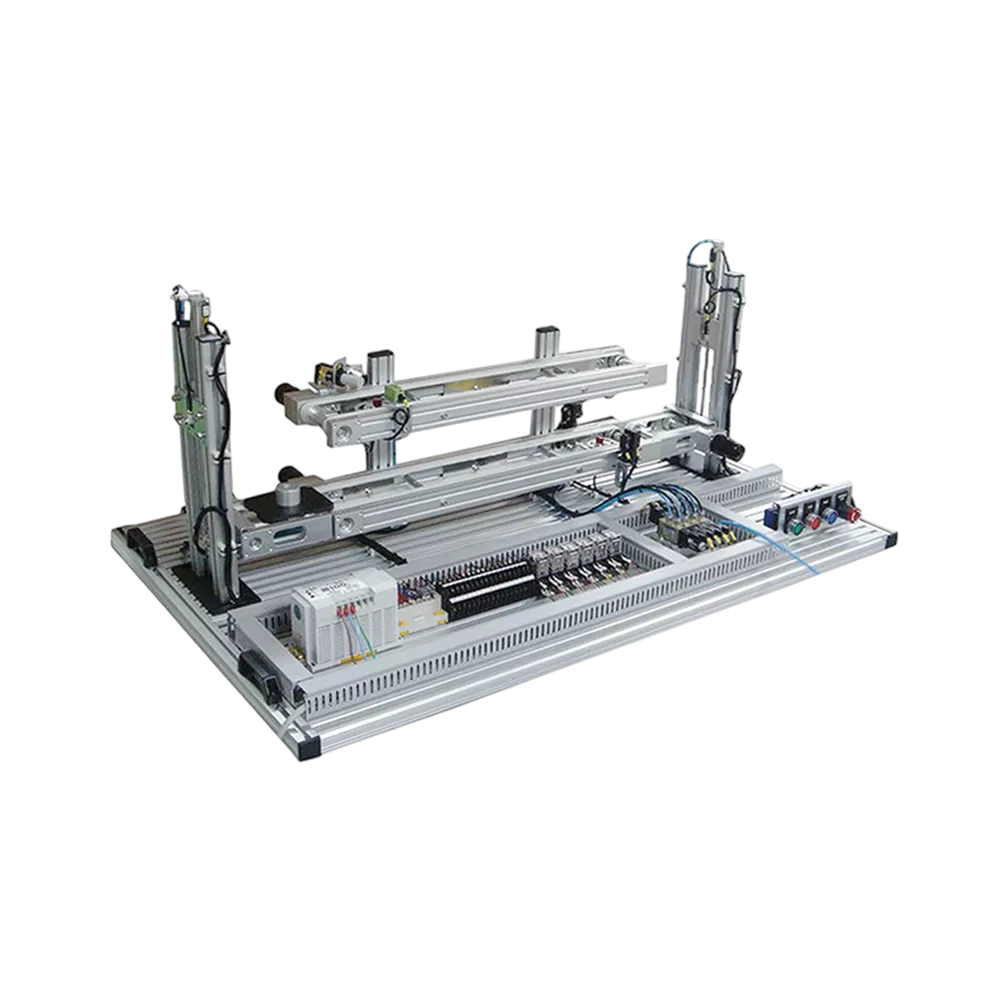

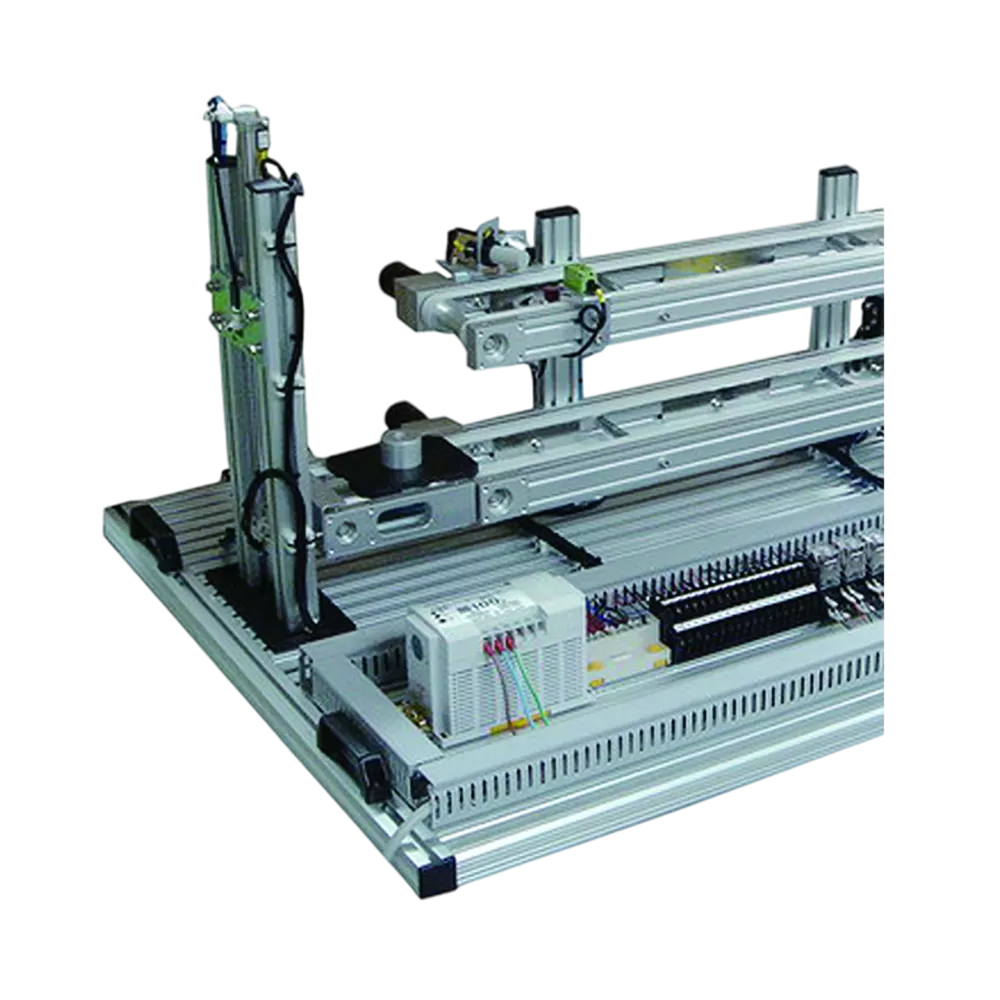

This plc training kit called Belt Drive Training Equipment,which is composed of two-layer circulating conveyor belt unit, material tray lifting unit, button unit and other components. In the process of use china plc trainer equipment, a number of application technologies involved in the study of mechatronics, such as motor drive control, mechanical transmission, pneumatic control, sensor and so on, provide students with a typical system comprehensive training environment, So that students' professional knowledge can be comprehensively and comprehensively deepened, consolidated and flexibly applie by the plc training kits.

Equipment Features

The PLC training system may be used for the TVET technical engineer training of basic skills, professional skills and job skills through project content, project analysis, project implementation, project summary and ability assessment.

Application range: belt drive training, PLC control training, transmission belt training, Factory automation engineer training, PLC training, Electrical control training, engineer training model, TVET Technical Vocational Education Training equipment, sensor technology, mechanical technology training etc

Training Projects

-Variety of sensor applications

- The assembly and disassembly of mechanical parts and electrical parts - system fault diagnosis and maintenance

- Pneumatic circuit adapter tube and electrical connections

- The design and application of sorting transmission

- Find mistakes and correct electrical circuit

- PLC basic instruction practice

- Electric circuit connection

- Instruction program writing
