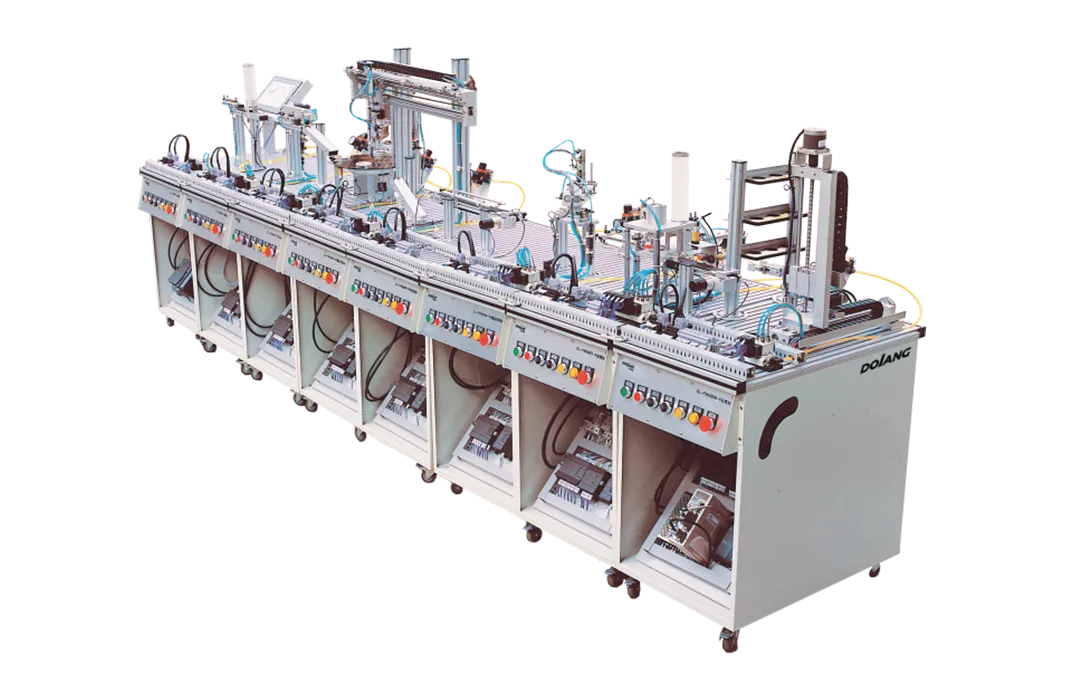

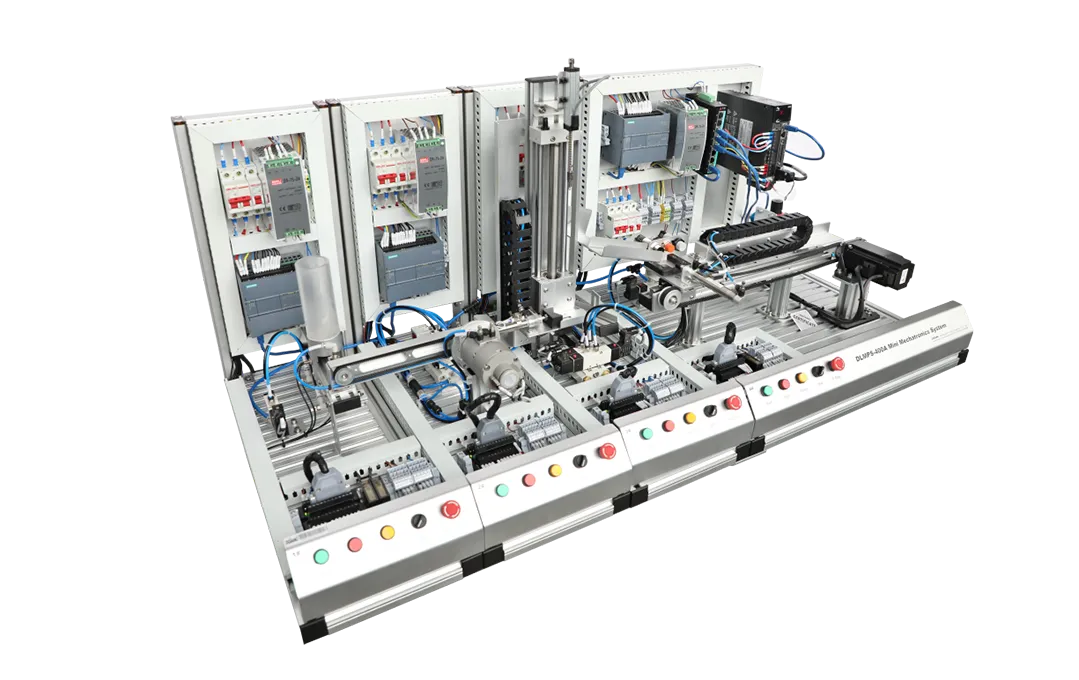

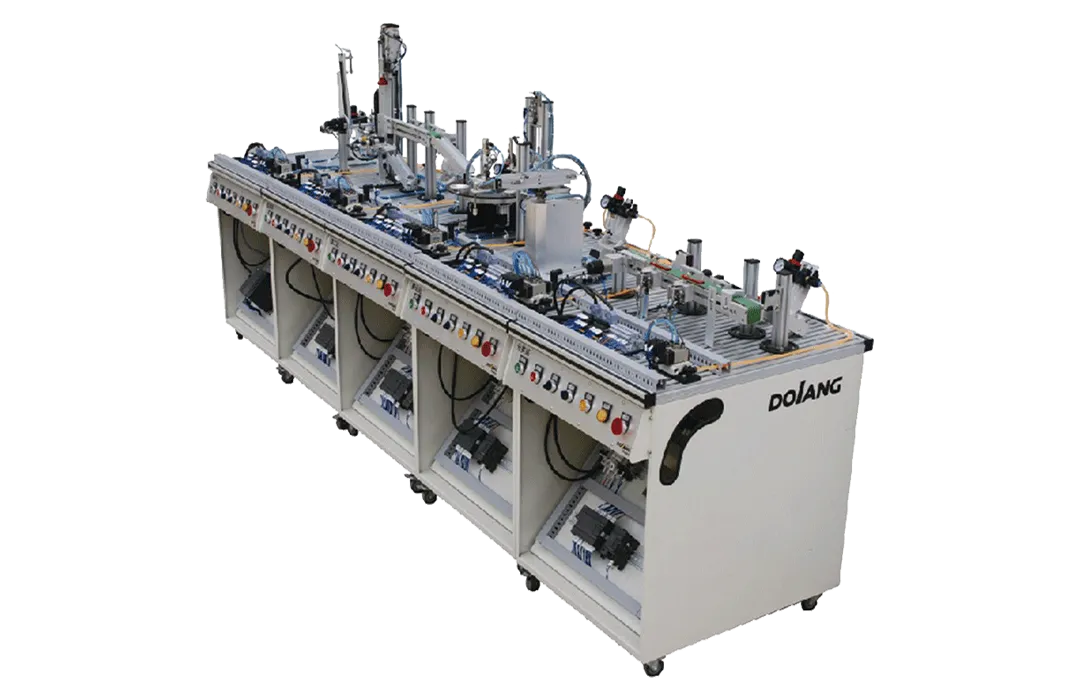

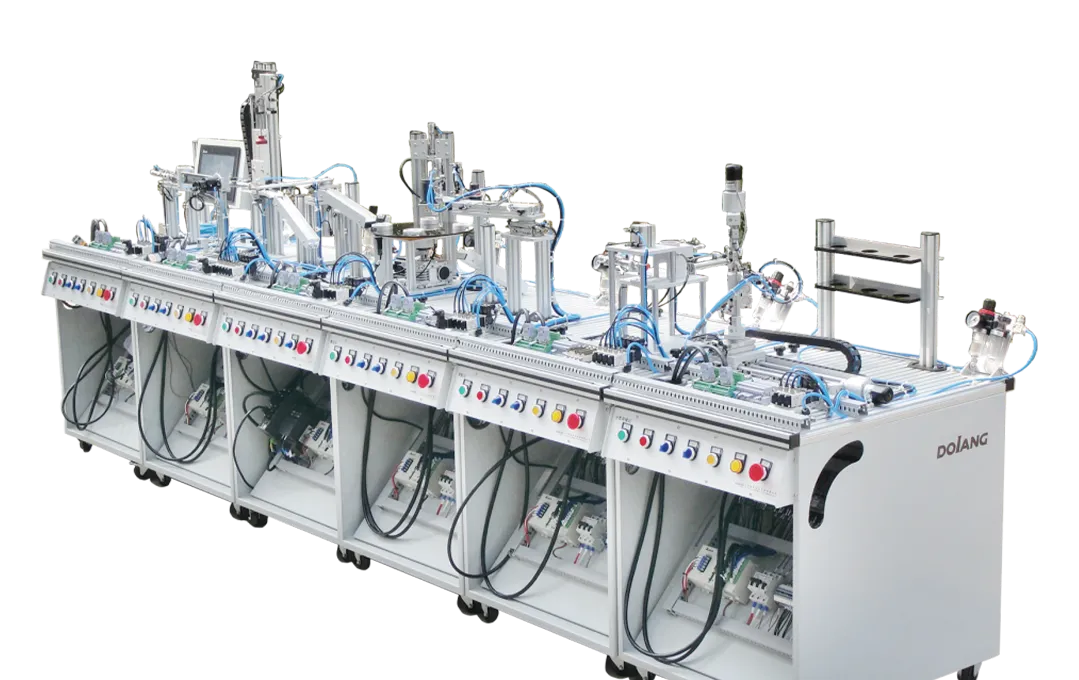

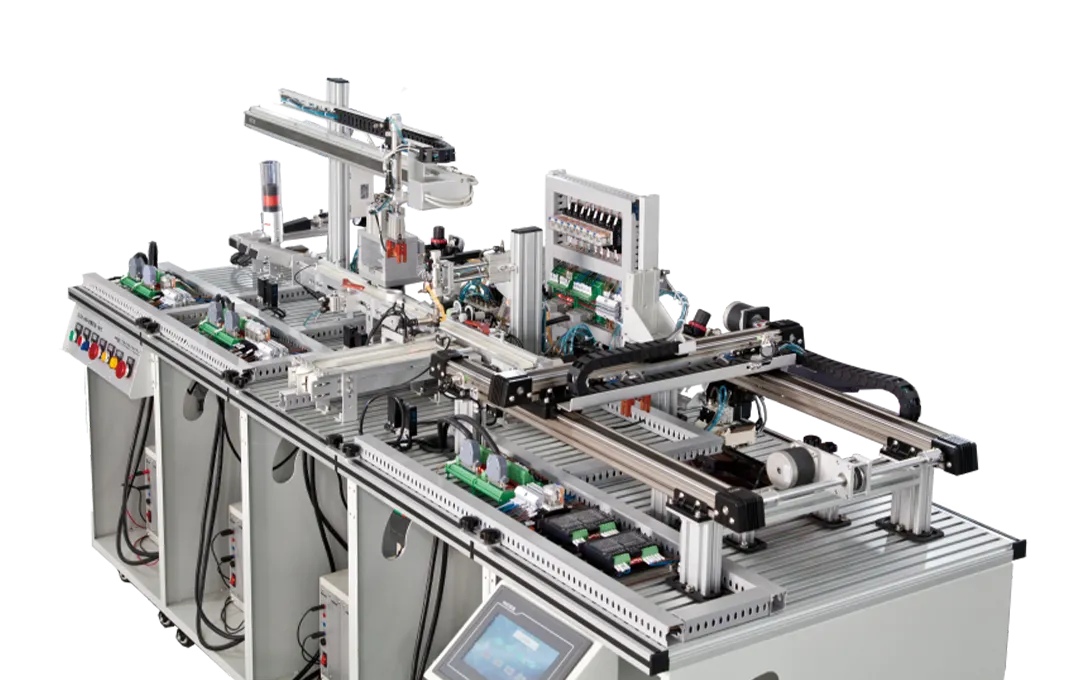

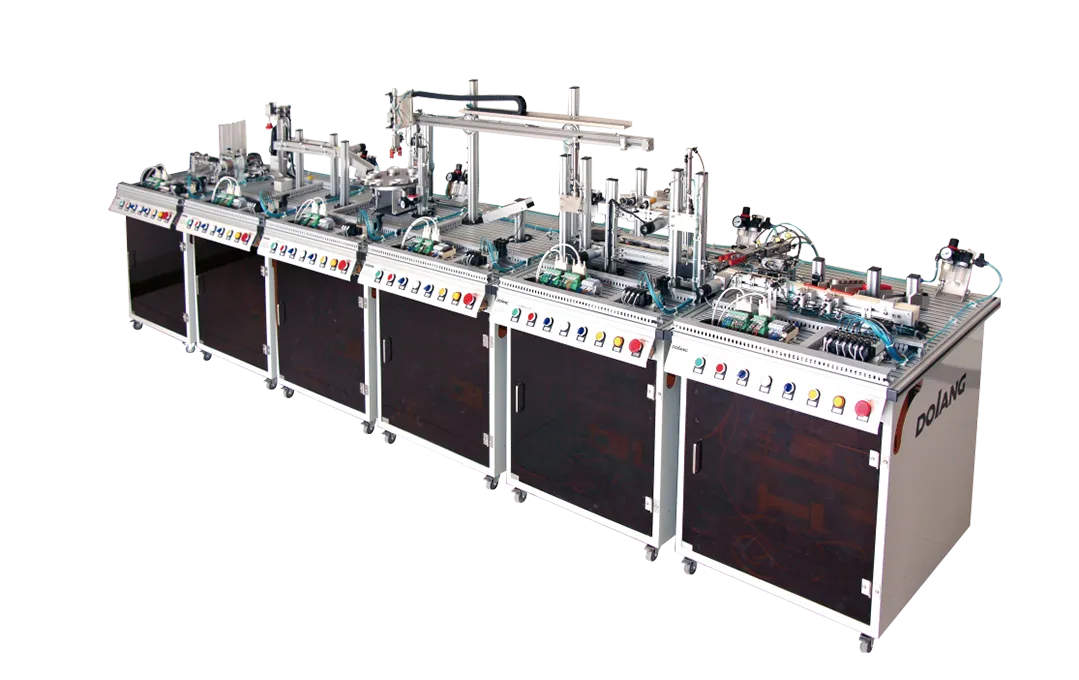

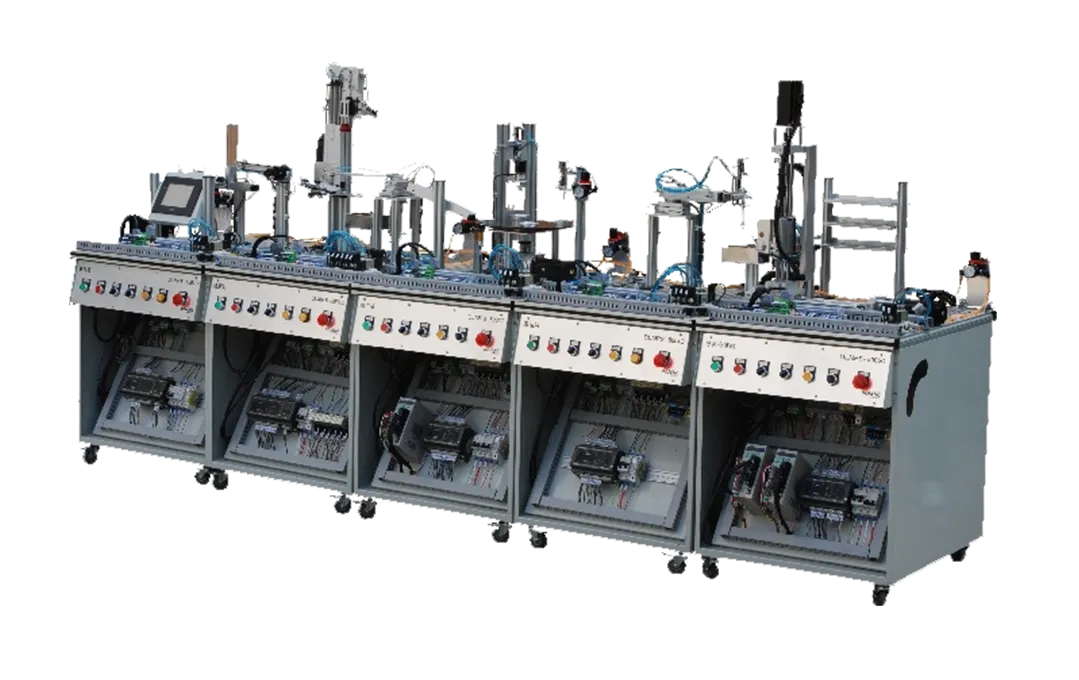

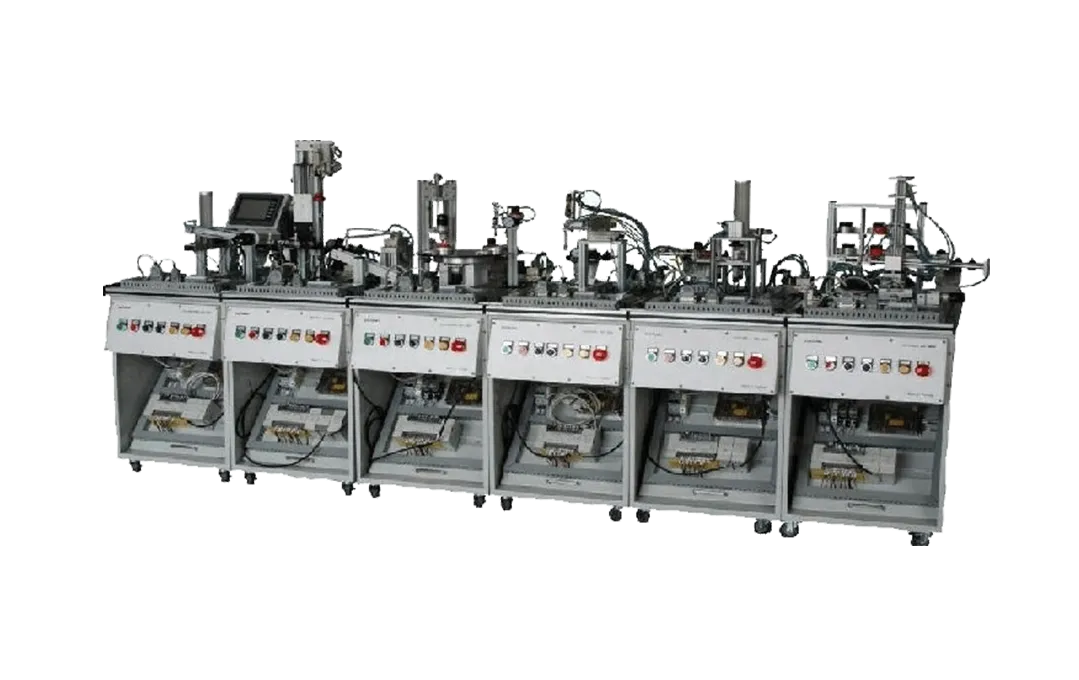

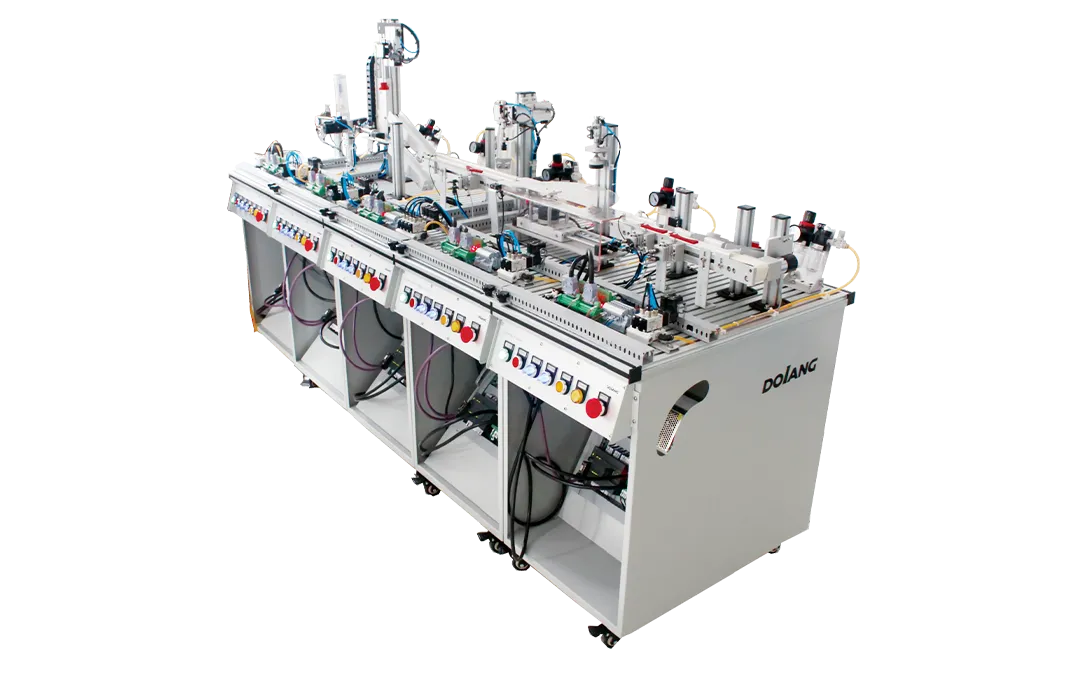

Modular Flexible Production System

1. Electric control cabinet main circuit power supply: single phase AC220V ±10% 50Hz.

2. Electric control cabinet control circuit power supply: DC24V

3. Temperature：-10℃～40℃; environment humidity： ≤90%（25℃）；

4. Air pressure: 0.4~0.6Mpa

5. Whole machine capacity: ≤1KVA

Inquire Now

Details Introduction

Overview

The Modular flexible production system is one kind of mechatronics engineer training system, it covers multidisciplinary and multi-disciplinary comprehensive knowledge involved in the integration of machine, electricity, light and gas. It can minimize the gap between the training process and the actual production process. The technologies involved include: PLC control technology, sensor detection Technology, pneumatic technology, motor drive technology, computer configuration monitoring and man-machine interface, mechanical structure and system installation and commissioning, fault detection technology, Ethernet communication technology, touch screen technology, motion control, computer technology and mechatronics system engineering.

Optional Model

For Modular flexible production system, each module can be separate realize its function, and each module can combine to one whole station to realize certain function.

Model	Including Stations
DLDS-500A	Grasp station, Stamping station, Assembly station, Dual-axes manipulator transport and sorting storage

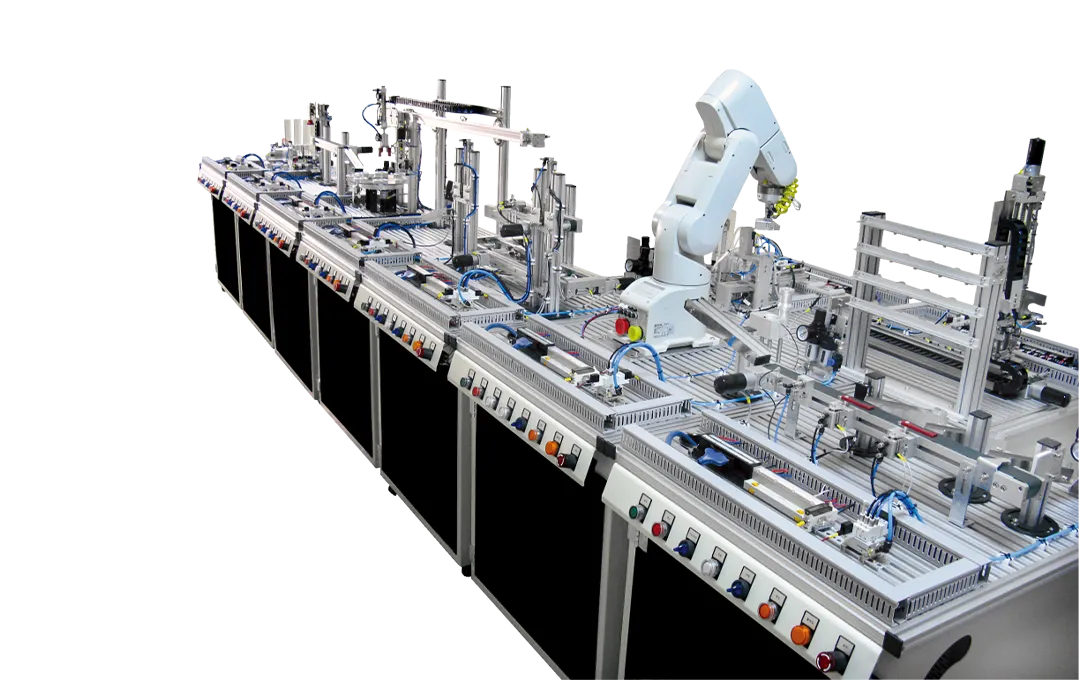

DLDS-500AR (ABB robot)	Distribution station, Handling station, Assemble station, Handling and sorting storage station of industry robot
DLMPS-205	feeding station, testing station, handling station, extrusion station and sorting station
DLMPS-500A	distribution station, testing station, processing station, robot station, sorting station
DLMPS-500B	Distribution station, inspection station, processing station, handling station, classification storage station
DLMPS-500C	distribution station, testing station, processing station, handling station, sorting and storage station
DLMPS-600A	Distribution Station, Testing Station, Processing Station, Handling Station, Assembly Station, Sorting Station
DLMPS-600B	Distribution station, Testing Station, Processing Station, Handling Station, Assembly Station, Sorting Station,
DLMPS-600D	Feeding station, testing station, processing station, handling station, buffer station, sorting station
DLMPS-800A	distribution station, handling station, processing station, processing and installation station, installation station, handling sorting station, conveyor belt station and sorting station
