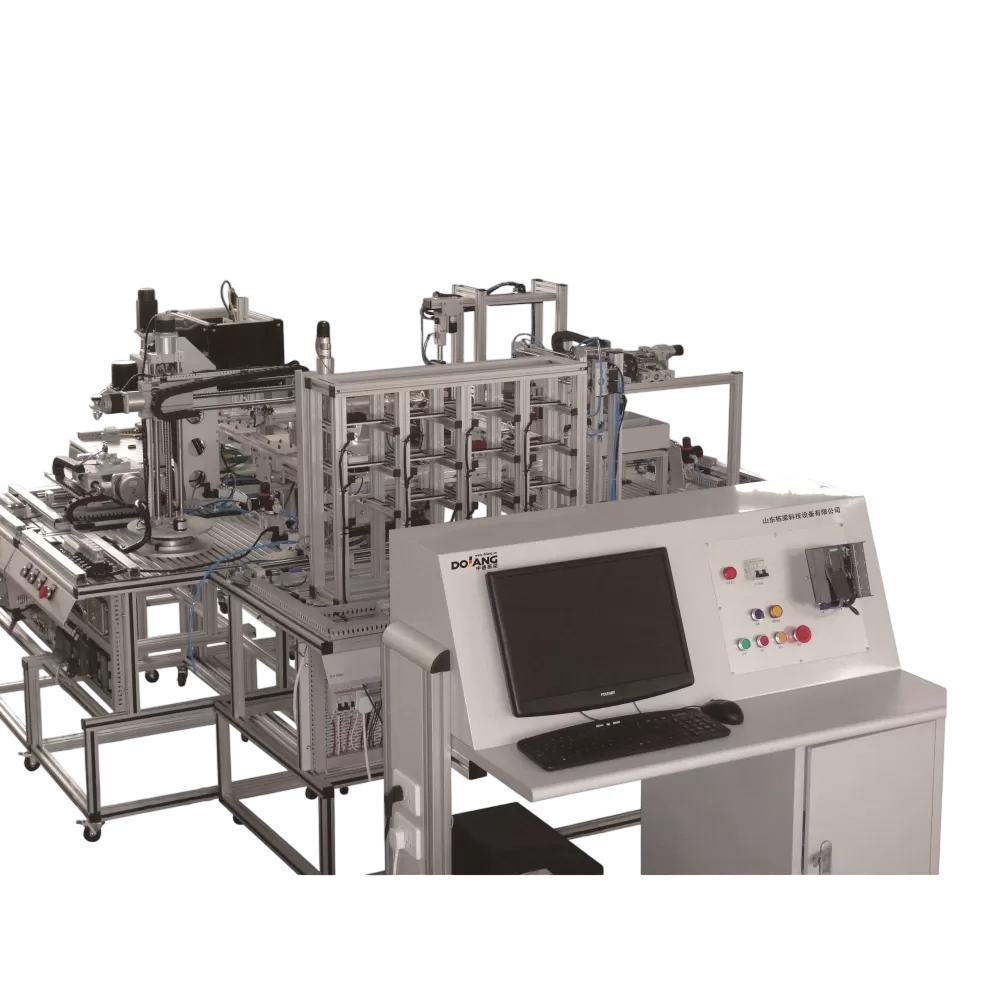

DLFMS-8000 Flexible Manufacture System

1. Equipment Intuition: The main equipments are directly exposed, and the equipment can be displayed more intuitively in front of students, shortening the transition and adaptation time of students from the classroom to the industrial site.

2. Networking of the equipment: PROFIBUS-DP is used as the main line of the network control system, and the field device control layer is used as the secondary line. The entire equipment is uniformly operated according to the command of the highest commander, and at the same time, each branch office independently completes the tasks assigned by each station. The master control station is the highest commander of the equipment, and each unit is a branch of each department.

3. Computer configurability: This equipment through the computer platform, through the sub-station through the configuration principle, the control of each station through the teacher machine management will be together.

4. Visual recognition: Through the visual recognition unit, the workpiece passed through the conveying unit is photographed, the graphic contrast, and the coordinate value are set, and finally it is judged whether it is the workpiece required by the system or not. Qualified products or non-conforming products become the two main lines of the system.

5. System operability: Each work unit can operate independently, that is, it can be networked and can work offline.

1. The general control platform

-  Complete the training of PROFIBUS-DP network;

-  Complete the training of signal acquisition for each slave station;

-  Practice installing Step V5.4 Siemens 300 software installation training;

-  Practice the application of network information processing technology in the industry;

-  Complete the training of the network address setting;

2. Robot handling unit

-   the precise positioning control training of stepping motor;

- the rotary axis control training;

-  Y-axis control training;

-  X-axis control training;

-  Z-axis control training;

-  the training of two-axis linkage control;

-  the three-axis motion control training;

3. Automatic processing unit

-  the inverter parameter adjustment training;

-  the spindle frequency conversion control forward and reverse training;

-  Complete the Z-axis position action training;

-  the Z-axis return reference point action training;

-  the X-axis position action training;

4.visual inspection unit

-  the working principle of the visual recognition system;

-  Complete the training of the focus adjustment;

-  Complete the training of the sensor trigger signal;

-  Complete the training of the capture process;

-  the training of using the software to debug the imaging principle;

5. heat treatment unit

-  Complete the training of heat treatment process control

-  Complete PLC programming training;

-  Complete the training on analog control;

-  Complete the training of PT100 signal acquisition;

-  Complete the training of chain transfer;

- Complete the training of the handling agency

6. automatic sorting unit

-  the understanding of the cross mechanism;

-  the training of the two-axis motion control;

- the principle of pneumatic finger movement;

-  Complete the sorting training for different workpieces;

-  Complete the training of each part of the executive agency program;

-  the adjustment training of the throttle valve of the pneumatic circuit;

7.automatic storage unit

-  the training of taking the tray;

-  the training of place the tray;

-  the training of micro switch adjustment;

-  the control principle of the handling mechanism;

8. ring transmission unit

-  Complete the training of the start and stop of the motor sequence;

-  the training of the retaining material cylinder telescopic material discharge;

-  the training of frequency converter speed regulation;

-  the training of the sensor to detect the expansion and contraction of the motor running gear;
