MPS & FMS Training Equipment
Model:DLFMS-1700B industrial controls training system
1. Machine size: 7000*6000*1800mm;
2. Machine capacity: ≤10KVA;
3. Applicable power supply: 380VAC±10% (50Hz);
4. accident emergency stop button, power indicator, power indication
5. the working environment: Temperature -10 ℃ ~ +40 ℃ Relative humidity <85% (25 ℃) Altitude <4000M
6.the installed capacity: 1kVA ~ 4KVA
Details introduction
Equipment Overview
DLFMS-1700B industrial controls training system is flexible manufacturing system Training equipment, microelectronics, computer information technology, control technology, machinery manufacturing and systems engineering organically combine, is a complex technology, highly automated systems, flexible manufacturing technology is the current machinery manufacturing industry to adapt to market dynamic demand and product constantly and rapidly updated the primary means of advanced manufacturing technology foundation.
Equipment Features

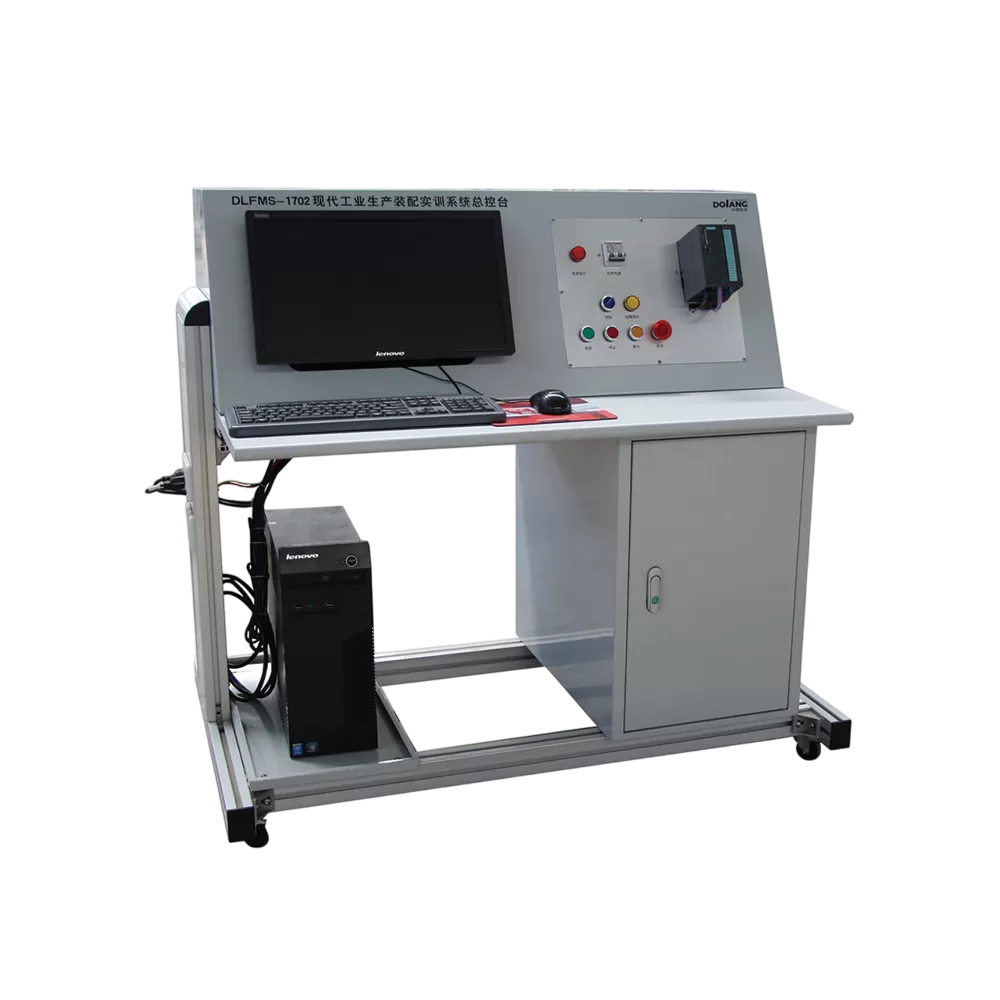

The Modern Industrial Production Assembly Training system is divided into 17 units: master control unit, feeding unit, unloading unit, capping unit, pinning unit, telescopic reversing unit, detection unit, radio frequency identification unit, hydraulic unit, hydraulic HMI Proportional control unit, image vision unit, sorting unit, stacker three-dimensional warehouse unit, waste unit, belt conveyor, roller conveyor, belt steering machine, industrial robot unit.
Training Projects
PLC Design and Application
– Experimental data transfer function
– timing, counting, shift function test
– compare function experiments
– the application of experimental step function
– the application of experimental jump function
The sensor technology and applications
– Characteristics of the photoelectric sensor and application
– the characteristics of inductive sensors Research and Application
– the electromagnetic characteristics of the sensor and its application
– the characteristics of the position sensor and its application
The pneumatic control technology
– electronically controlled pneumatic valve working principle and application
– the vacuum generator working principle and application
– Pneumatic two conjoined working principle and application
– a variety of cylinder working principle and application
The motion control system
– positioning servo motor control technology
– DC motor control technology
– AC motor frequency control technology
Robotics application technology
– robot motion command programming language
– External IO control robot
– handling robotics applications
Visual sensing system
– the composition and amount of machine vision applications
– image acquisition and judgment
The hydraulic control system
– the composition and application of hydraulic pump station
– Installation of the transmitter and the signal acquisition
– A reference cylinder and loop structures
– The application and control of the solenoid valve
The radio frequency identification system
– radio frequency technology;
– data read and write data carriers;
Configuration control and man-machine interface technology
– the basic application configuration monitoring software
– Experimental configuration monitoring software communications applications
The mechanical structure training techniques
– belt drive mechanism design and characteristics of
– the design of the gear transmission mechanism and characteristics of
– cylindrical guide rod design and characteristics of
– the characteristics of ball screw Research and Application
– toothed belt design and characteristics of
Fault detection technology skills training
– the exclusion of the training program fault setting
– the exclusion of training fault setting parameters
– Electrical wiring fault exclusion training set
– mechanical failure ruled out training set
Network communication technology and PROFIBUS bus technology
– The principle of network communications infrastructure and applications
– PROFIBUS-DP module Research and Application
– PROFIBUS communication protocol research and application
– PROFIBUS master and slave communication between research
A variety of sensors and encoders experiment
– photoelectric sensor location detection technology training
– photoelectric sensor limit detection technology training
– limit switch limit detection technology training
