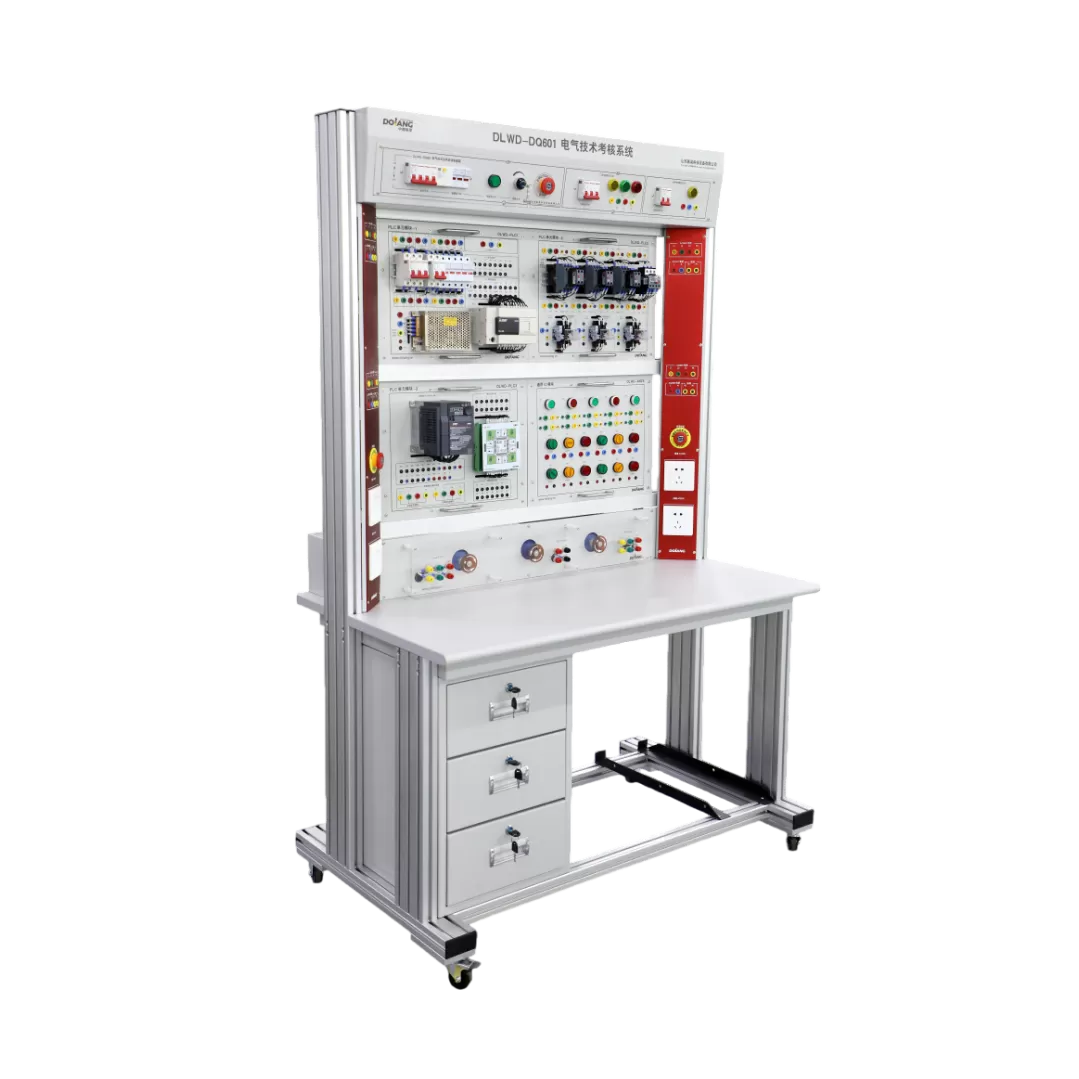

DLWD-DQ601 Electrical Technology Assessment System

Model: DLWD-DQ601 Electrical Technology Assessment System

1.Working power：Single-phase three wire（L,N,PE），AC220V±10％，50HZ
2.Power: 300W Max
3. Dimension: W 1450mm×D900mm ×H 1850mm

Inquire Now

DLWD-DQ601 Electrical Technology Assessment System

Details introduction

Overview

DLWD-DQ601 is a Electrical Training System. DLWD-DQ601 electrical technology assessment system, composed of power control panel, motor control unit module, household power distribution unit module, PLC unit module, motor unit and other modules, Students can using this electrical training equipment serve the practical work of "Electrical Fundamentals", "Electric Traction", "Programmable Logic Control", "Motor Speed Regulation", "Home Lighting" and other courses.And this system is equipped with electrical test board for training.

Equipment Features

(1). The TVET didactic assessment workbench adopts a modular structure. Different functional modules can be selected and hung on the platform according to different test items. It has strong expansion capability and is easy to use.

(2). The leads of the electrical components of each functional module of the device are all transferred to the safety socket, which can effectively protect the components from damage due to repeated wiring.

(3). The whole Electrical training equipment is built by combining industrial aluminum profiles and sheet metal. The whole equipment is light and simple

(4). The bottom of the training equipment is wheeled for easy movement and placement

Training projects

-Installation, commissioning and measurement of lighting circuits and electrical control circuits

- Relay control circuit installation and maintenance

- Automatic control circuit installation and maintenance

- AC and DC drive system control and maintenance

- Programmable control system debugging and maintenance

- Debugging and maintenance of industrial network control system
