Motor Control Training Equipment

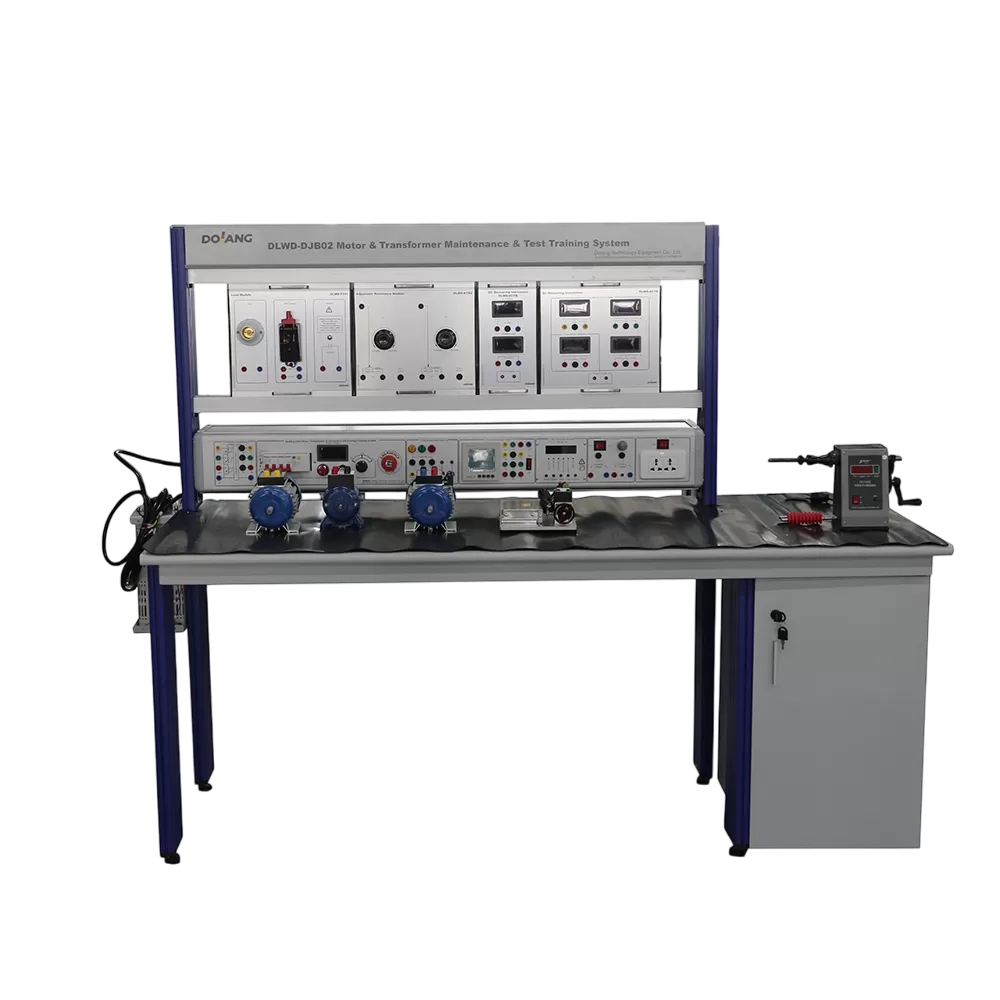

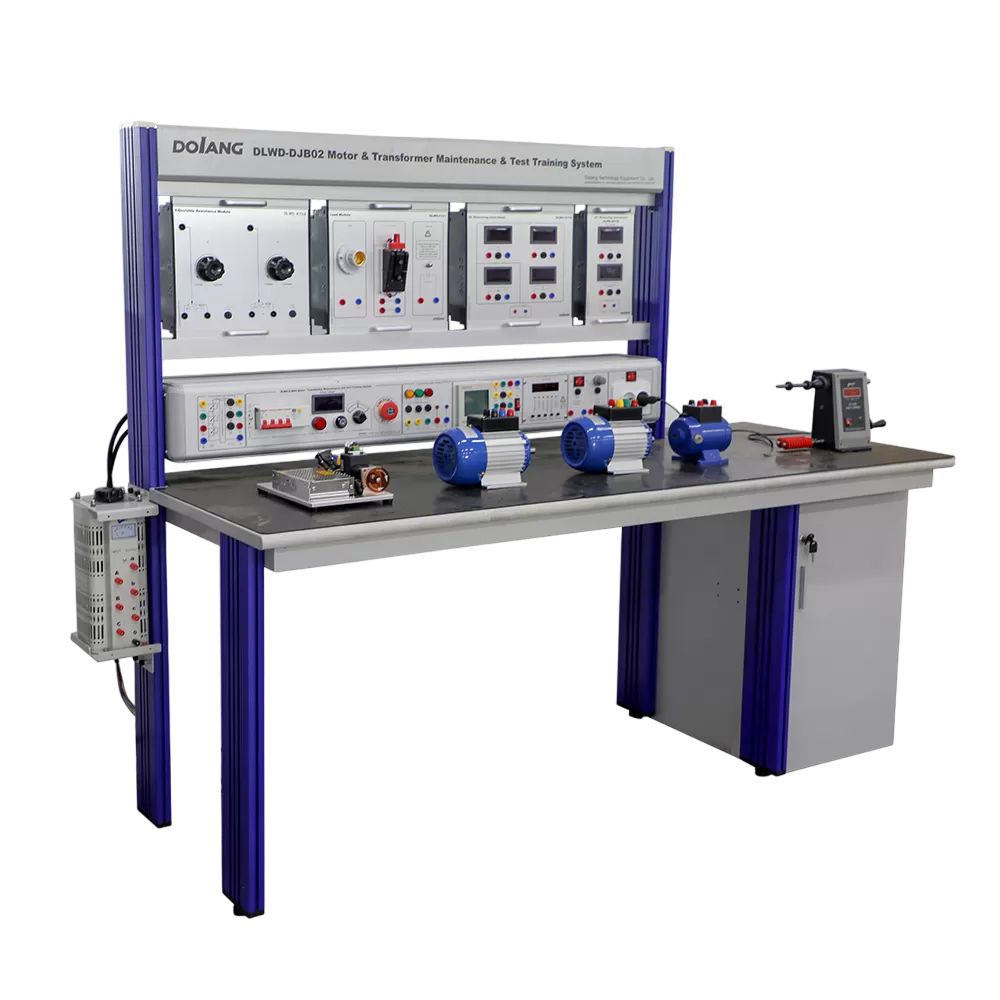

MODEL:DLWD-DJB02 motor and transformer maintenance and testing training system
-Input voltage: three-phase five-wire system 380V±10% 50HZ
-Working environment: the ambient temperature range is -5～40℃
-Device capacity: AC <1.5KVA
-Safety protection: leakage protection (operating current ≤ 30mA), overcurrent protection, fuse protection
-DC: DC220V power < 1A
-Ambient temperature: -10°C ~ 40°C
-Relative humidity: ≤90% (25 ℃)
-Dimensions: length × width × height = 1950 × 700 × 1500
Details introduction
Overview
The DLWD-DJB02 motor and transformer maintenance and testing training system used to practice assembly & disassembly, motor rewinding, function testing, data analysis etc.
This transformer testing equipment is suitable for courses such as "Motor Manufacturing Technology", "Motor Maintenance", "Motor Testing", "Electrical Engineering" and other courses offered by majors such as electrical machinery, mechatronics, industrial automation and electrical automation. The device can complete more than more training projects and is especially suitable for various vocational colleges, undergraduate colleges and postgraduates to study the performance of various motors. It can also provide students with a platform for practical hands-on operation through the detection of various parameters of other motors by this platform.
Equipment Features
The didactic equipment DLWD-DJB02 Motor·Transformer maintainence and testing training system is an training plateform of removing,rewind, assembly, test and data analysis of single-phase transformer, single-phase capacitor asynchronous motor,three-phase squirrel cage asynchronous motor and separate excited DC machine.
The vocational training equipment involves knowledge of motor manufacturing process, motor maintainence, motor test and electromechanics which suitable for major of motor, mechatronic, industrial automation and electrical automation.
This equipment equipped with three-phase AC adjustable power supply, DC power supply, DC measurement meter, AC measurement meter and digital multifunction wattmeter, work power supply and test meter for motor. Each module is easy to change and dismounting.
Training projects
-Study the structure and the constitute of the DLWD-DJB02 motor and transformer maintenance and testing training system
-Learn how to use the measuring instruments
-Learn how to use the resistor module
-Learn how to use the load module
-Learn how to use the DC servo module
-Data measurement & calculation
-Assembly & Disassembly of transformer winding
-Transformer experiments
-Various motors experiments
