Motor Control Training Equipment
Model: DLPLC-BT01 VFD Training System
1. Input power: three phase four wire (or three phase five line) ~ 380 v - 10% of the 50 hz
2. Working environment: temperature - 10 ℃ ~ + 40 ℃ relative humidity < 85% (25 ℃)
3. Capacity: < 0.5 KVA
4. Physical size: 1600 mm * 700 mm * 1630 mm
5. Safety protection: has the drain voltage, leakage current protection, safety conform to the state standards.
Details introduction
Equipment Overview
The Variable-Frequency Drive Training System is a plc kit for training specifically designed for learning the basic principles of variable-frequency drives (VFDs). It provides a comprehensive, high-quality, and cost-effective solution for technical education in VFDs and their motor applications.
This equipment can supply plc skills training kit.Students master the knowledge of motor drives, VFD operation with basic and advanced control functions, VFD control menthods, VFD troubleshooting, PLC control and frequency converter etc of the VFD PLC Learning System.
Equipment Features

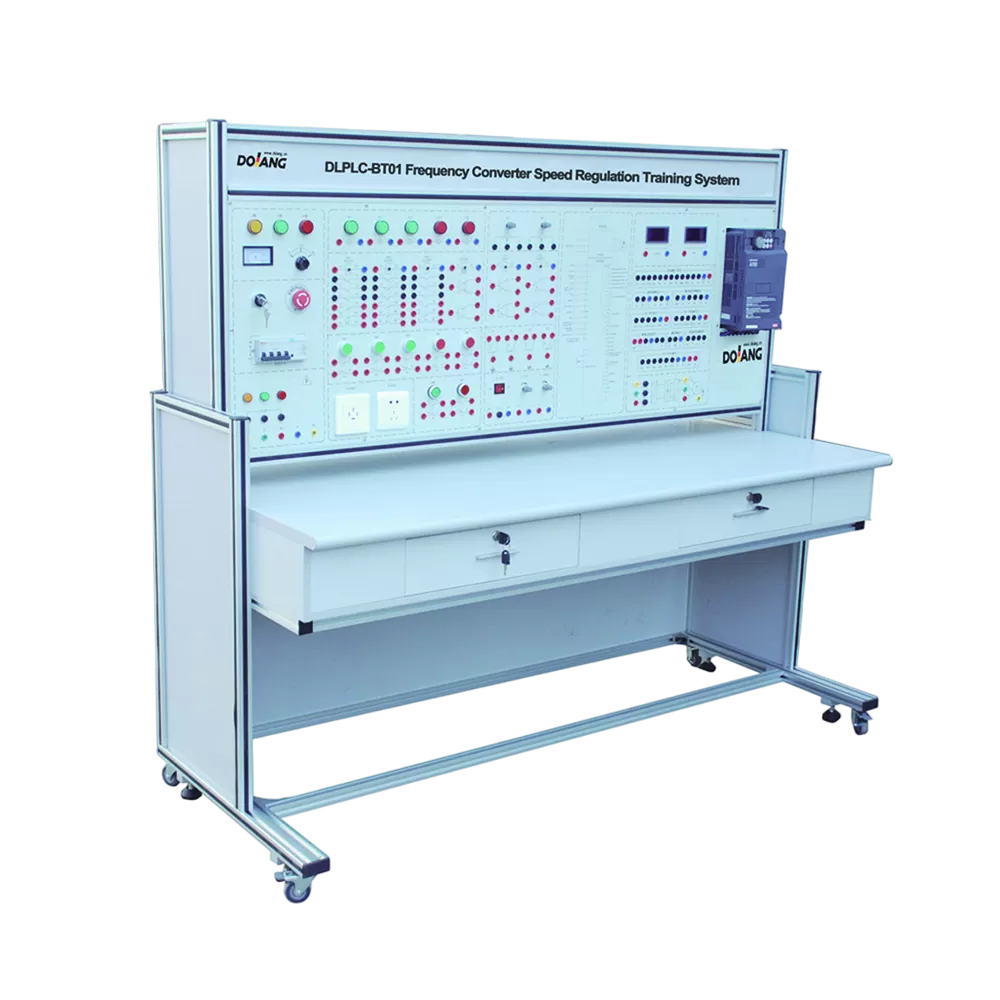

The Electrical machine Training device consists of Motor control panel, practice bench and frequency training module, relay contact training module, digital quantity/analog input and output given indication components, three-phase asynchronous motor, motor rail, speed mechanism etc.
Training Projects
- Motor drives
- Three-phase induction motor characteristics and operation
- VFD characteristics and operation
- VFD control circuits and advanced functions, such as acceleration and deceleration, motor braking, jogging, and protection
- VFD load types and control methods
- VFD installation, maintenance, and troubleshooting
- Optional exercise about VFD operation with programmable logic controllers (PLCs) and human-machine interfaces (HMIs)
- Three phase asynchronous motor frequency control of motor speed
- Frequency constant pressure water supply analog control
