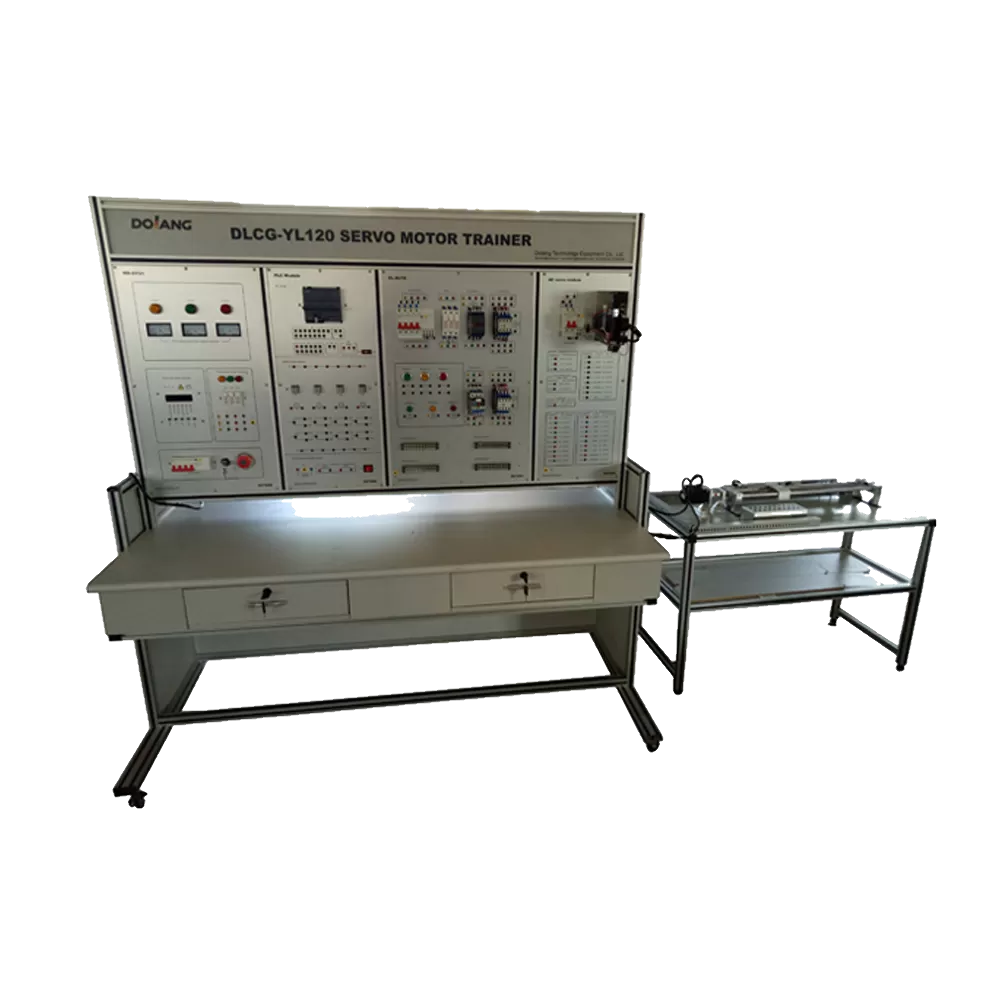

DLCG-YL120 AC Servo Motor Training System

Model: DLCG-YL120 AC Servo Motor Training System

1.Input power: three-phase five-wire AC380V±10% 50Hz

2.Working environment: -10°C - 45°C, relative humidity <90% RH (25°C), altitude <4000M

3.Equipment capacity: <1.5KVA

4.Output power: three-phase AC380V±10%50Hz, single-phase AC220V±10%50Hz

5.The total power supply control has a leakage protection function, and when the leakage current is 30mA, the protection device operates.

6.Grid voltage indication is equipped with 3 450V pointer AC voltmeters.

7.The overall length of the equipment: 2735mm, of which: the length of the training platform: length × width × height: 1700 × 700 × 1750mm

8.Ball screw table: length × width × height: 1035 × 430 × 791mm

Inquire Now

The DLCG-YL120 AC servo motor training system is used to demonstrate the servo drive technology in the fields of automation control. The users may practice the drive technology like parameters setting, positioning, speed control etc.

The AC servo Electrical Controls Training System adopts desktop structure, which conforms to the characteristics of electrical control and protection functions, and the operation part is separated from the control part.The power panel of the training platform is separated from other panels, which is simple and safe.

The training platform adopts three-phase five-wire connection to ensure that the grounding of the training equipment is stable and reliable.The training platform adopts three-phase five-wire AC power supply, which occupies a small area, saves space and reduces infrastructure investment;

The control circuit and a small motor used for skills training can simulate the power drag system of various machinery factories to meet the training requirements of electrical installation, debugging, fault analysis and troubleshooting skills;Components are connected to the terminals by wires, students can practice the wiring connection and test.
