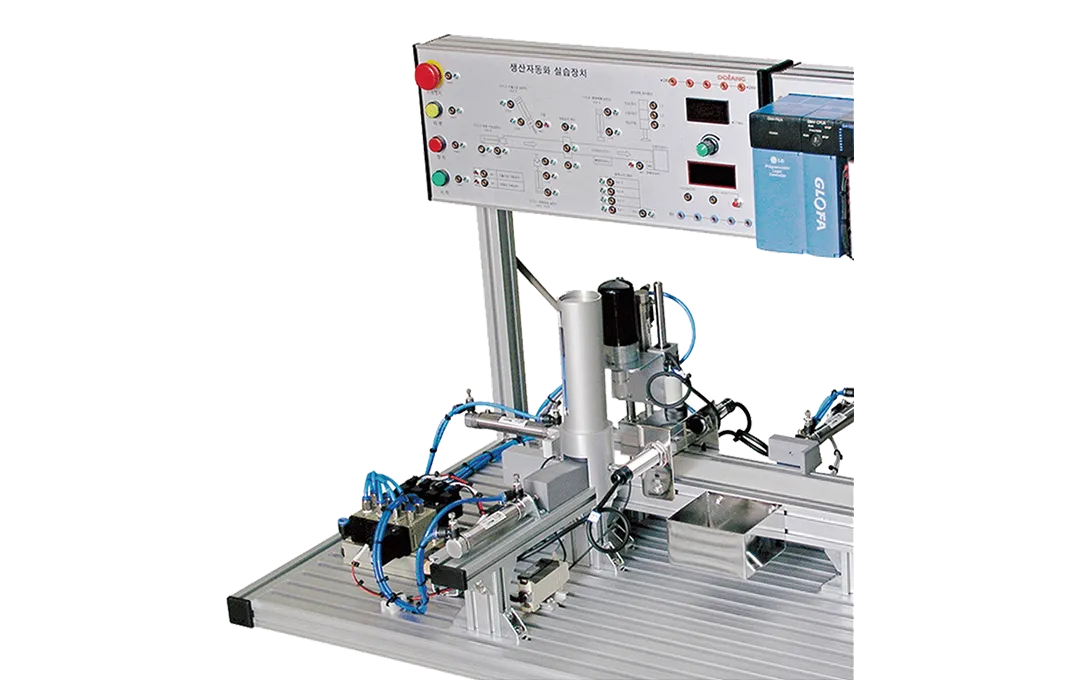

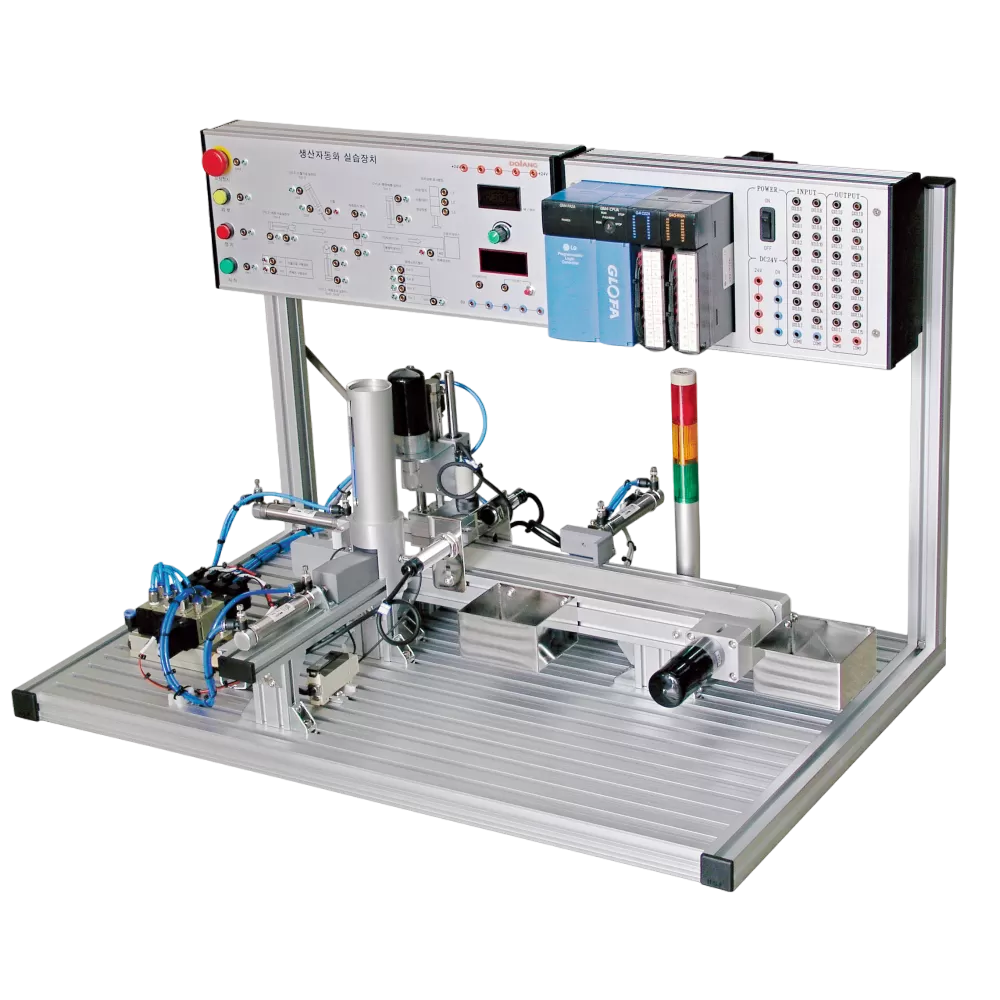

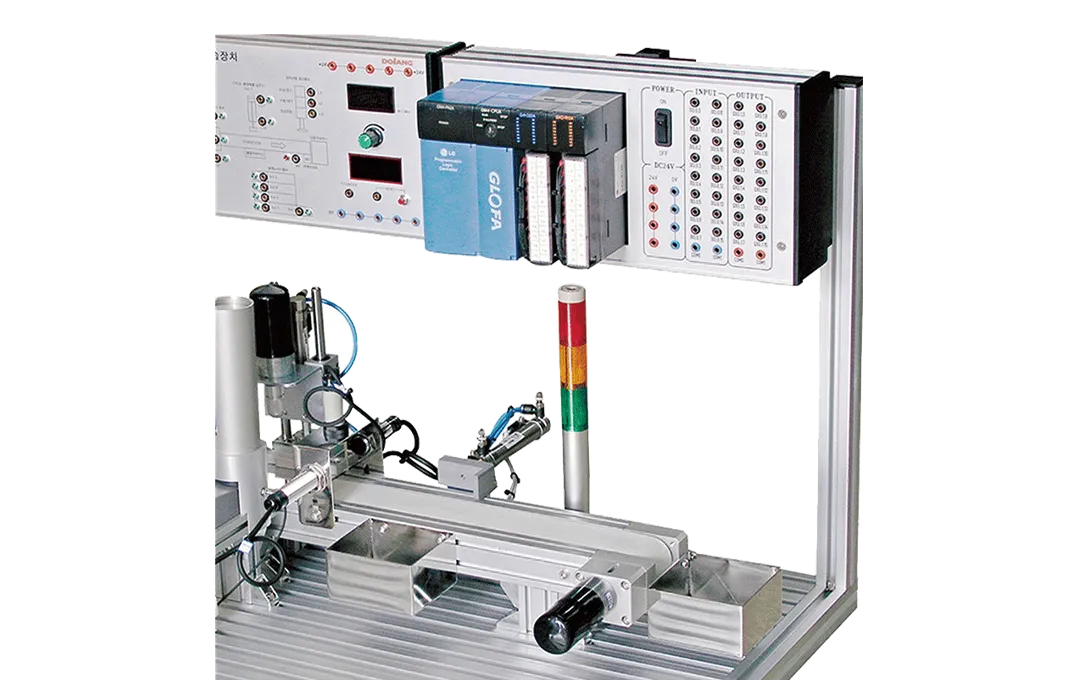

DLFA-MAS-S Factory Automotion Production Line Trainer

Model: DLFA-MAS-S Factory Automotion Production Line Trainer

1. Power input: single phase three wire AC220V ± 10% 50Hz

2. Working environment: - 10 ~ 40 ℃

3. Overall dimension: 1200 × seven hundred and fifty × 1300mm

4. Overall capacity: < 1000VA

6. Air source:

Voltage (V / Hz): 220-240 / 50 power: 0.7kw (1HP)

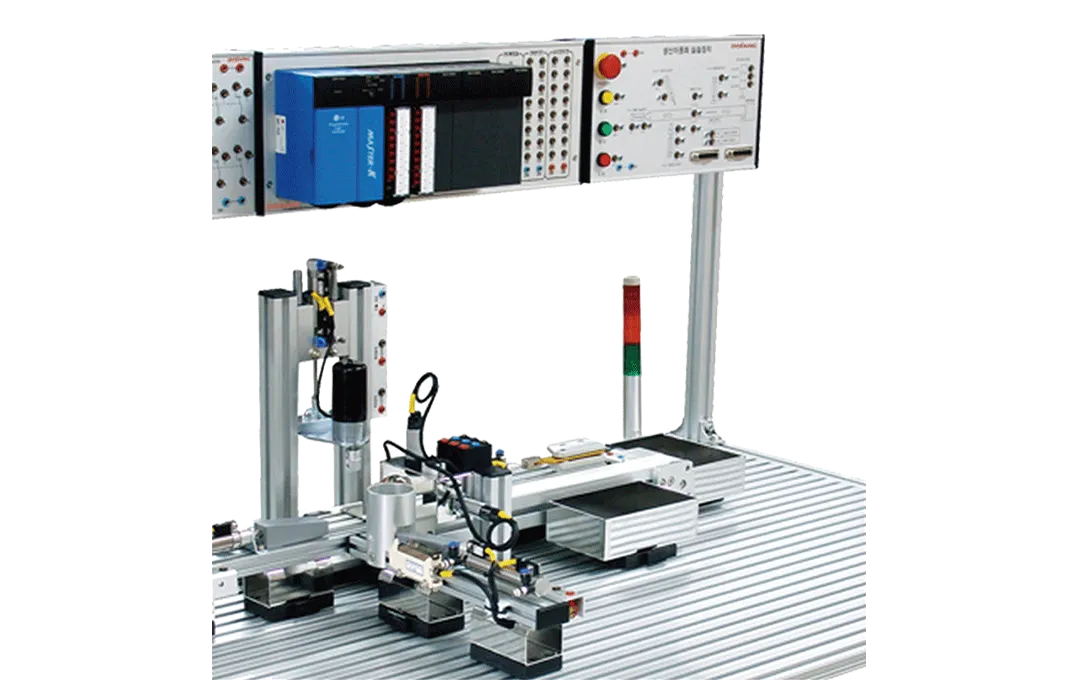

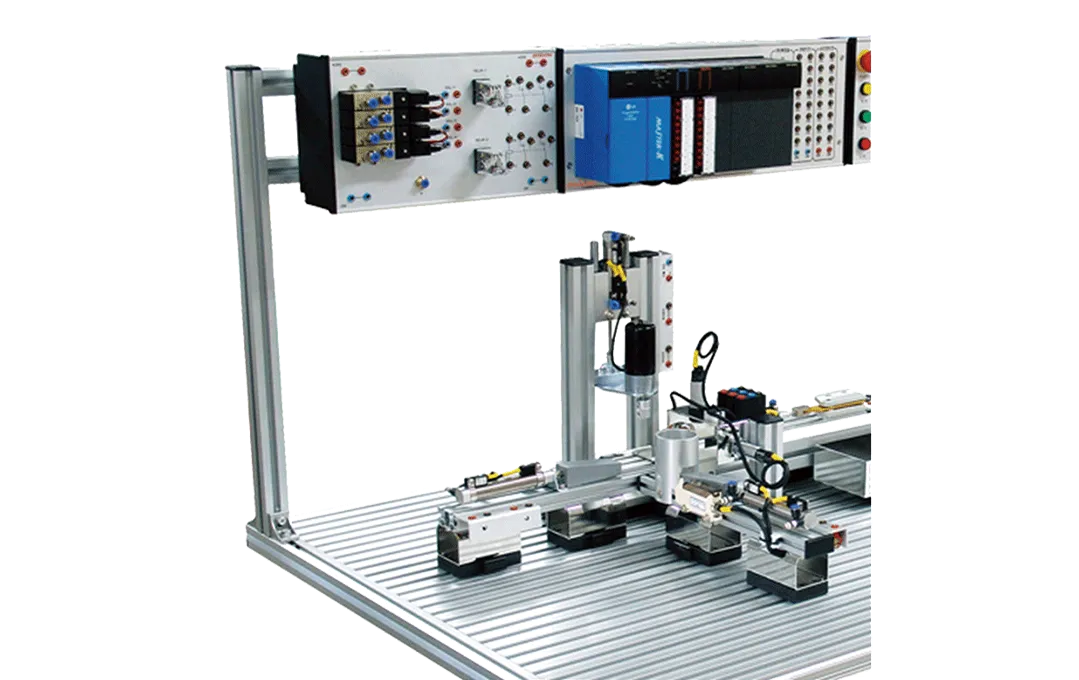

Optional model: DLFA-MAS-M (modular type)

Inquire Now

DLFA-MAS-S Factory Automotion Production Line Trainer

Details Introduction

Equipment Overview

Smart Factory System Trainer is a vocational equipment factory suitable for the process environment of the industrial site. It is a training system for processing, identification, detection and automatic sorting of different types of workpieces. A large number of sensors are used to detect and identify the workpieces, and then sort the processed workpieces through the transmission mechanism and sorting mechanism.

The whole Mechatronics training equipment is composed of factory production line trainer.In the process of use, a number of application technologies involved in the study of mechatronics, such as motor drive, motor speed regulation, mechanical transmission, pneumatic control, PLC control, sensors and so on, are needed to provide students with a typical system comprehensive training environment, so that the professional knowledge mastered by students can be comprehensively and comprehensively deepened, consolidated and flexibly applied.

Composition

The training platform adopts special mold profiles, which are treated by anodizing and spraying, with scientific structure and beautiful appearance. There is a regulator at the bottom, and the height is adjustable to ensure stability; The support adopts aluminum alloy structure (surface electrophoresis treatment); The device adopts the safety test wires and connectors customized by the company, which exceed the international IEC standards. No electric shock when touched by hands.

Training Project

The multi-functional Mechatronics design training system is used for teaching. Teaching activities can be planned according to the mode of work process orientation and combination of work and learning, and the following basic experimental training projects and tasks can be completed:

- Installation and commissioning of pneumatic system;

- Installation and commissioning of sensor system;

- Installation of electrical control circuit and PLC (optional) programming project;

- Installation and commissioning of electromechanical equipment;

- Automatic control system installation and commissioning project.
