Mechatronics Training Equipment
Model: DLFA-ASRSA01, DLFA-ASRSB02
Dimension: 1200*750*750mm or so
Power voltage: single phase AC220V ±10% 50Hz or other (customized)
1. Power input: AC220V, 50HZ
2. Working environment: - 10 ~ 40 ℃
3. Safety protection: short circuit protection, terminal short circuit protection, etc
4. Air source: 0.4MPa ~ 0.55mpa
5. Nine bit Repository: 3 rows and 3 columns
6. Drive type: shaft drive
Details Introduction
Equipment Overview
The automatic storage training system is a PLC control training platform developed for Vocational and technical education and higher education. It is specially designed for courses such as "programmable logic controller technology", "programmable logic controller principle and application", "PLC application technology", "PLC principle and application" and so on.
The system is a practical training system integrating programmable controller, position control, sensor technology, mechanical disassembly and assembly. Through sensor signal acquisition, the system can control the complex position of the motor and realize the access management function of goods.
The Teaching device is applicable to the learning and application training of programmable controller for students in middle and senior vocational colleges and universities, pre job training of students and retraining of employees. This trainer can not only meet the requirements of colleges and universities and vocational schools for PLC experimental teaching and relevant course design and assessment, but also serve as the training equipment for engineering and technical personnel.

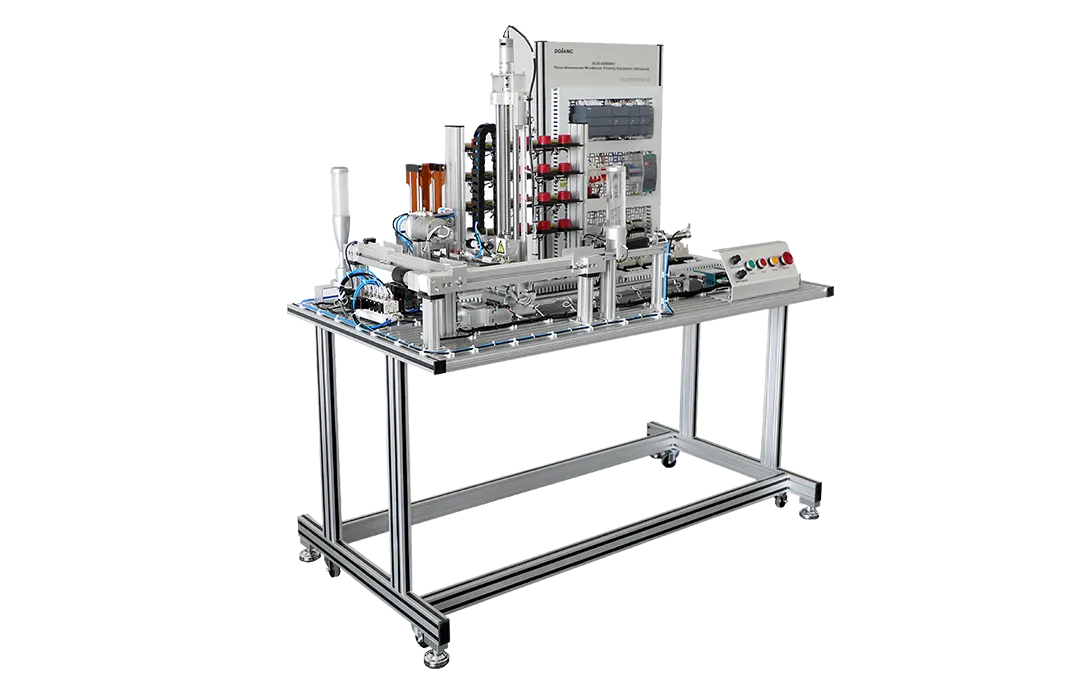

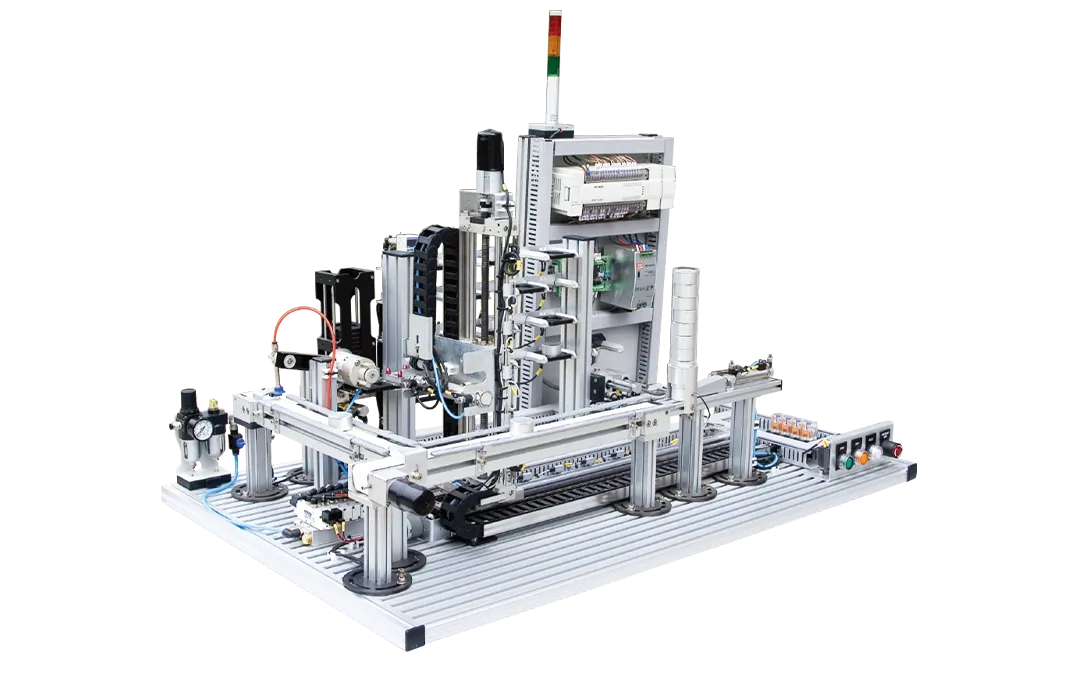

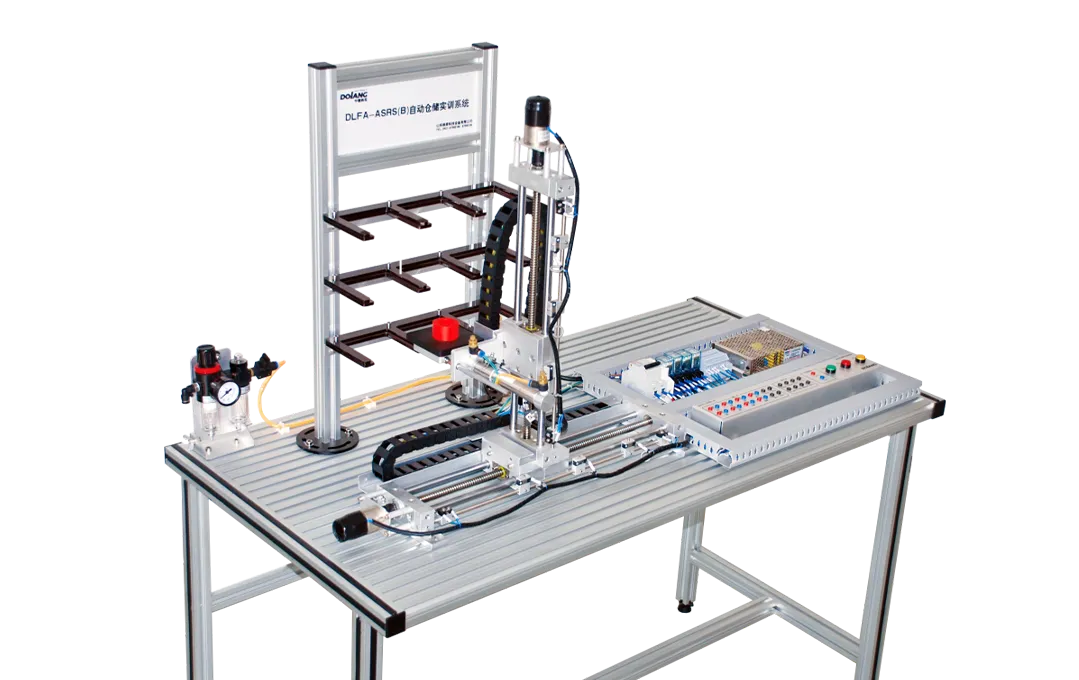

DLFA-ASRSA01 Automated Storage Training System (Advanced) | DLFA-ASRS-B02 Automatic Storage Training System (Basic) |
System Function
Three-dimensional Warehouse Training Equipment(ASRs or AS/RS) means put or take material from assigned position automatically controlled by computer.
This engineer teach ing equipment is a miniature of the actual automatic warehousing system and controlled by PLC. the factory automotion simulation device is composed of control agencies, transport agencies, steering mechanism, cargo crawl with rotary mechanism,20 unit warehouse,accurate move and storage on three dimension, cargo transferred, stackers and other institutions, Can complete in and out operation by manual or automatic, improved implementing agencies to provide a modern logistics system.
The didactic teaching workbench can accurately drive sensor motor and cylinder to store or pick up automatically on three drive shaft.Both manual and automatic operation are available. The system is open type which can witness the complete mechanical structure.
Training Projects
-ASRS construction
-Assembly and disassembly of mechanical and electrical parts
-System fault diagnosis and maintenance
-Draw electrical schematic diagram
-Application of sensor technology
-Three dimensional control system
-Position control system
-Digital input and output
-Multiple storage
-Pallet recycling operation training
-Product supply and operation training
-Motor position control training
-Cylinder operation training
-Comprehensive operation training
-Precise positioning control
