    DLFA-555D Optical Mechatronics Training System

    Share:

    Model: DLFA-555D, DLFA-555F, DLMCS-565A , DLMCS-585 etc

    1. AC power supply: single phase AC220V ± 10% 50Hz;

    2. Temperature: - 10℃ ~ 40℃; Ambient humidity: ≤ 90% (25℃);

    3. Overall capacity: ≤ 1kVA

    4. Air pump capacity: single phase AC220V air storage capacity: 24L exhaust pressure: 0.7MPa

    5. Certificate: ISO, CE,SGS

    Application range: Optical Mechatronics Engineer Training, Factory automation engineer training, PLC training, Electrical control training, engineer training model, TVET Technical Vocational Education Training equipment, sensor technology, mechanical technology training, didactic teaching etc

    Inquire Now

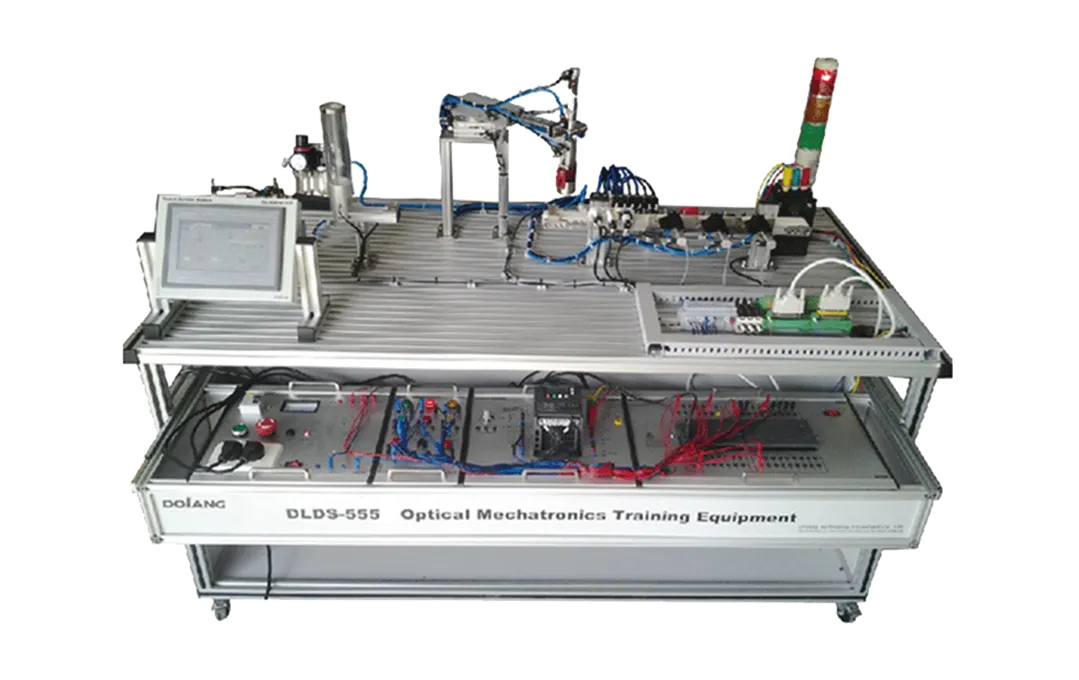

    DLFA-555D Optical Mechatronics Training System
    DLFA-555D Optical Mechatronics Training System
    DLFA-555D Optical Mechatronics Training System
    DLFA-555D Optical Mechatronics Training System
    DLFA-555D Optical Mechatronics Training System
    DLFA-555D Optical Mechatronics Training System
    DLFA-555D Optical Mechatronics Training System

    Details Introduction

    Equipment Overview

    The Optical Mechatronics Engineer Training System is TVET didactic teaching equipment which simulates the process environment of industrial site, identifies and detects different types of workpieces, carries out handling and automatic sorting, in which a large number of sensors are used to detect and identify workpieces, and then carries out workpiece handling through mechanical arm and conveying mechanism, Finally, the sorting mechanism completes the sorting of the transported workpieces.

    Configuration

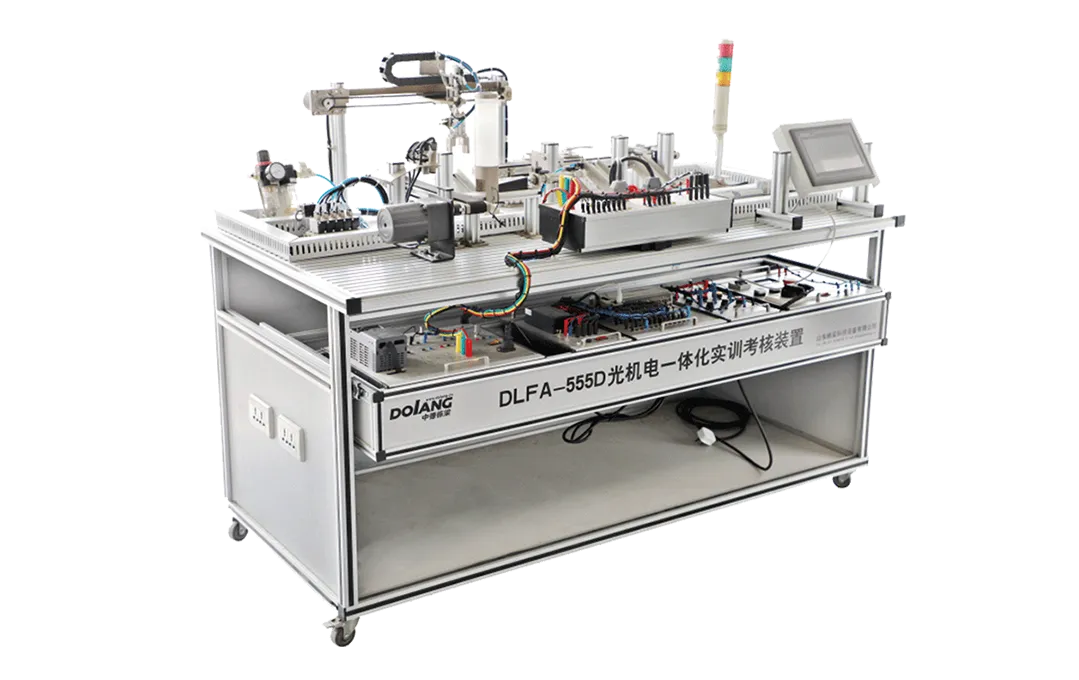

    DLFA-555D Optical Mechatronics Training Equipment includes feeding unit, transmission unit, detection unit, waste launch unit, rotate manipulator unit, warning lights and other parts;

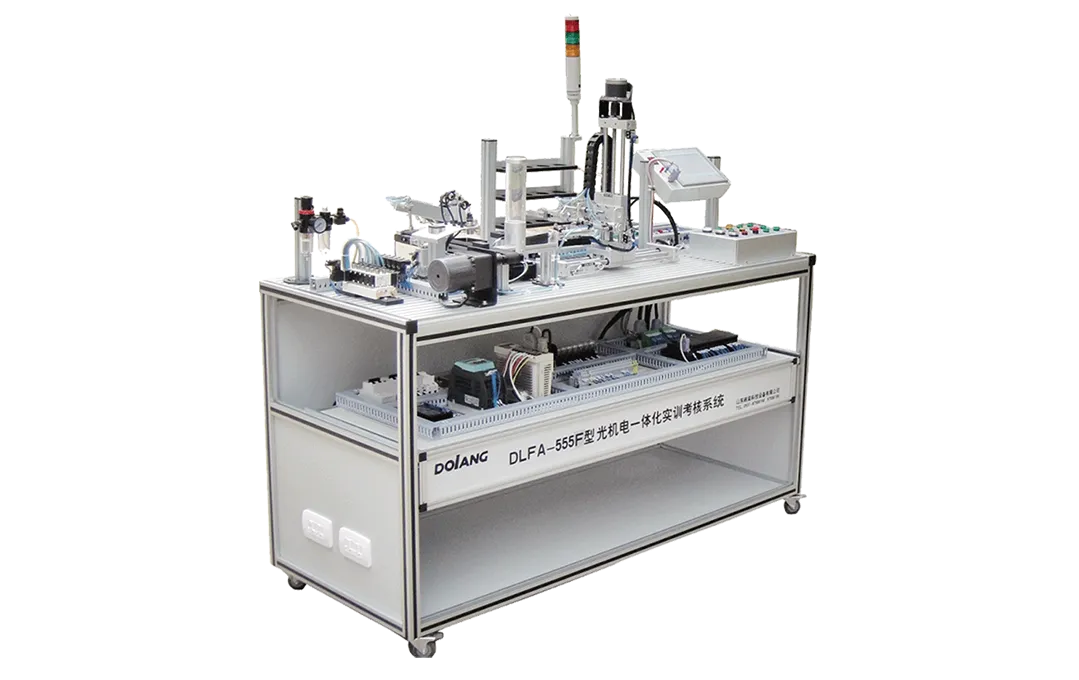

    DLFA-555F Optical Mechatronics Training Equipment includes feeding unit, transmission unit, test unit, waste launch unit, rotate manipulator, upright walking robot, palletizing type silos, warning lights etc;

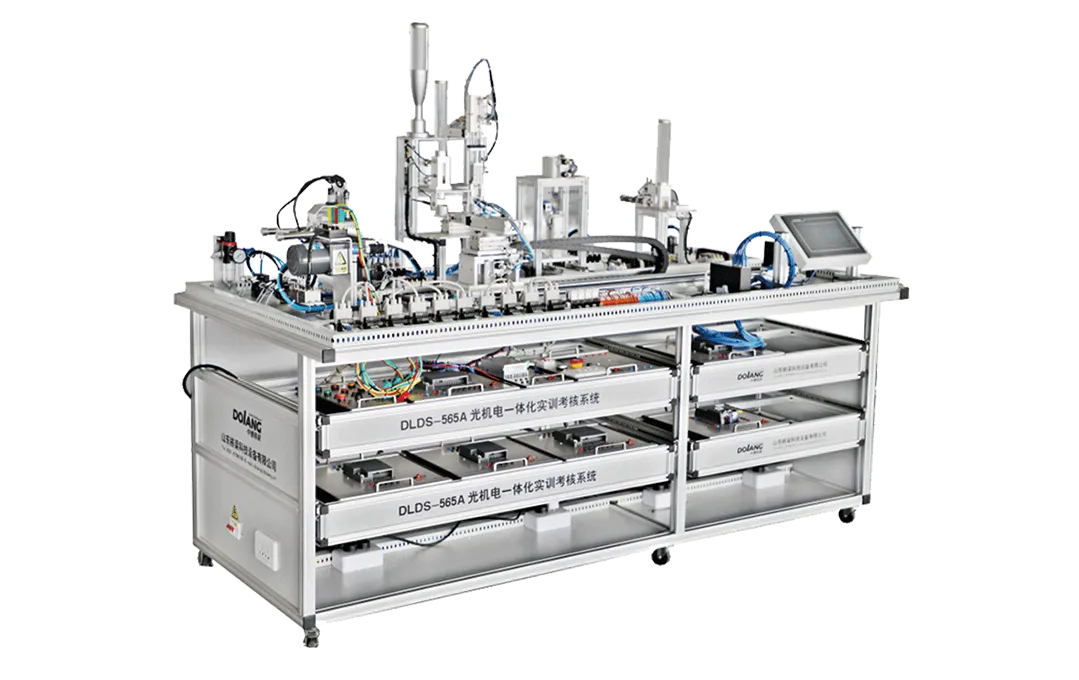

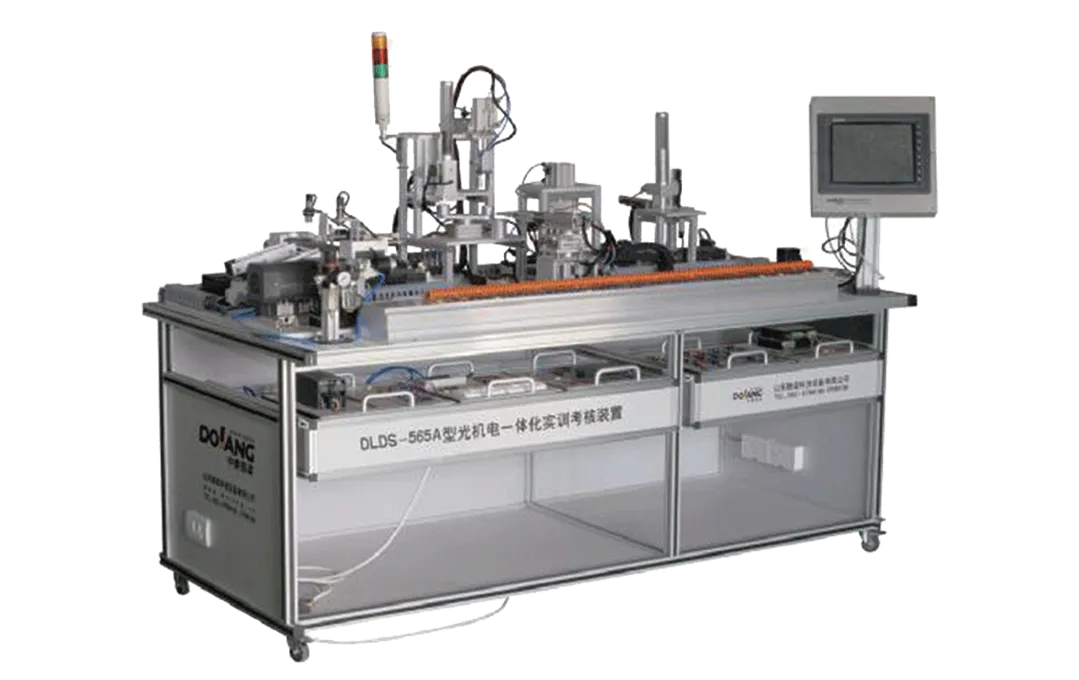

    DLDS-565A Optical Mechatronics Training Equipment includes handling manipulator, processing units, assembly unit, material delivery and sorting unit;

    DLMCS-585 Optical Mechatronics Training Equipment includes control unit module, operating unit module, double closed speed regulation module, servo drive and servo motor module, step drive and step motor module; The controlled objects are feeding unit, processing test unit, handing unit, assembling unit and sorting unit etc.

    Trainng Project

    -Installation and commissioning items of pneumatic system:
    ★ installation of pneumatic direction control circuit
    ★ installation of pneumatic speed control circuit
    - Installation of electrical control circuit and PLC programming project:
    ★ connection of motor forward and reverse control circuit and preparation of control program
    ★ connection of motor speed control circuit and preparation of control program
    -Electromechanical equipment installation and commissioning items
    ★ adjustment of coaxiality of transmission device
    ★ installation and adjustment of belt conveyor
    - Installation and commissioning of PLC industrial communication network
    ★ hardware connection and debugging of S7-200 smart PLC Network
    ★ preparation and debugging of network data reading and writing program based on multiple Siemens PLC
    -Installation and commissioning of automatic control system
    ★ installation and commissioning of various sensors
    ★ automatic control of manipulator


    DLFA-555DDLFA-555FDLDS-565A
