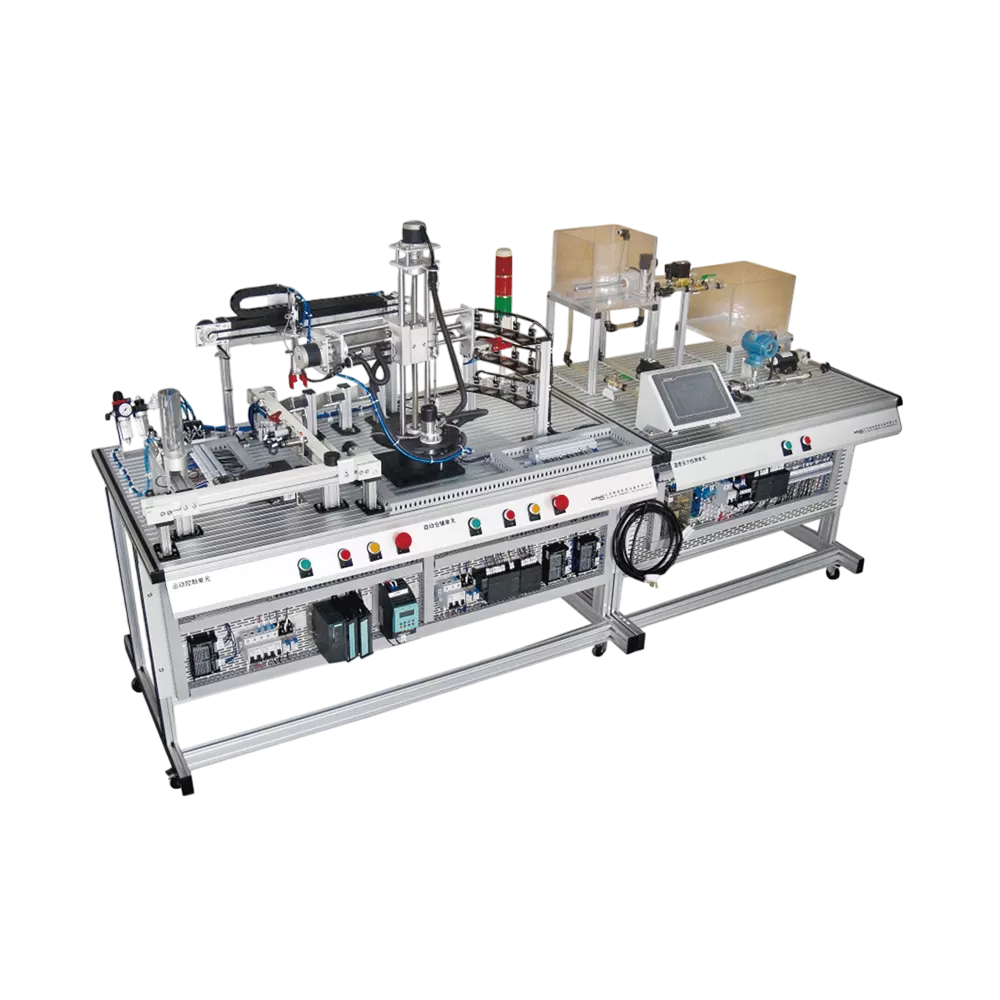

DLFA-321 Programmable Control PLC training System

Model: DLFA-321 Programmable Control System

1. Equipment size: 2400×750×1400mm (length×width×height)

2. Table bottom height: 750mm

3. Power supply: AC 220V±10% single-phase three-wire system

4. Working voltage: DC 24V, 3A

5. Safety measures: With grounding protection, leakage, overcurrent, overvoltage protection functions, safety protection complies with relevant national standards

Inquire Now

DLFA-321 Programmable Control PLC training System

The training and assessment system for programmable control system designers includes the training of motion control and process control in mechatronics training. The system uses china siemens plc training kit as the controller, the master station uses Siemens S7-1200 series host, and the slave station uses Siemens S7-1200 series host. Ethernet communication can be used between the master station and the slave station, which includes all the knowledge included in the professional skills appraisal of all students.

The equipment is produced by Dolang, a professional educational lab equipment manufacturer.The motion control module in the training and assessment system for programmable control system designers includes automatic feeding unit, transmission unit, manipulator handling unit, and classification storage unit; the process control module includes analog quantity measurement (temperature, pressure, flow, etc.), PID adjustment, etc.

The technical teaching equipment for programmable control system designers adopts an open structure, and the overall mechanical structure can be seen. Students can form different execution systems according to different control schemes and programming, which is suitable for people at different levels to learn PLC programming and over-control loops.
