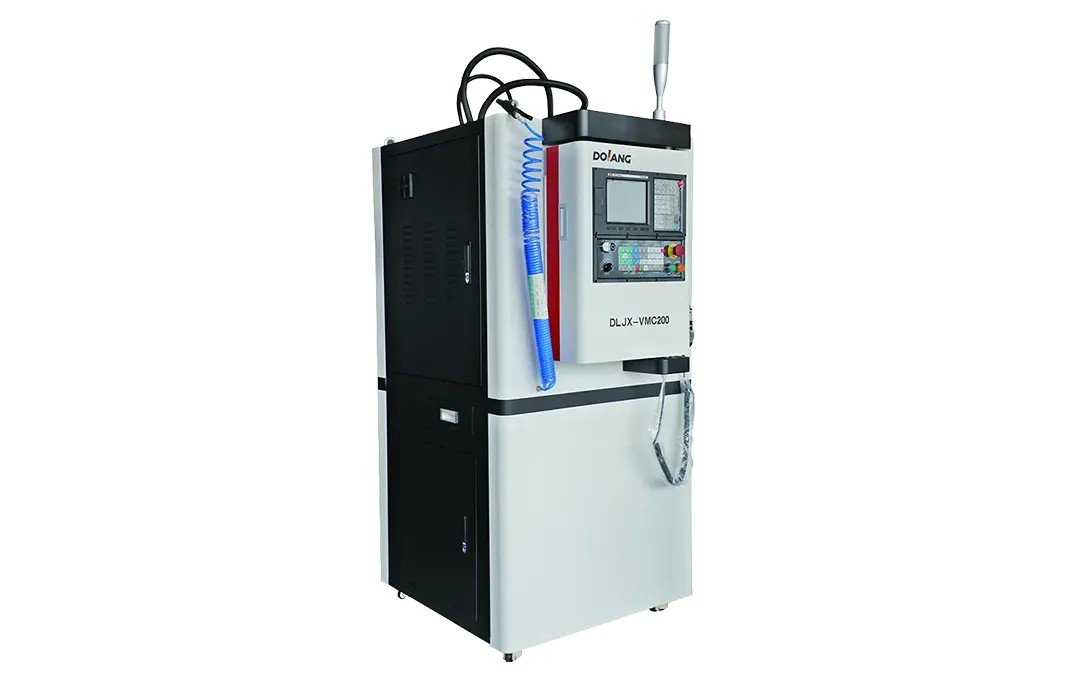

DLJX-VMC CNC Machining Center

Model: DLJX-VMC CNC Machining Center

1. Input power supply: single phase three wire system, AC220V ± 10%, 50Hz

2. Overall capacity: About 2.5kW

3. Recommended working pressure: 0.4-0.7mpa.

4. Equipment floor area: about 1.0m².

Inquire Now

Details Introduction

Equipment Overview

The CNC machining center station includes a number of hole machining center, online measurement system, and processing tooling.

Random accessories include instruction manual, system manual, hexagonal wrench, double-end wrench, T-nut, taper handle, spring collet, tool handle, fuse, etc.

Features

The CNC machine tool training equipment is equipped with automatic opening and closing doors and pneumatic clamps, which is convenient for loading and unloading of the machine tool.

The robot arm training equipment usually equipped with FMS,MPS, industry 4.0 and smart manufacturing system, and as CNC machining. The chuck automatically clamps the blank, and the machining center and CNC lathe perform rounding, milling, drilling and other operations on the blank in turn according to the set program until each processing procedure is completed。

System Parameter

- Main performance characteristics: Equipped with KND k1000mc Industrial CNC system; Implement international standard G code programming, support M code and s code, and be compatible with FANUC, Mitsubishi G code and a variety of CAD / CAM software (Mastercam, UG, CAXA and other software programming)

- Accuracy: Repeat positioning accuracy: 0.03mm

- System resolution: 0.001mm

- XYZ axis travel: Transverse (x-axis): ≥ 180mm

Longitudinal (Y axis): ≥ 80mm

Vertical (Z axis): ≥ 180mm

- Machine door: Automatic pneumatic door

- Use air pressure: 0.6MPa

- Spindle speed: 100~ 24000 rpm

- Spindle taper: ISO20

- Tool magazine: 4Station magazine

- Table size: 400×115mm

- T-groove size / quantity : 12 mm/3
