DLJX-QGT4 Fitter Training System

- Comprehensiveness: Can complete the understanding and use of various common tools, master the skills of marking, assembly, debugging, maintenance and so on.

- Practical: The vocational training equipment can cultivate students' actual hands-on ability of marking, sawing, filing, chiseling, tapping, reaming, etc., and has strong practicality. This vocational training equipment is close to the industrial site and provides a good platform.

- Integrity: The "four-in-one" design structure is more compact, the site layout is more reasonable, the practicability is stronger, and resource sharing is optimized.

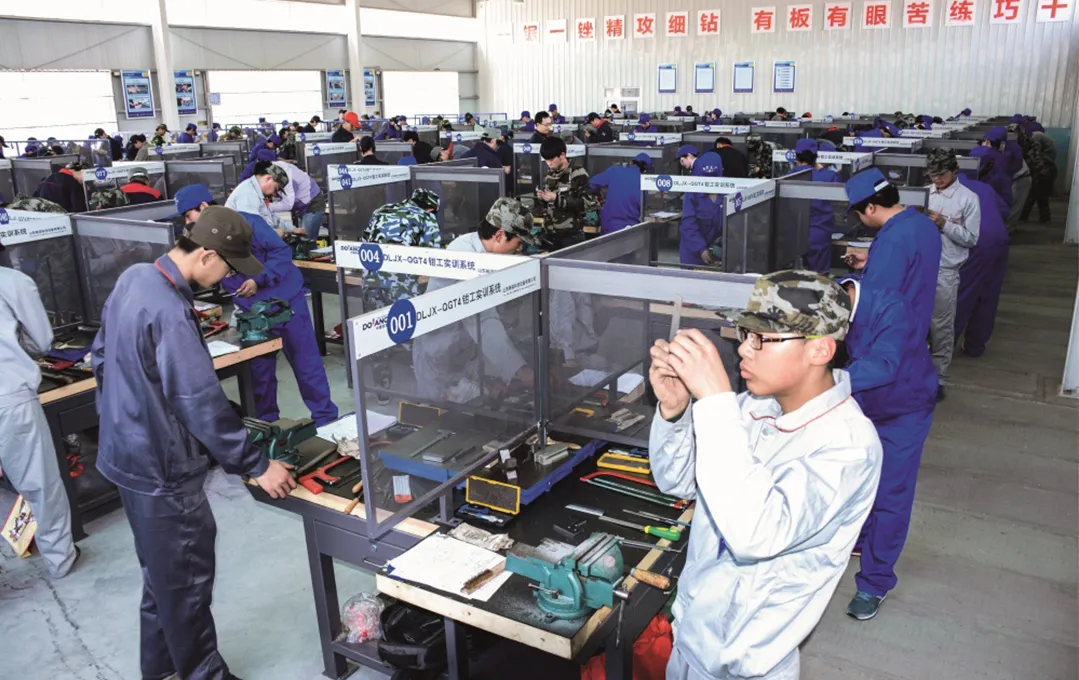

-  Independence: The fitter skills training platform designed with four stations, each station forms a separate space, does not interfere with each other, and has good confidentiality, which is suitable for skill training and assessment.

-  The training platform of mechatronics trainer is designed with four stations, with a symmetrical structure at the center origin, and each station forms a separate space without mutual interference and good confidentiality. It is mainly composed of a training platform, a platform frame, and a protective net. The main frame is welded with square tubes.

1. The training platform is made of iron material, the desktop is made of wood, and there is an integral cutting steel plate attached to the desktop to protect the operating table. Place tools and materials, etc.

-  The protective net adopts a frame structure, which is compact, firm and beautiful. It can not only play a protective role during training operations, but also hang mechanical drawings.

-  This fitter bench of mechatronics trainer is equipped with a mating mother board for each station, which can complete teaching, practice and assessment of square (or V-shaped board), semi-circular head, triangular head, and dovetail board.

-  Each station is equipped with a set of assembly and maintenance system, which includes synchronous belt drive, spur gear drive, bevel gear drive, worm gear drive, and chain drive.

-  Each station is equipped with a set of linear guide module
