Mechanical Training Equipment

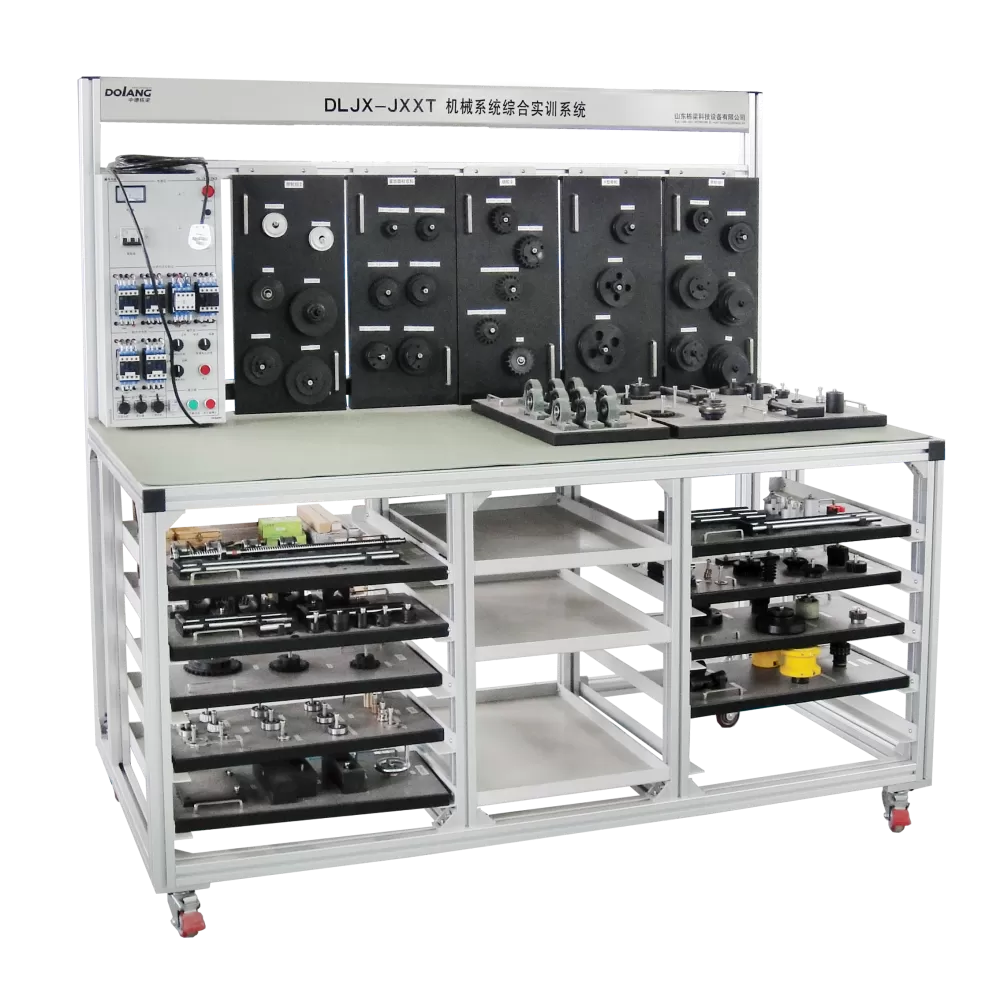

Model: DLJX-JXXT
1. Input power: single-phase three-wire AC220V±10% 50Hz
2. Working environment: Temperature -10℃～40℃ Relative humidity ≤85% (25℃) Altitude ≤4000m
3. Dimensions: about 1845mm×700mm×1700mm
4. Safety protection: with leakage voltage and leakage current protection, the safety meets national standards
5. Warranty: 1 year
6. Certificate: CE, ISO
Details introduction
Overview
The mechanical maintenance training platform adopts modulear structure.The vocational training equipment uses industrial-grade components with stable and reliable performance, which can greatly shorten the time for students to get familiar with the industrial site after they join the work.
The skills competition equipment can carry out practical training on belt drive, chain drive, gear drive, lubrication, shaft concentricity adjustment, bearing, ball screw, gasket and seal ring, clutch and brake, etc.
The training platform of technical training workbench includes various pulleys, sprockets, gears, transmission belts, single-row and multi-row transmission chains, various couplings, shafts, bearings, ball screws, clutches and brakes, etc. The training equipment includes transmission structural components widely used in industrial production. This engineering teaching equipment has a complete range and adopts a modular design, which is convenient and flexible to use.
Equipment Features
The training module of industrial engineering lab equipment mainly includes the following modules:
- Prony brake module: including Prony brake device, brake wheel, spring dynamometer, etc.
- Motor unit module: both with mounting bases
- Shaft and coupling module
- Bearing module with housing:
- Belt transmission module
- Chain transmission module
- Gear transmission module
- Belt transmission module
- Chain transmission module
- Lubrication module
- Bearing module
- Gasket and sealing ring module
- Clutch and brake module
- Ball screw and linear bearing module
- Vibration measurement module etc
Training projects
- Speed and torque measurement
- Mechanical efficiency
- Use of shafts and housed bearings
- Shaft alignment and use of elastic couplings
l- Belt installation and tension adjustment
l - Installation and adjustment of pulley
l - Belt transmission speed, torque and transmission ratio
l - Chain and sprocket installation and tension adjustment
l - Chain drive speed, torque and transmission ratio
l- Gear installation and adjustment, gear transmission speed, torque and transmission ratio, gear set
l - V-belt and serrated edge V-belt, V-belt drive
l - Ordinary synchronous belt and high torque synchronous belt drive
l - Multi-row roller chain and toothed chain drive, sprocket idler
l - Flange couplings, gear couplings, chain couplings and serpentine spring couplings, universal joints
l - Use of dial indicators
l - Lubrication of seated bearings and chains
l - Helical spur gear transmission
l - Worm gear drive
l - Gearbox
l - Sliding bearings, deep groove ball bearings, angular contact ball bearings, roller bearings, roller bearings
l - Bearing lubrication, gaskets, O-rings, lip seals, mechanical seals
l - Torque limiter
l - Electromagnetic clutch brake
l - Ball screw, ball screw lead and transmission ratio
l - The use of linear bearings
l - Use of vibrometer and vibration analysis and adjustment
