DLJS-X1806 Smart Manufacturing (photo frame) Automated Production Line System

Model: DLJS-X1806 Smart Manufacturing (photo frame) Automated Production Line System

1) Covering an area of 115.44 square meters (including channels), 15m × 8m.

2) Input power: three-phase four-wire system AC380V±10% 50HZ, single-phase 220V±10% 50H.

3) Working environment: temperature -10 °C - +40 °C, relative humidity <85% (25 °C), anhydrous beads condensation elevation <4000m.

4) Power control: automatic air switch on and off power supply, with over voltage protection, under voltage protection, over current protection, leakage protection system.

5) Air source, 3-7bar, 670L/min.

Inquire Now

DLJS-X1806 Smart Manufacturing (photo frame) Automated Production Line System

Details introduction

Overview

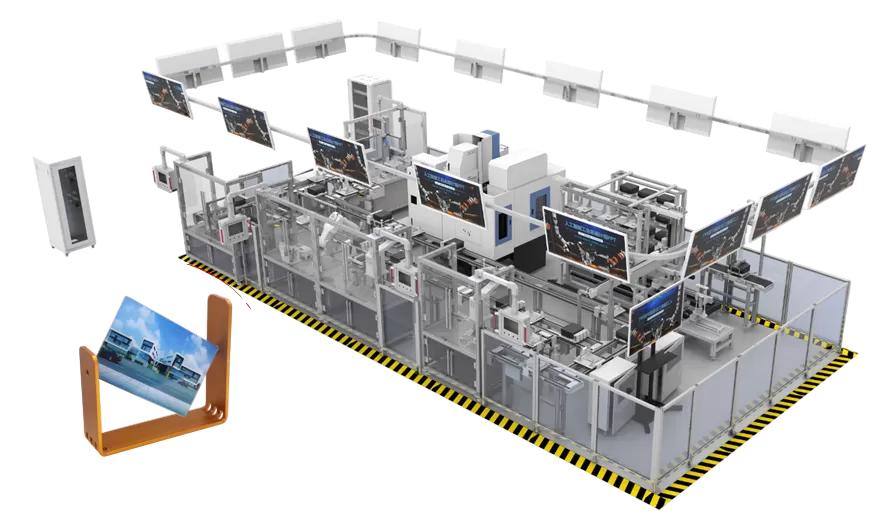

The DLJS-X1806 intelligent manufacturing production system is composed of auto-stereo warehouse, loading manipulator, distributing manipulator, automatic transmission line, 7-axis handling robot, CNC processing unit, marking unit, 3D printing unit, assembly & detecting unit, Packing unit, process monitoring display system, MES billboard, short-distance projector, feeding cabinet, PLC console, electric control cabinet, power distribution cabinet, etc.

This intelligent manufacturing production line involved in intelligent control technology, numerical control technology, industrial robotics, mechatronics, industrial engineering, computer application technology, software technology, automation technology, measurement technology and other fields of knowledge and skills.

Equipment Features

1) The equipment is complete, which can be applied to the production, application and training of different processes such as storage, machining, marking, 3D printing, assembly testing, packaging and transshipment of three kinds of photo frames.

2) The process unit has a clear distribution and modular design, which is convenient for observation, debugging and teaching guidance in the production process.

3) Flexible connection between processes, which can adapt to the simultaneous production of various products and the adjustment and switching between product processes.

4) Fully automatic control, automatic production and demonstration according to the set parameters.

5) MES intelligent management, which can comprehensively manage the materials, finished products, production, equipment, personnel, orders, etc.

6 practical production design, can be applied to the actual production of photo frames.

7) Factory layout, high security, humanized control station to ensure full monitoring of equipment movements.

Training projects

- Communication between the PLC and the remote I/O module;

- Modbus-Tcp communicates between PLC and four-axis industrial robot;

- TCP/IP communication between PLC and six-axis industrial robot;

- Modbus-rtu communicates between PLC and the servo drive;

- Profinet communication between PLC and RFID;

- Profinet communication between PLC and PLC;

- Communication between MES and PLC;
