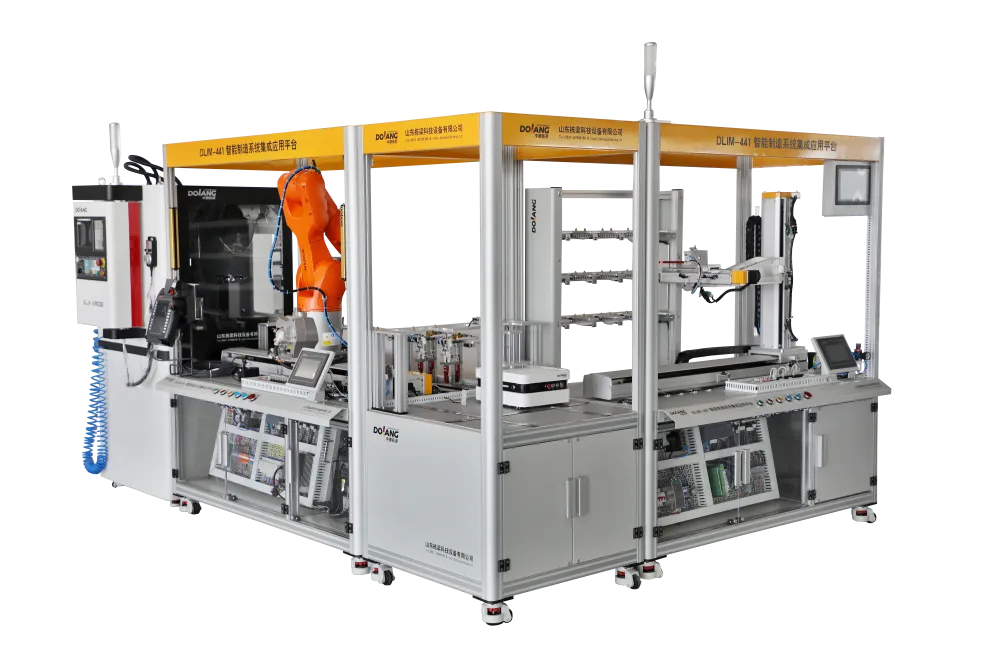

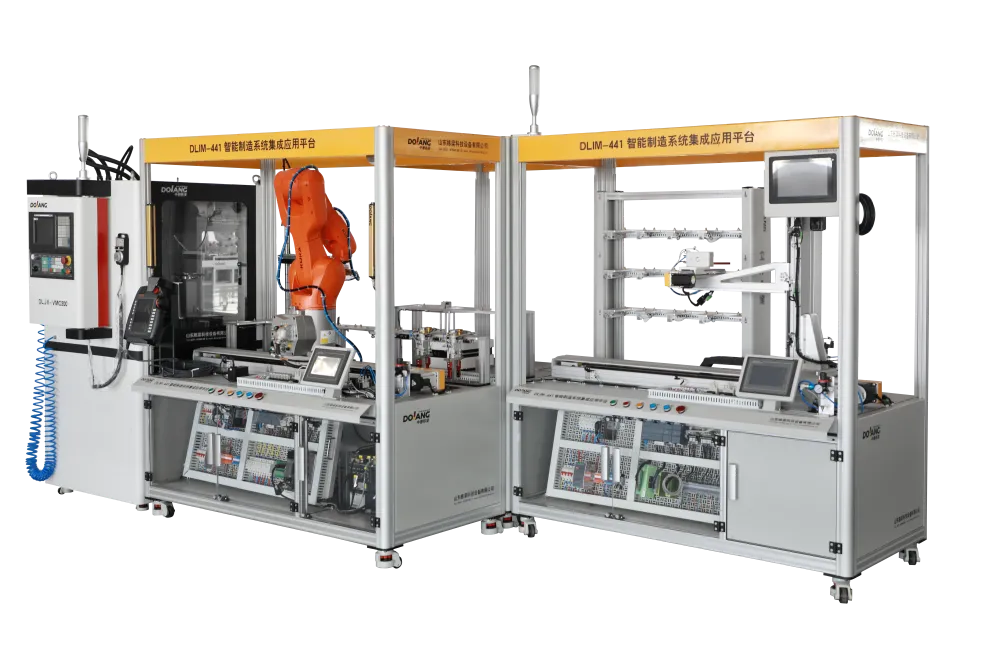

Intelligent Manufacturing Application System
Model: DLIM-441
1. Input power: single-phase three-wire system, AC220V±10%, 50HZ
2. Output power: DC24V
3. Machine capacity: about 8KW.
4. Working environment: temperature 0°C-40°C, relative humidity <85% (25°C), no condensation and altitude <4000m
5. Recommended working pressure: 0.3-0.7MPa.
6. Equipment area: about 7.5m2. The actual design size shall prevail.
7. Safety protection function: emergency stop button, limit device, processing protective cover, warning light, etc.
Details Introduction
Equipment Overview

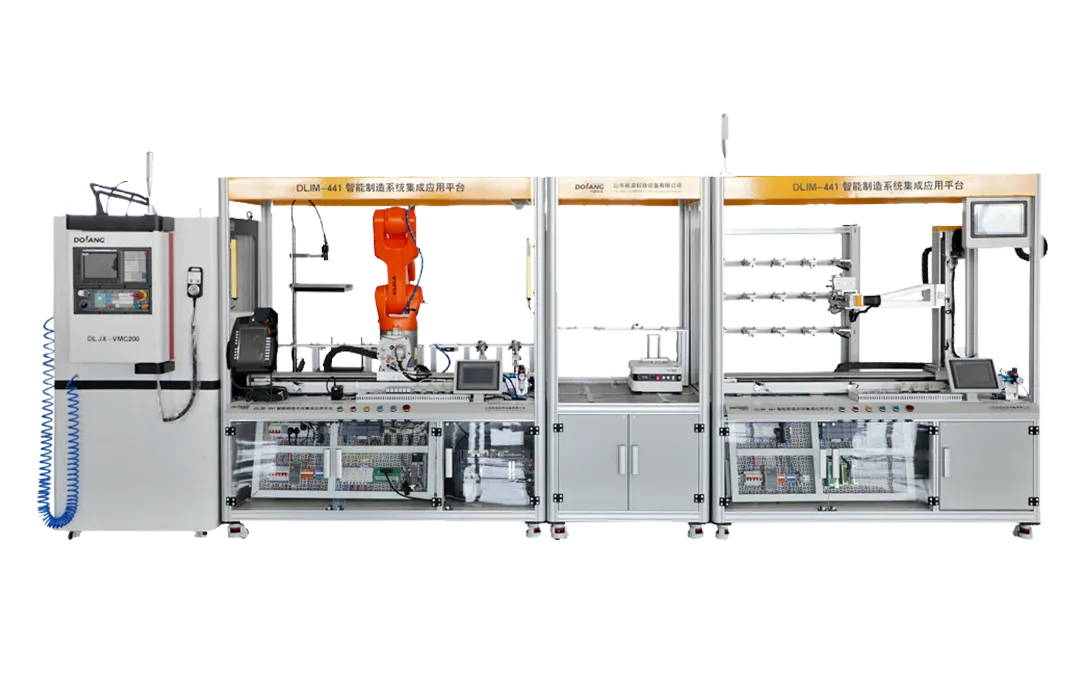

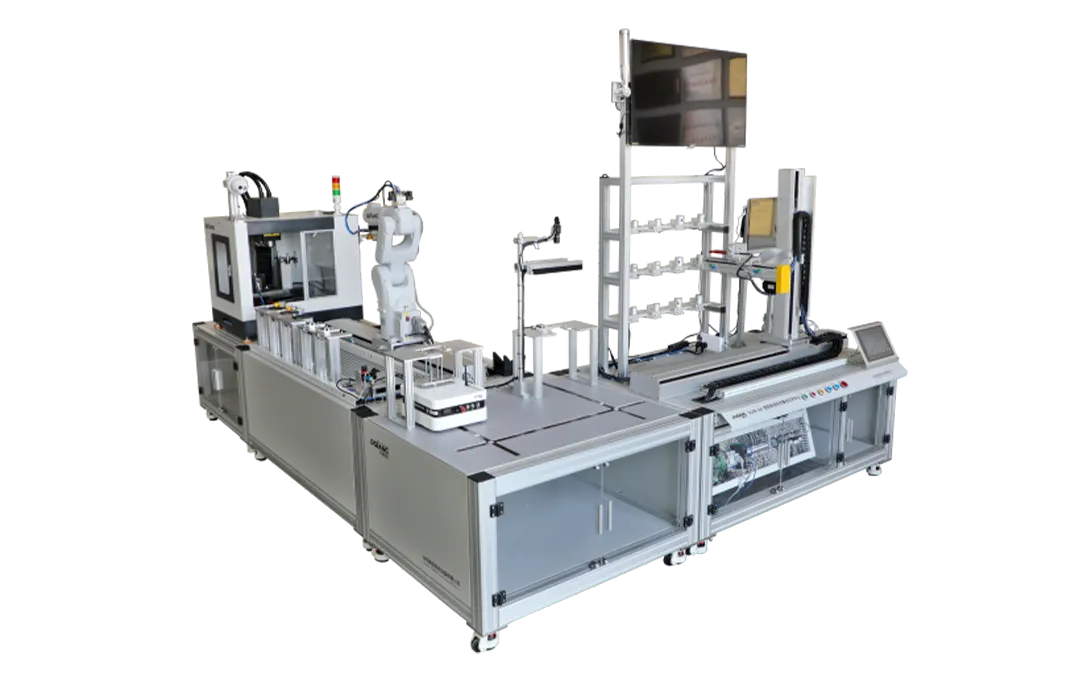

The Vocational training equipment DLIM-441 intelligent manufacturing system integrated application platform mainly includes the following modules: CNC machining unit, intelligent logistics unit, industrial robot unit, and intelligent storage unit. Different combinations such as one-shaped, L-shaped, T-shaped etc. can be made according to the site or customer needs.
Configuration
The Smart manufacturing training system is composed of CNC processing center, Corobot , RFID reader, Visual inspection system , Smart Logistics Station , Intelligent storage station , Electrical control system , Air supply system , Safe guard, Monitor system, Touch screen all-in-one, Local cloud platform, RFID power management system, Software, Accessories.
The technical engineering lab system is equipped with PLC programming software, touch screen configuration software, robot offline programming, factory automation simulation, MES manufacturing execution, etc. for students to perform programming and virtual simulation debugging
- PLC programming software---Siemens
- Robot offline programming software (optional)
The mechatronics training equipment is equipped with KUKA original offline programming software
- MES Manufacturing Execution Management System
- Factory Automation Virtual Simulation Software
Training Projects
- Installation and application of PLC programming software
- Installation and application of HMI touch screen programming software
- Installation, debugging, programming and application of the robot
- Installation, debugging and application of robot clamps
- Installation and application of robot offline programming software
- Application of CNC processing center assembly, maintenance and programming
- Application of online measurement system installation and programming
- Application of visual inspection technology
- Communication debugging and application of AGV trolley
- Application of bus communication technology
- Application of industrial automation network
- Application of PLC technology
- Application of motor drive control technology
- Application of motion control system
- Use of instruments
- Application of MES production management execution software
- Application of intelligent manufacturing virtual simulation technology
- Safe production, etc.
- Edge computing gateway application
