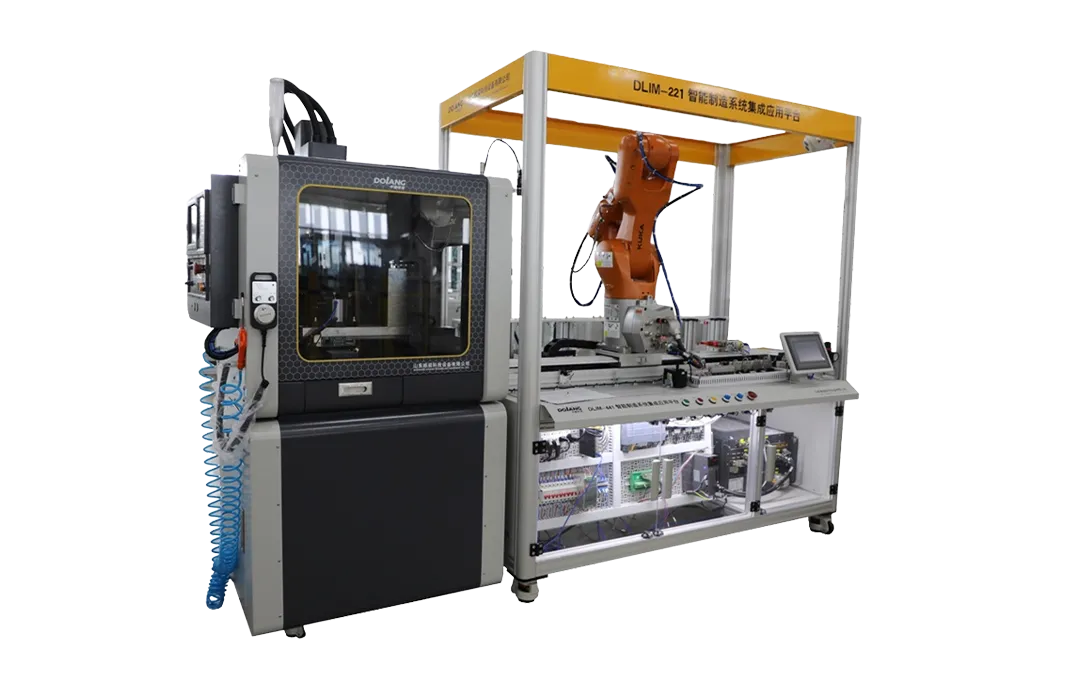

DLIM-221 Digital Intelligent Manufacturing Application Training Platform

Model: DLIM-221

1. Input power: single-phase three-wire system, AC220V±10%, 50HZ

2. Output power: DC24V

3. Machine capacity: about 6KW.

4. Working environment: temperature 0°C-40°C, relative humidity <85% (25°C), no condensation and altitude <4000m

5. Recommended working pressure: 0.3-0.7MPa.

6. Equipment area: about 7.5m2. The actual design size shall prevail.

7. Safety protection function: emergency stop button, limit device, processing protective cover, warning light, etc.

Inquire Now

DLIM-221 Digital Intelligent Manufacturing Application Training Platform

Details Introduction

Equipment Overview

DLIM-221intelligent manufacturing system integration application training equipment is adopted for Skills competition equipment, it is based on discrete digital manufacturing enterprises,

Deploy basic nodes of the Internet of Things such as smart cameras, online measurement, RFID, and network equipment at the data collection layer.

Introduce intelligent manufacturing equipment such as industrial robots and CNC machine tools at the equipment execution layer,

Introduce the digital twin and MES manufacturing execution system at the management control level.

At the same time, build an open information service platform, share data resources, and finally realize the automation, digitization, networking and intelligence of the entire system.

Equipment Composition

- CNC machining unit

- Industrial robot unit

- Electrical control system

- Air supply system

- Security protection

- Surveillance system

- Touch all-in-one PC and display

- Software (MES….)

- Education resources

Training Projects

-PLC programming software, HMI touch screen programming software installation and application
