Intelligent Manufacturing Application System
Model: DLIM-201
1. Input power: single-phase three-wire (220V±10% 50Hz)
2. Working environment: temperature -10°C~+40°C, relative temperature <85% (25°C) altitude <4000m
3. Device capacity: <2KVA
4. Certificate: CE, ISO
5. Warranty: 1 year
6. Application technology: Microelectronics, computer information technology, control technology, mechanical manufacturing and system engineering
Details Introduction
Equipment Overview

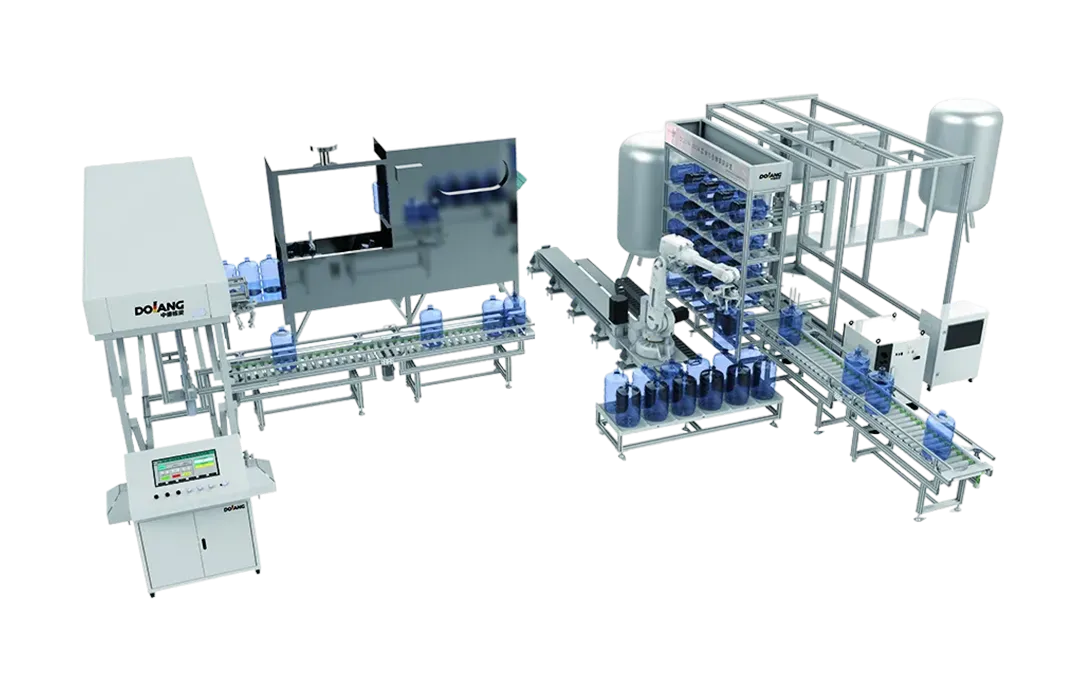

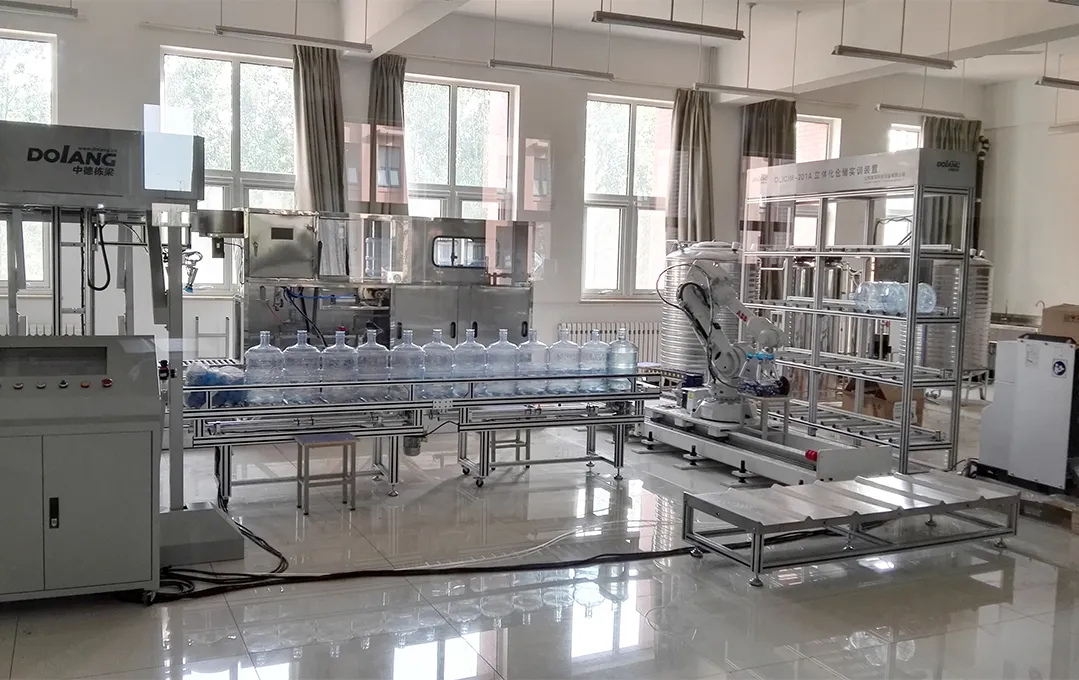

DLIM-201 pure water automatic production line system is one kind of TVET training equipment and physical water production system, the engineer training system composed of filling production and process control device, logistics palletizing training device, and three-dimensional storage training device.
The mechatronics training equipment can complete the production, filling, handling, palletizing, storage and other work of pure water, completely simulating the working process of industrial pure water production line, suit for training use of TVET schools including engineer university, vocation training center, training institution etc.
Basic Configuration
- Canned production process control training unit
1. Pure water production module
2. Canned modules
- Logistics palletizing training device
1. Palletizing module
2. Control unit modularization
3. Main control unit
4. Double suction cup fixture
- Three-dimensional storage training device
1. Three-dimensional storage system
2. Industrial handling robot
Controlled by ABB IRB2600-12/1.85 six-axis industrial robot, the goods are transported from the buffer zone to the entrance of the roadway stacker.
3. Control unit modularization
4. Robot fixture:
Double suction cup fixture: Equipped with 2 sets of high vacuum suction cups and vacuum generators to ensure sufficient suction
5. Auxiliary equipment (silent air compressor)
Training Projects
- Handling robot programming operations
- Handling robot position control test
- Handling robot precision adjustment
- Handling robot offline simulation
- Handling robot offline programming
- Laneway robot programming operation
- Laneway robot position control test
- Laneway robot Precision adjustment
- Laneway robot offline simulation
- Laneway robot offline programming
- Cargo handling process programming and operation
- Cargo storage process programming and operation
- Logistics warehousing system programming and operation
