DLDS-124 Digital Twin Technology Application System

Share:

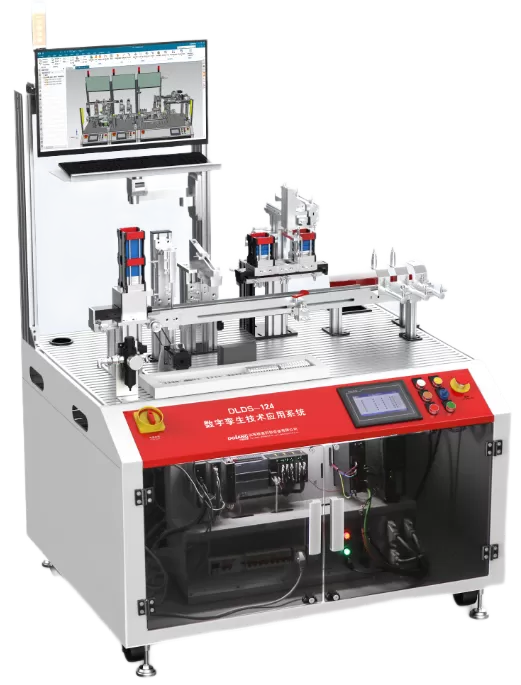

Model: DLDS-124 Digital Twin Technology Application System

1.Input power: single-phase three-wire, AC220V±10%, 50HZ 50HZ

2. Output power: DC24V 5A

3. Machine capacity: about 1.0 KW

4. Working environment: temperature 0℃-40℃, relative humidity <85% (25℃), no condensation, altitude <4000m

5. Recommended working air pressure: 0.4 -0.6 MPa .

6. Equipment footprint: 1200*950*1780mm (length*width*height), subject to actual design dimensions.


DLDS-124 Digital Twin Technology Application System

Details introduction

Overview

DLDS-124 Digital twins Technology Application Training System make full use of data such as physical models, sensor updates, and operation history, integrate multi-disciplinary, multi-physical, multi-scale, and multi-probability simulation processes, and complete mapping in virtual space to reflect the entire life cycle of the corresponding physical equipment. Digital twins are a concept that transcends reality and can be viewed as a digital mapping system of one or more important, interdependent equipment systems..

The training model suit for vocation school, university, polytechnics related training course use.


Configuration

DLDS-124 digital twin technology application training system includes a material box feeding unit, a height detection unit, a steel ball feeding unit, a material color detection unit, a material cover assembly unit, a storage unit, and a transportation unit. The teaching system can complete the process of feeding, testing, filling, assembly, testing, and warehousing, and realize virtual-real linkage through digital twin software.

Training projects

- Detection technology: Students can learn about various sensors on this equipment and master how to use them.

- Control system: Students can learn circuit principle analysis and equipment circuit analysis methods on this equipment.

- Siemens PLC technology: Students can practice PLC wiring, programming, and debugging on this equipment.

- Configuration technology: Students can practice programming with Siemens configuration software and communication between configuration software and PLC on this device.

- System maintenance and fault detection technology: Trainees can practice the content and methods of daily equipment maintenance as well as common fault analysis and troubleshooting methods on this equipment .

- Digital twin technology: digital model construction and layout, virtual debugging, virtual production line rhythm optimization, etc.
