DLCIM-01 Computer Integrated Manufacturing Training System

Model: DLCIM-01

1. AC power supply: single-phase AC220V±10% 50Hz

2. Temperature: -10℃～40℃; ambient humidity: ≤90% (25℃)

3. Dimensions: 2810mm×1500mm×2100mm (length×width×height)

4. Machine capacity: ≤3KVA

5. Control system: Siemens S7-1200 series PLC

6. Industrial robot: MZ04( brand can be optional)

Inquire Now

DLCIM-01 Computer Integrated Manufacturing Training System

Details Introduction

Equipment Overview

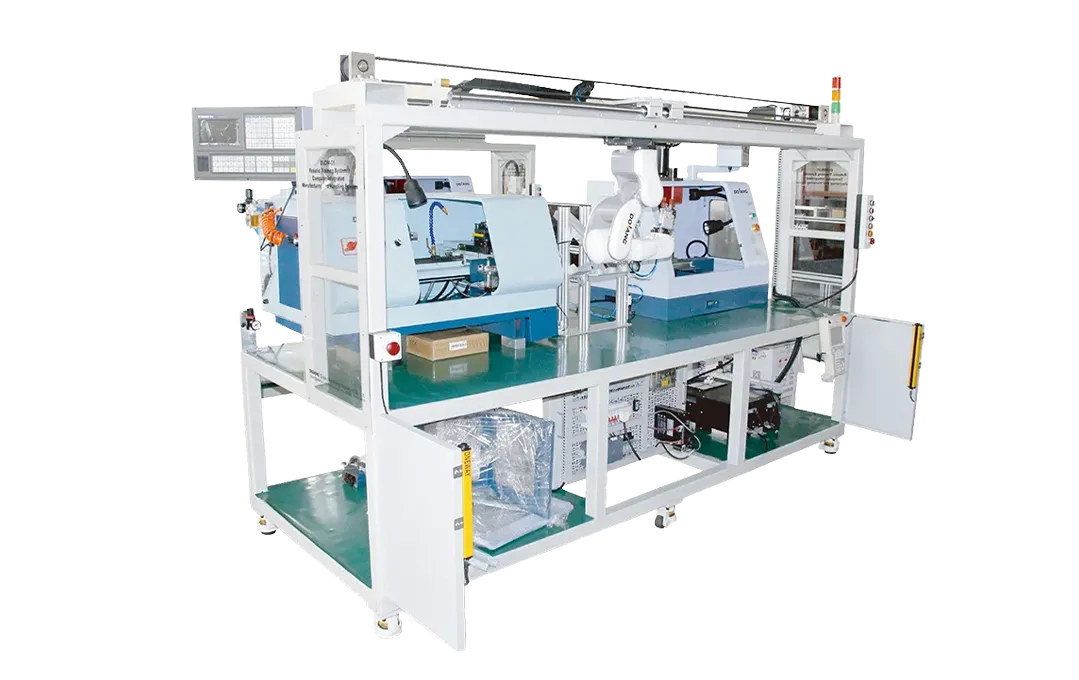

DLCIM-01 CIMS training platform takes industrial robotics as the core, The vocational training equipmentcombines programmable controllers, servo motors, sensors, and through signal acquisition, PLC programming, and industrial robot programming, performs more complex switch control, position control and Sequential logic control, so as to realize automatic control of parts processing, assembly and storage.

The hardware part of the industrial robotics training equipment system mainly includes storage unit, CNC lathe, CNC milling machine, industrial robot unit, PLC module, servo control module, power supply module

The training projects covers: CIM training system application, Industrial robot programming, CNC machine tool programming, motor drive, pneumatic, PLC programming, servo system parameter setting, sensor application, and many other application technologies.

Equipment Composition

Basic configuration

The technical training equipment is mainly composed of industrial robot, PLC, servo drive module, transfer module, CNC lathe, CNC milling machine, handling unit, feeding detection storage unit and so on. The combination of each module and other equipment can complete different training projects, and the scalability is strong.

Training Objects

- Pneumatic technology

- Sensor Technology Experiment

- Electrical Control Experiment

- Robotics work experiment

- CNC machine tool programming, debugging, simulation and other experiments

- Servo motor experiment

- Robot programming training;

- CNC machine tool debugging and principle;

- CNC comprehensive test bench connection and debugging training;

- Basic connection of CNC device;

- Understanding and connection of CNC system interface;
